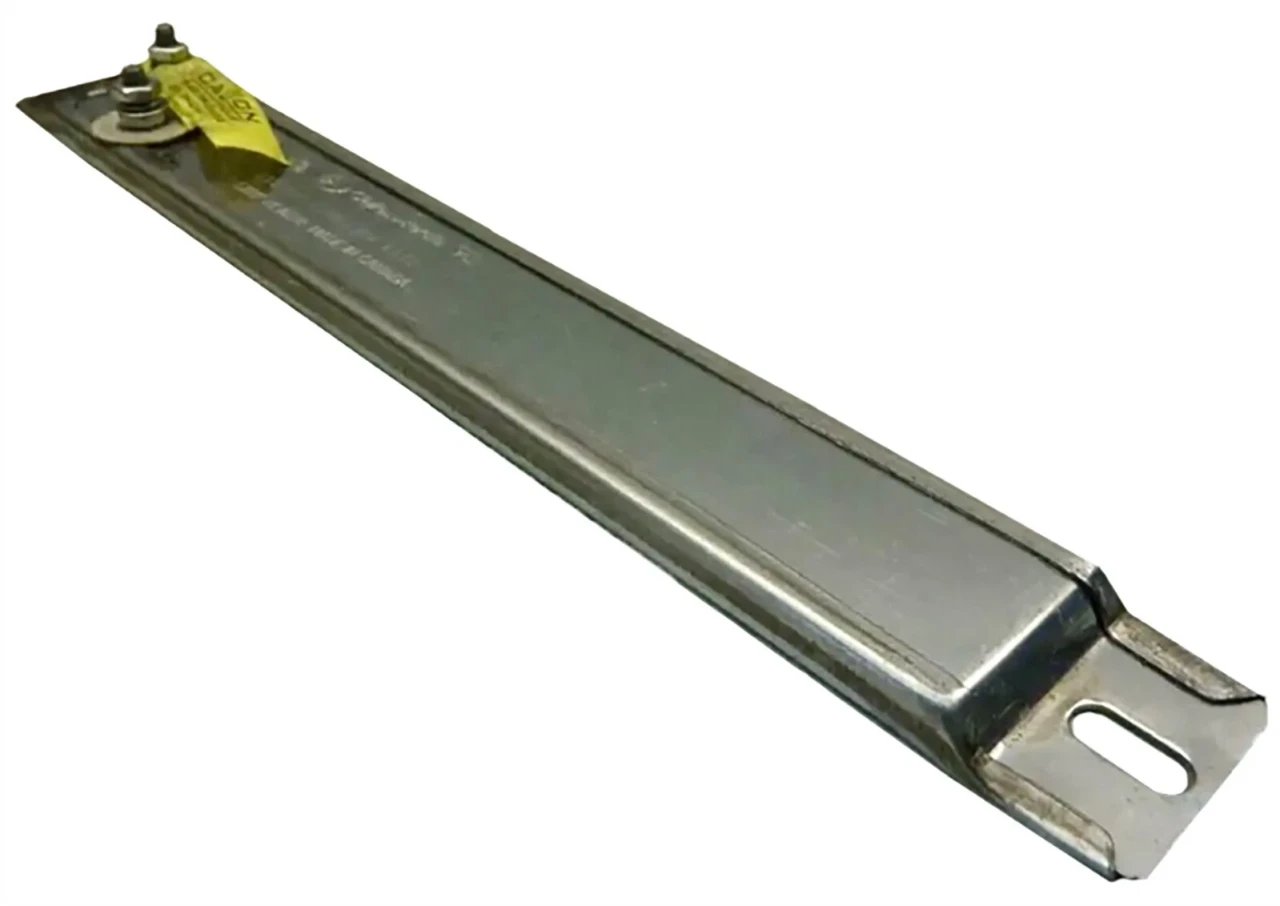

Caloritech 11.75" 120V 250W SS Series Strip Heater (SS1141)
KEY FEATURES AND BENEFITS:
Efficient Electric Radiant Heat: Provides uniform heat distribution, minimizing hot spots and ensuring consistent temperature across the heated surface or air stream, leading to improved process control and product quality.
Versatile Application Range: Suitable for a broad spectrum of uses including surface heating for platens, dies, and molds, process air heating in ovens and drying cabinets, and effective winterization for equipment and control panels, offering broad utility.
Robust Construction: Features an aluminized steel sheath designed to withstand maximum sheath temperatures up to 1000°F (538°C), ensuring long-term performance and reliability in challenging industrial environments.
Easy Integration and Mounting: Equipped with slotted mounting tabs for convenient surface installation, allowing for lineal expansion during heating and simplifying setup in various configurations.
Length: 11.75 inches (298 mm)
Width: 1.5 inches
Height: 1.5 inches
Sheath Material: Aluminized Steel
Watt Density: 8.6 Watts/in² (1.3 Watts/cm²)
Heat Output: 853 Btu/hour
Terminals: Two offset bolt-type terminals
Mounting Type: Surface Mount
Slotted Hole Length: 5/8 inch
Slotted Hole Width: 9/32 inch
Screw Size: #10-32
Preparation: Ensure the mounting surface is clean, smooth, and made of metal to facilitate optimal heat transfer.
Mounting: Securely clamp the heater along its entire length to the mounting surface using appropriate fasteners. The terminal end should be fixed firmly, while the opposite end should be left slightly looser to allow for thermal expansion during operation.
Wiring: Connect the 120V power supply to the two offset bolt-type terminals. Ensure all electrical connections are secure and comply with local electrical codes and safety standards.
Temperature Control (Optional): If precise temperature regulation is required, integrate a Caloritech CPA or CPB control panel (purchased separately) into the electrical circuit. Follow the control panel's instructions for wiring and calibration.
Operation: Once properly installed and wired, apply power to the heater. Monitor the initial operation to ensure proper functioning and heat distribution.
Maintenance: Periodically inspect the heater and connections for any signs of wear, damage, or loose connections. Ensure the mounting remains secure.
BENEFITS OF USING CALORITECH 11.75" 120V 250W SS SERIES STRIP HEATER (SS1141):
Consistent Heating: Provides consistent and controlled heating for improved process outcomes.
Reduced Downtime: Reduces equipment downtime by offering effective moisture and cold protection.
Versatile Utility: Enhances operational flexibility due to its adaptability across various applications.
Durability: Offers a long operational lifespan due to robust construction.
Aluminized steel sheath: Construction for high-temperature resistance.
High-temperature capability: Designed for maximum sheath temperatures of 1000°F (538°C).
Offset terminals: Offset bolt-type terminals for straightforward electrical connections.
Thermal expansion accommodation: Integrated slotted mounting tabs to accommodate thermal expansion.
120V compatibility: Suitable for operation on 120V electrical systems.
Precise heat output: Generates a precise heat output of 853 Btu/hour.
Model identification: Identified by the model number SS1141 for easy reference.
Product identification
- Brand: Caloritech
- Model / MPN: SS1141
