Caloritech SS1001 120V 125W Strip Heater, 5.5 Inch

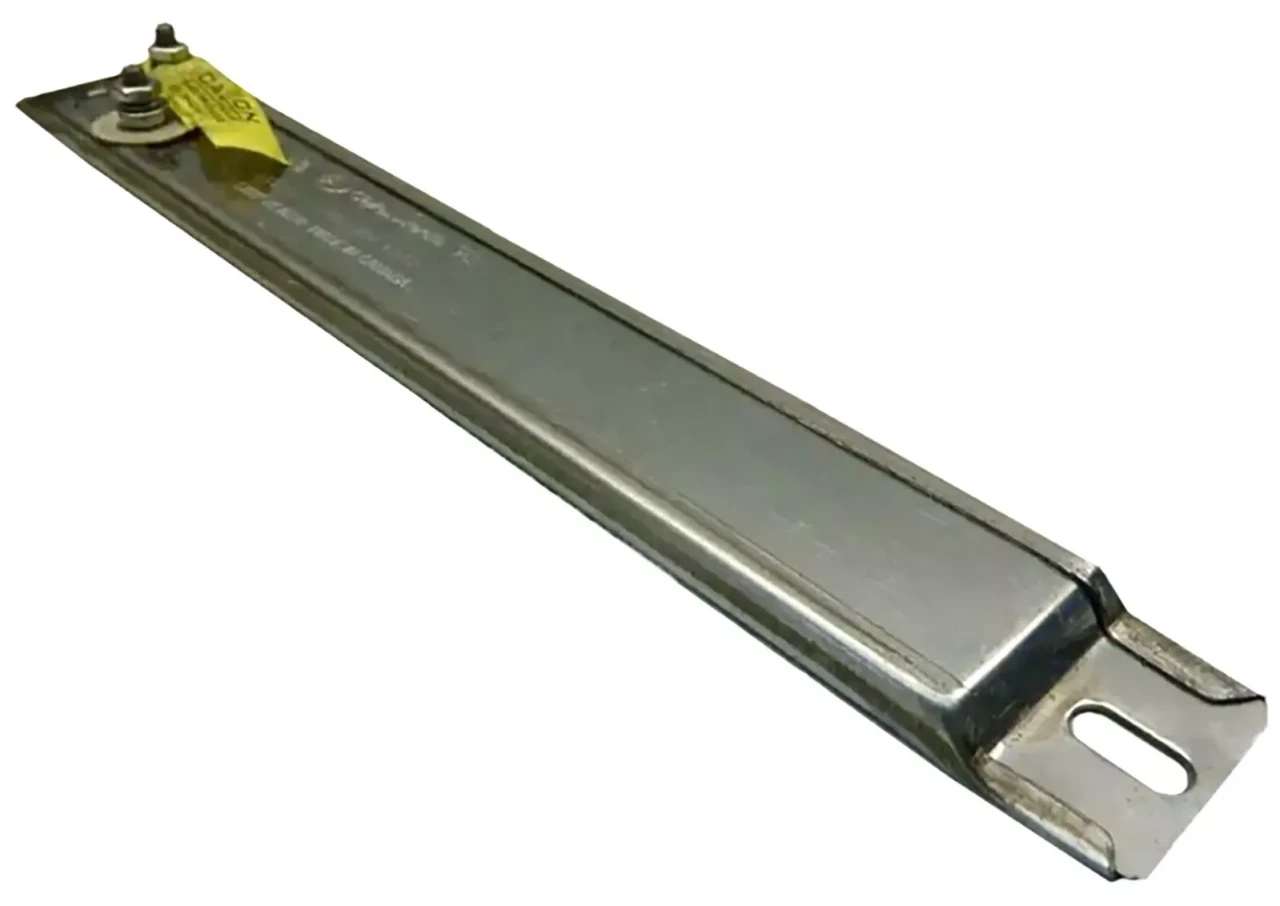

The Caloritech SS1001 is a 5.5 inch industrial strip heater rated at 120V and 125W. Its offset bolt terminals and slotted mounting arrangement are useful replacement checks; matching wattage alone does not establish mechanical or thermal compatibility.
Specifications and included details
- SS1001: listed 5.5 inch length, 120V and 125W.
- Single-phase configuration with two offset bolt-type terminals.
- Aluminized steel sheath.
- Slotted mounting holes are listed as 5/8 inch long by 9/32 inch wide.
- An adjustable thermostat is not listed as included.
Before ordering
Confirm the dimensioned drawing, terminal spacing, mounting contact and required thermal controls with the manufacturer's instructions. The supplied height field has no resolved sheath-versus-terminal scope and should not guide clearance. Select electrical protection and control appropriate to the installation; no plug-in appliance configuration is established.
Product questions and answers
Is SS1001 a complete plug-in room heater?
No complete appliance, plug or room-heating control is listed. This is a component strip heater requiring an appropriate installation.
Can I replace a 125W heater by matching power alone?
No. Voltage, length, mounting and terminal geometry, thermal contact and the process requirements must also match.
Do slotted holes mean mounting screws are supplied?
No fastener inventory is itemized. The hole dimensions describe mounting geometry, not included screws or a complete installation kit.
