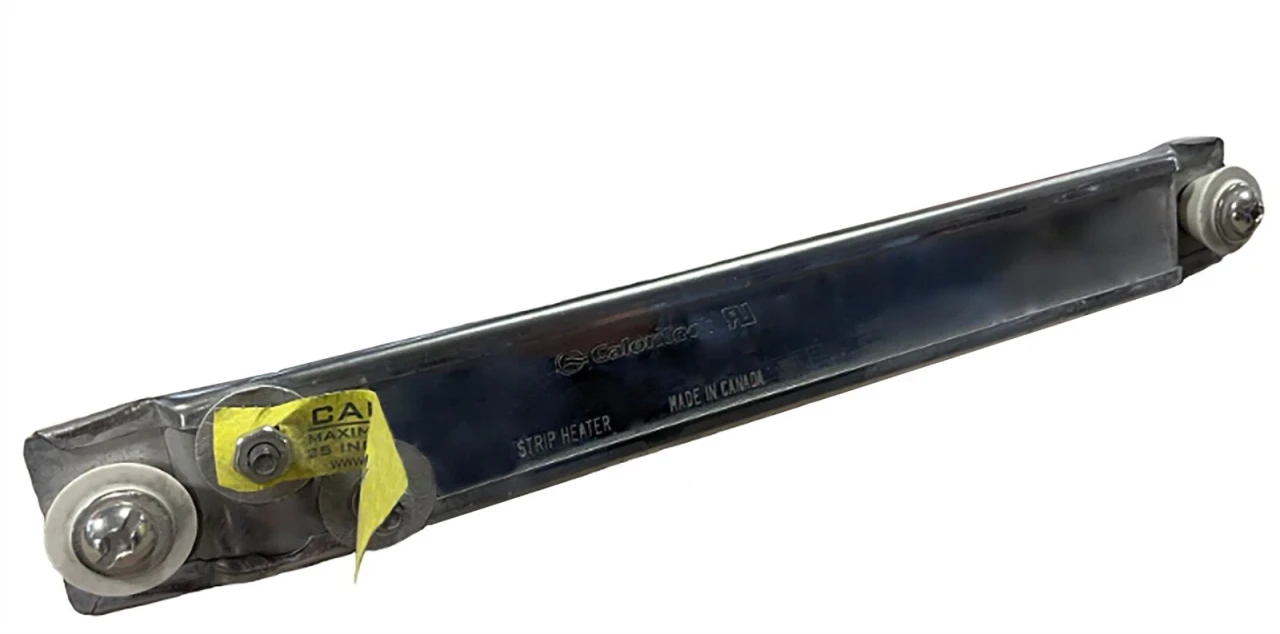

Caloritech 11.75" 120V 250W 1000F SD Series Strip Heater (SD1061)
The Caloritech 11.75" 120V 250W 1000F SD Series Strip Heater (SD1061) is a versatile and economical heating element designed for a wide range of industrial applications. Engineered for consistent performance, this strip heater provides reliable and uniform heat distribution, making it an essential component for critical thermal processes. Its robust construction ensures longevity and efficient operation in demanding environments, offering a practical solution for surface heating, process air heating, and winterizing requirements across various industries.
KEY FEATURES AND BENEFITS:
Efficient Heat Generation: Delivers 250 watts of power at 120V, capable of reaching a maximum sheath temperature of 1000°F (538°C), ensuring effective heating for various industrial processes.
Uniform Heat Distribution: Features uniformly coiled and spaced high-temperature alloy resistance wire embedded in a refractory material, promoting even heat transfer across the entire surface.
Corrosion Resistance: Constructed with an aluminized steel sheath, which provides excellent corrosion resistance and an attractive finish, suitable for continuous operation up to 1000°F.
Easy Installation: Designed for simple surface mounting with slotted tabs that accommodate thermal expansion, simplifying integration into existing or new systems.
Broad Application Suitability: Ideal for heating platens, dies, molds, and tanks, as well as for process air heating in drying cabinets and ovens, and for crucial winterizing tasks.
Model Number: SD1061
Dimensions: 11.75 inches (Length) x 1.5 inches (Width) x 1.5 inches (Height)
Maximum Sheath Temperature: 1000°F (538°C)
Sheath Material: Aluminized Steel
Terminals: Two bolt terminals
Mounting: Slotted mounting tabs
Control: Standard without adjustable thermostat
Mounting: Securely attach the Caloritech SD1061 strip heater to the desired surface using the integrated slotted mounting tabs. Ensure the mounting allows for linear expansion during operation.
Electrical Connection: Connect the two bolt terminals of the strip heater to a 120V power source. It is designed for hardwired installation. For applications where voltage to ground exceeds 300V, ensure secondary insulators are correctly installed as per safety guidelines.
Temperature Control (Optional): While the heater comes without an integrated thermostat, for controlled heating, integrate it with a compatible external temperature control device. This can be a Caloritech CPA or CPB control panel, a mechanical thermostat, or bi-metal thermostats, which need to be purchased separately.
Power On: Once properly mounted and wired, apply power to the heater. Monitor the initial operation to ensure it is heating as expected.
Maintenance: Regularly inspect the heater and connections for any signs of wear or damage. Ensure the area around the heater remains clear to prevent obstruction of heat dissipation.
BENEFITS OF USING CALORITECH 11.75" 120V 250W 1000F SD SERIES STRIP HEATER (SD1061):
Provides an economical solution for diverse industrial heating requirements.
Offers dependable performance for continuous operation in demanding environments.
Contributes to process efficiency by maintaining precise temperatures.
Helps in preventing freezing and condensation in various critical equipment.
Suitable for integrating into new equipment designs or upgrading existing systems.
Reduces downtime by ensuring reliable and consistent heat output.
Compact and streamline profile for integration into tight spaces.
Engineered with internal refractory material for optimal thermal insulation.
Resistant to vibration due to high-pressure compression during manufacturing.
Allows for simple electrical hook-up via standard bolt terminals.
Designed to withstand elevated temperatures, making it suitable for a 1000°F max sheath temp.
Offers flexibility for integration into automated temperature control systems (with external controller).
Built to industrial standards, ensuring long-term operational stability.
Product identification
- Brand: Caloritech
- Model / MPN: SD1061
