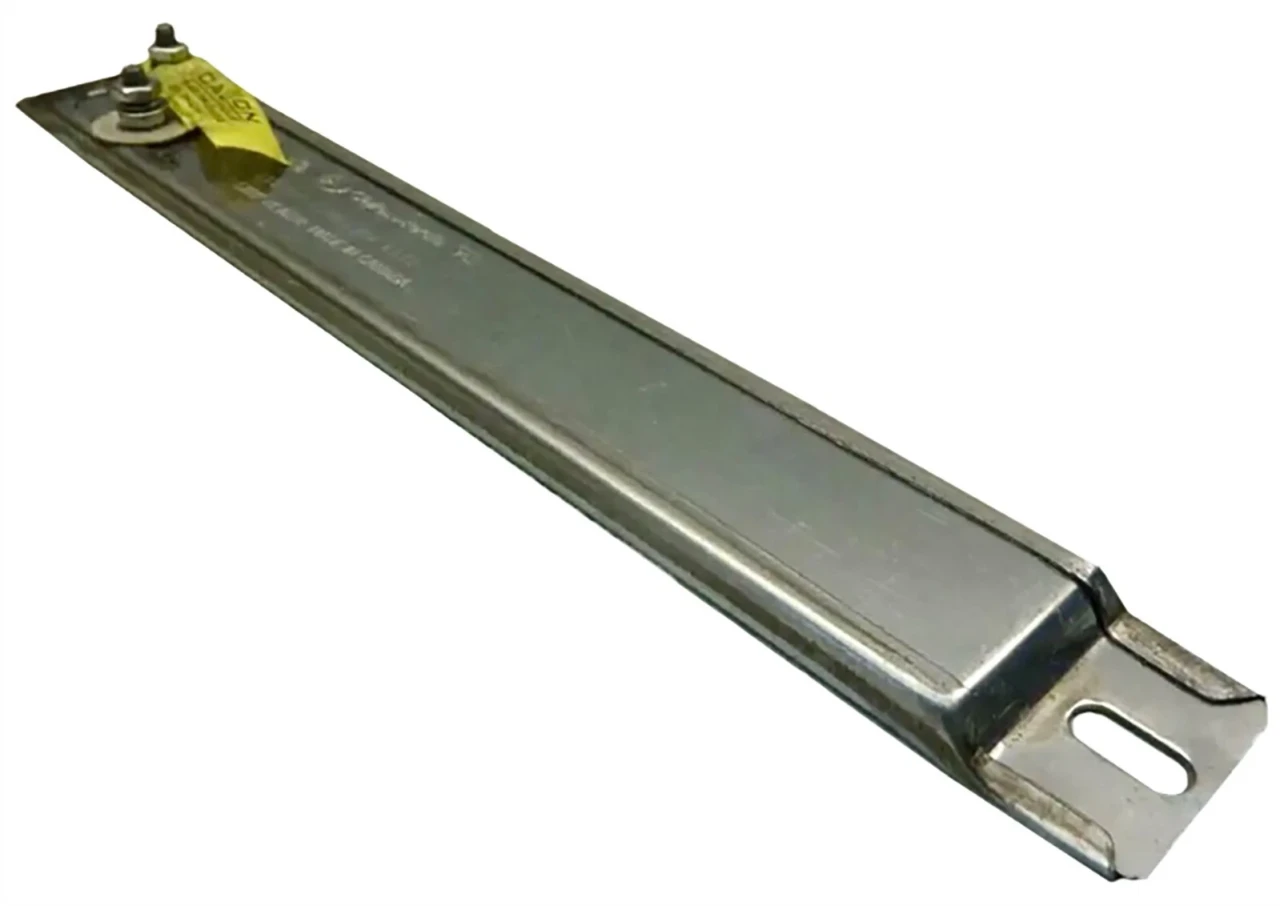

Caloritech SS1261 120V 500W 17.75-Inch Strip Heater
The 17.75-inch SS1261 is the 120V, 500W Caloritech SS strip heater in this listing. Its listed current is 4.17A. This distinguishes it from a same-length, same-wattage 240V element: the heating requirement and available electrical supply must both match the selected model.
Specifications and included details
- 120V AC and 500W electrical rating; listed current is 4.17A.
- 17.75-inch length with an aluminized-steel sheath.
- Listed heat output of 1706 BTU/hour and maximum sheath temperature of 1000°F (538°C).
- Two offset bolt-type terminals; mounting slots measure 5/8 x 9/32 inch.
Before ordering
Verify the SS1261 rating against the circuit and original heater nameplate, then compare the manufacturer's drawing for mounting positions and terminal clearance. Qualified installation and suitable external temperature control are required for the intended process. Do not select circuit protection or wiring from the current figure alone.
Product questions and answers
How does SS1261 differ from the 500W SS1272?
SS1261 is listed at 120V and 4.17A; SS1272 is the 240V model. Matching 500W and 17.75-inch length does not make the two voltage ratings interchangeable.
Is the 4.17A listing a complete circuit specification?
No. It is the listed heater current. The installer still needs to determine the appropriate circuit, protection, wiring and control equipment for the actual installation.
Does SS1261 include a thermostat to regulate a platen?
The heater listing references separate external temperature controls. Confirm the necessary controller and sensing arrangement for the platen; do not assume a thermostat or a regulated surface temperature is included.
