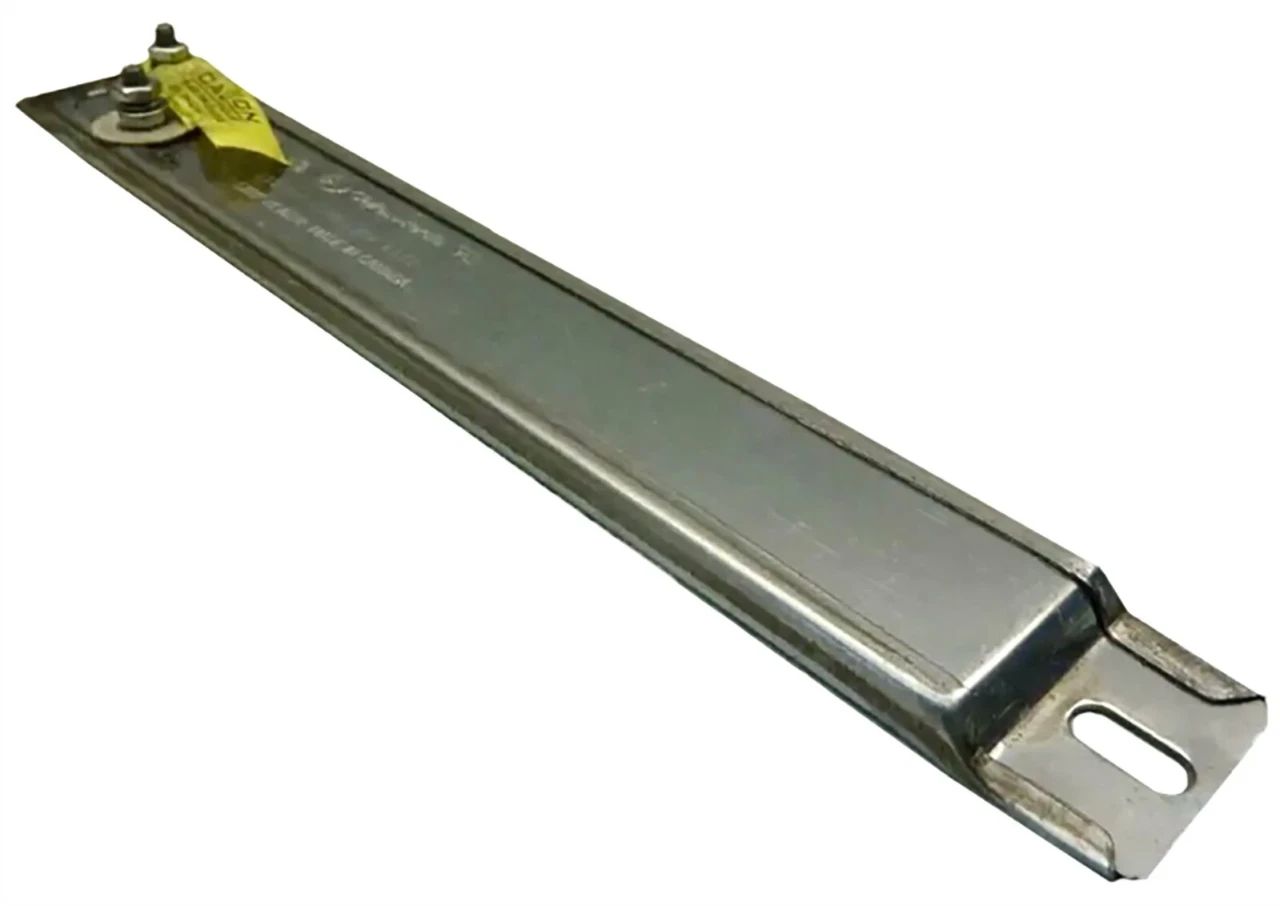

Caloritech 11.75" 240V 500W 1200F SS Series Strip Heater (SS2172)
KEY FEATURES AND BENEFITS:
Corrosion Resistance: The stainless steel sheath construction offers excellent protection against corrosion, extending the heater's lifespan even in challenging industrial environments.
Wide Application Suitability: Versatile design allows its use in a broad spectrum of industrial applications, from surface heating and air processes to moisture prevention in critical equipment.
Reduced Downtime: Its robust construction and reliable performance contribute to less frequent replacement and maintenance needs, supporting continuous operations.
Model Number: SS2172
Length: 11.75 inches
Maximum Exposure Temperature: 1200°F (649°C)
Sheath Material: Stainless Steel
Terminals: Two offset bolt-type terminals
Watt Density: 17.2 Watts/in²
Product Weight: 6.0000 lb
Heat Output: 1,706 Btu/hour
Phase: Single Phase
Preparation: Ensure the power supply is off and secured to prevent accidental activation. Verify that the electrical circuit matches the heater's voltage (240V) and can support its wattage (500W).
Mounting: Position the strip heater in the desired location. Utilize the slotted mounting tabs to secure the heater to the surface. Ensure the mounting allows for the heater's lineal expansion during operation. Consider using surface clamps (SA1044) for broad surface mounting if required.
Wiring: Connect the 240V power supply to the two offset bolt-type terminals on the heater. Ensure all electrical connections are secure and comply with local electrical codes. For voltages to ground exceeding 300V, use secondary insulators (SA1014 or SA1024). For electrical shock protection, consider using ceramic post terminal covers (BA0002).
Temperature Control (Optional): If precise temperature control is needed, integrate a Caloritech CPA or CPB control panel (sold separately) into the electrical circuit as per the control panel's instructions. This will allow for regulation of the heater's output.
Power On and Monitor: Once fully installed and wired, restore power to the circuit. Monitor the heater's initial operation to ensure it is functioning correctly and reaching the desired temperature.
Maintenance: Regularly inspect the heater and its connections for any signs of wear or damage. Disconnect power before performing any inspection or maintenance.
BENEFITS OF USING CALORITECH 11.75" 240V 500W 1200F SS SERIES STRIP HEATER (SS2172):
Corrosion Resistance: Durable stainless steel construction extends product life in corrosive and high-temperature environments.
Low Maintenance Needs: Rigid and robust design reduces the need for frequent servicing, promoting continuous operation.
Stainless steel sheath provides protection for high-temperature and corrosive conditions.
Uniformly coiled resistance wire ensures even heat distribution across the heater's surface.
Resistance wire embedded in a refractory material for improved heat transfer and vibration resistance.
Final heat treatment process solidifies the refractory material for heavy-duty performance.
Slotted mounting tabs accommodate lineal expansion, protecting the unit and mounting.
Hardwired connectivity for secure and stable electrical integration.
Designed for single-phase electrical systems.
Can be paired with external control panels for adjustable temperature regulation.
Features two offset bolt-type terminals for straightforward electrical connections.
Product identification
- Brand: Caloritech
- Model / MPN: SS2172
