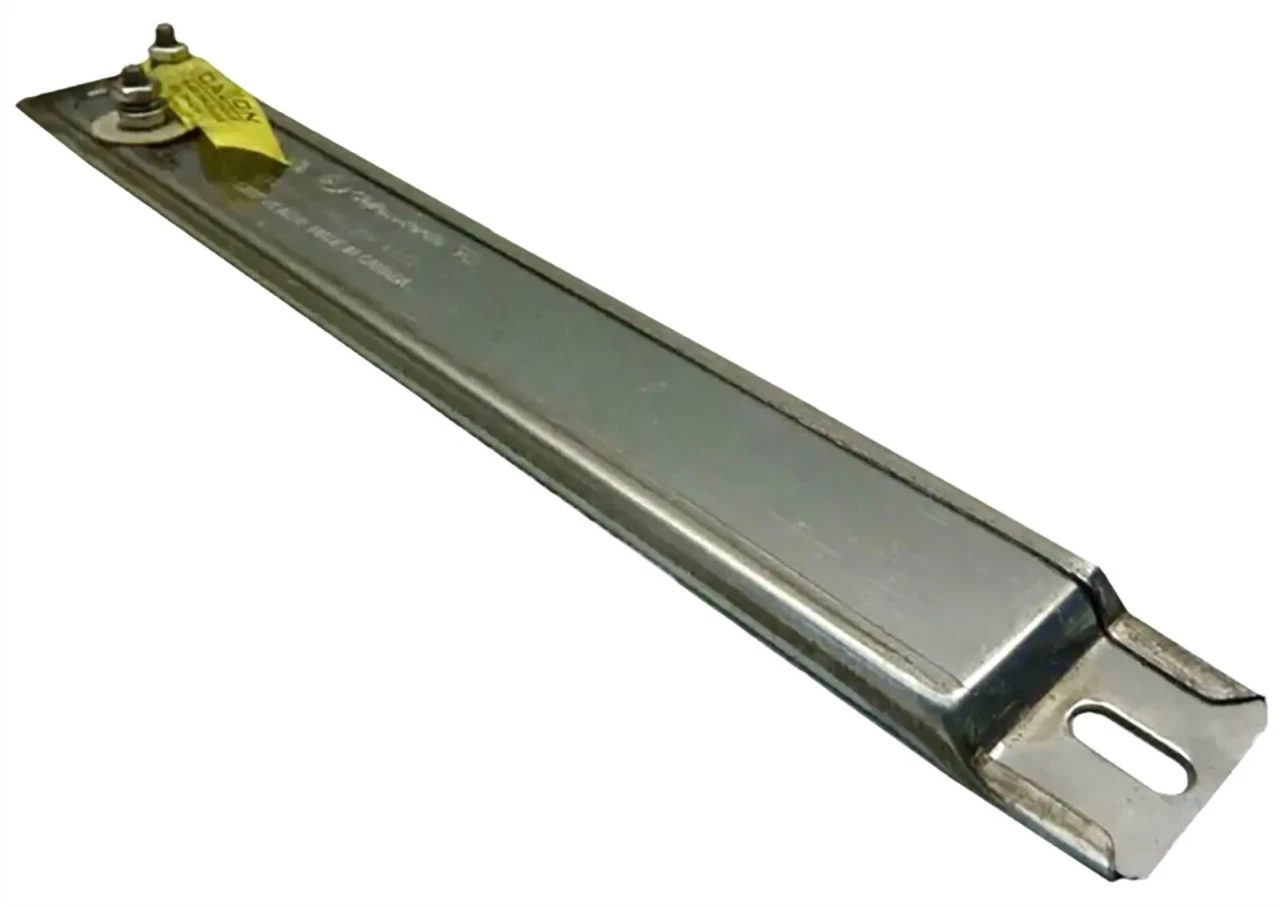

Caloritech 14" 240V 300W SS Series Strip Heater (SS1192)
KEY FEATURES AND BENEFITS:
Efficient Heat Transfer: Features a high-temperature alloy resistance wire uniformly coiled and embedded in a special refractory material, ensuring excellent heat transfer to the sheath and subsequently to the heated surface or air.
Broad Application Versatility: Suitable for diverse tasks including surface heating of platens, dies, molds, and tanks, as well as process air heating for drying cabinets and ovens, and winterizing industrial equipment.
Reliable Construction: Encased in an aluminized steel sheath, compressed under high pressure for durability and resistance to corrosion, ensuring a long operational life.
Simplified Integration: Equipped with two offset bolt-type terminals at one end and slotted holes for straightforward surface mounting.
Length: 14 inches (356 mm)
Width: 1-1/2 inches
Watt Density: 8 W/in²
Sheath Material: Aluminized Steel
Terminals: Two offset bolt-type
Screw Size: #10-32
Slotted Hole Dimensions: 5/8" L x 9/32" W
Heat Output: 1,023 Btu/hour
Mounting: Securely mount the Caloritech SS1192 strip heater to the desired surface using the provided slotted holes and appropriate fasteners. Ensure the heater is clamped along its entire length for optimal surface contact and heat transfer.
Electrical Connection: Connect the two offset bolt-type terminals to your power source (240V) according to local electrical codes and safety guidelines. If using a control panel, connect the heater leads to the designated output terminals of the controller.
Temperature Control (Optional): For precise temperature management, integrate the heater with a suitable control device such as a heating control panel, mechanical thermostat, or a bi-metal thermostat installed on the heater's surface. Ensure the thermostat's rating matches the heater's electrical specifications.
Power On: Once all connections are secure and verified, apply power to the heater circuit. Monitor the initial operation to ensure proper heating and functionality.
Maintenance: Regularly inspect the heater and its connections for any signs of wear, damage, or loose connections. Keep the heater surface clean for efficient operation.
BENEFITS OF USING CALORITECH 14" 240V 300W SS SERIES STRIP HEATER (SS1192):
Provides consistent and uniform heat distribution, leading to improved process efficiency.
Reduces downtime by offering a reliable heating solution for critical industrial equipment.
Extends the lifespan of machinery and components by preventing moisture accumulation and maintaining optimal operating temperatures.
Offers a cost-effective heating alternative for various industrial applications.
Integrated resistance wire delivers consistent and efficient heat generation.
Special refractory insulation enhances heat transfer and electrical isolation.
High-pressure compression ensures optimal thermal conductivity and durability.
Pre-drilled slotted mounting holes simplify installation on flat surfaces.
Offset terminal layout allows flexible wiring configurations.
Capable of operating at high temperatures up to 1000°F (538°C).
Adaptable for lower voltage applications with reduced wattage output.
Suitable for OEM integration into equipment such as HVAC systems and lab apparatus.
Product identification
- Brand: Caloritech
- Model / MPN: SS1192
