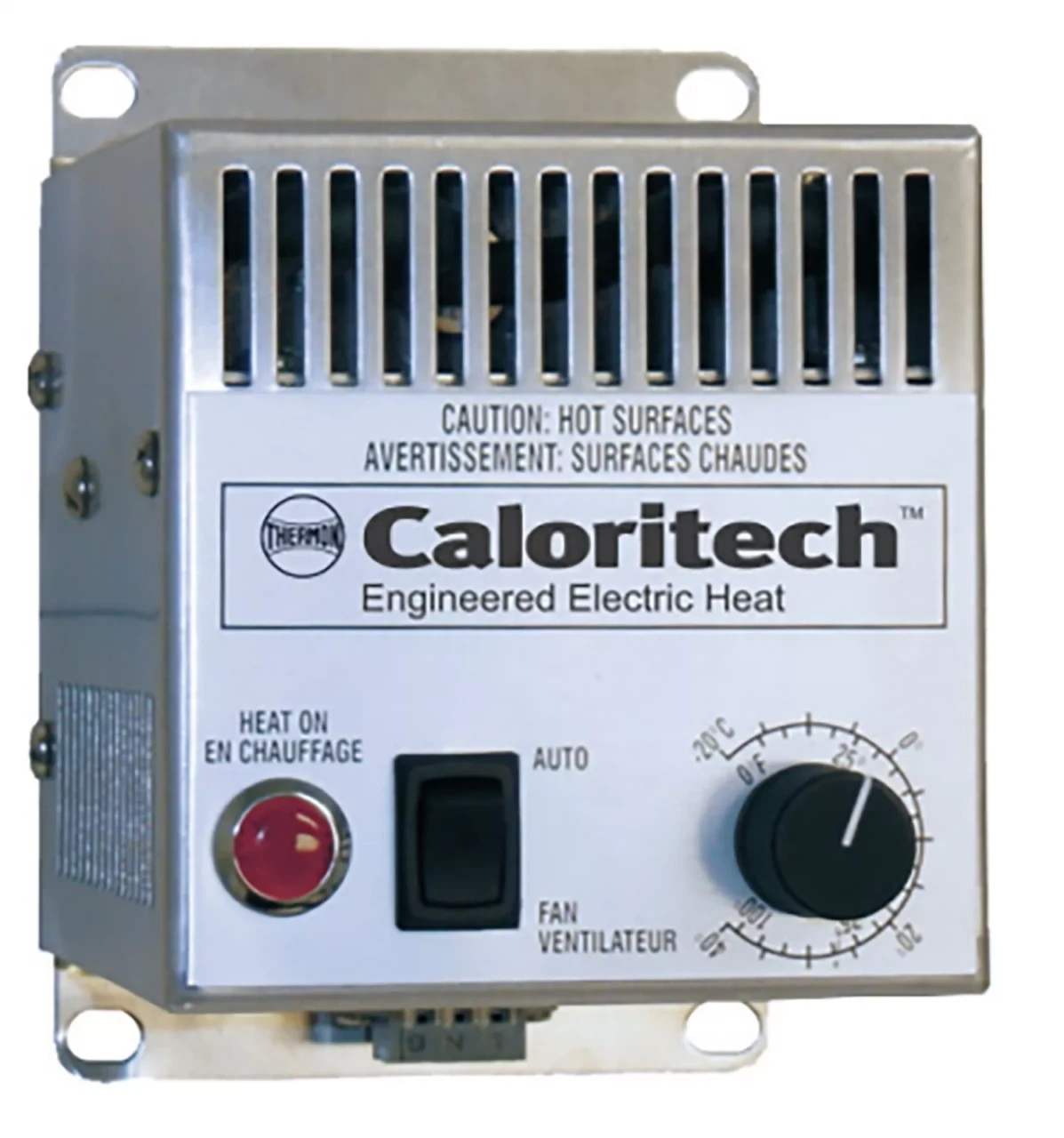

Caloritech 400W 120V PH Series Fan-Forced Enclosure Heater (PH40011)
The Caloritech 400W 120V PH Series Fan-Forced Enclosure Heater (PH40011) is a vital component for maintaining the integrity and performance of sensitive equipment housed within electrical control panels and other enclosures. Engineered to counteract the adverse effects of low temperatures, this 400W, 120V heater actively prevents issues such as condensation, freezing, and corrosion that can severely impact internal components. By creating a stable, controlled environment, the PH40011 ensures the optimal operational reliability and longevity of your critical systems.
KEY FEATURES AND BENEFITS:
Integrated Thermostat: Features an externally adjustable thermostat, allowing precise temperature control between 0°F and 100°F (-18°C to 38°C) to suit specific environmental needs and protect sensitive electronics.
Fan-Forced Air Circulation: Utilizes a built-in fan to efficiently circulate heated air, ensuring uniform temperature distribution throughout the enclosure, which is critical for preventing localized cold spots and condensation.
Preventative Protection: Effectively prevents the formation of condensation, ice, and corrosive elements, safeguarding electronic and mechanical components from premature failure and extending their operational lifespan.
Fan AUTO/ON Switch: Offers flexibility in operation, enabling the fan to run continuously for consistent airflow or only when heating is actively required, contributing to motor longevity and energy efficiency.
Operational Indication: A clear "HEAT ON" pilot light provides immediate visual confirmation when the heater is actively engaged in heating the enclosure, simplifying monitoring.
Safety Assured: Incorporates high-temperature safety protection to prevent overheating, ensuring safe and reliable operation within various industrial and commercial settings.
Robust Construction: The outer casing is constructed from aluminum alloy, providing protection for internal components against external environmental factors and ensuring a long service life.
Voltage: 120V AC
Phase: Single phase (1Ø)
Amperage: 3.33 A
BTU Output: 1365 BTU/hour
Thermostat Range: 0°F to 100°F (-18°C to 38°C)
Operating Temperature Range (Ambient): -4°F to 104°F (-20°C to 40°C)
Material: Aluminum Alloy
Mounting: Install the Caloritech PH40011 heater vertically within the enclosure, ideally in the center and as low as practical to achieve optimal heat distribution. Ensure the mounting surface is non-flammable.
Wiring: Connect the heater to the appropriate 120V AC power source using the integrated terminal strip. Ensure all wiring connections comply with local electrical codes and safety standards.
Thermostat Adjustment: Adjust the external thermostat to the desired temperature setting within the 0°F to 100°F range. This setting determines when the heater will activate to maintain the enclosure's internal temperature.
Fan Mode Selection: Set the Fan AUTO/ON switch according to your preference. Select "AUTO" for the fan to operate only when heating is active, or "ON" for continuous fan operation.
Monitoring: Observe the "HEAT ON" pilot light to confirm the heater is functioning as intended. Regular checks of the enclosure's internal temperature may be advisable for critical applications.
BENEFITS OF USING CALORITECH 400W 120V PH SERIES FAN-FORCED ENCLOSURE HEATER (PH40011):
Extends equipment lifespan by preventing condensation and corrosive environments, significantly prolonging the life of sensitive electronic and electrical components.
Maintains stable internal temperatures to prevent cold-induced malfunctions and freezing, ensuring reliable operation of critical control systems in harsh conditions.
Reduces maintenance costs by minimizing component degradation and lowering the frequency of repairs and replacements.
Protects against environmental damage from extreme cold and humidity, acting as a safeguard for enclosure contents.
Provides an ideal operating climate for instrumentation and control devices, allowing optimal performance without temperature-related stress.
Facilitates simple integration with straightforward installation for new or existing enclosure setups.
Terminal strip for secure wire connections.
Designed for vertical installation to maximize heating efficiency.
Lightweight construction for easy handling.
Low maintenance requirements.
Optional DIN rail mounting capability for versatile installation.
Compact design suitable for various enclosure sizes.
Engineered for seamless integration into control panel environments.
Product identification
- Brand: Caloritech
- Model / MPN: PH40011
