Caloritech SS1031 120V 100W Strip Heater, 7.25 Inch
The Caloritech SS1031 provides a listed 100W rating at 120V across a 7.25 inch component strip heater. Its lower wattage does not establish suitability for a particular enclosure or process; required heat input and the installation's heat losses must be assessed together.
Specifications and included details
- SS1031: listed 120V, 100W and 7.25 inch length.
- Listed current is 0.83 A; heat output is 341 BTU/hour.

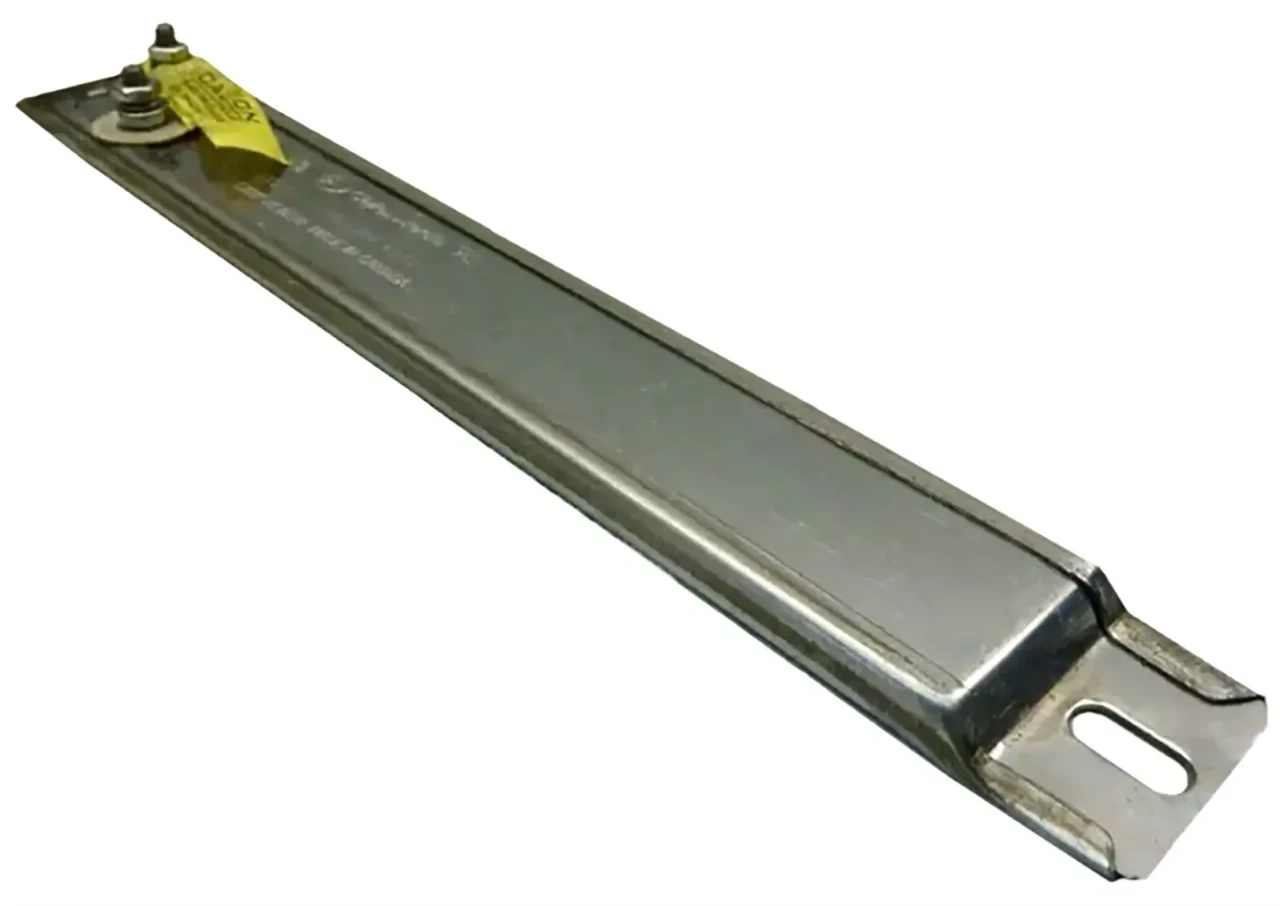

- Aluminized steel sheath and two offset bolt-type terminals.
- Surface mounting with slots listed as 5/8 x 9/32 inches.
- Standard configuration is listed without an adjustable thermostat.
Before ordering
Confirm the dimensioned drawing, terminal clearance, mounting contact, required temperature control and electrical protection. The supplied 1.5 inch height field has no resolved terminal-versus-sheath scope. Use the manufacturer's instructions for installation; no wiring sequence or process-temperature guarantee is provided here.
Product questions and answers
Does 100W guarantee enough heat for my control cabinet?
No cabinet-size or heat-loss rating is supplied. Required heat depends on the enclosure, surroundings, target temperature and control arrangement.
Is 341 BTU/hour a temperature setting?
No. It describes listed heat output, not a thermostat setting or guaranteed material temperature.
Does the SS1031 regulate temperature by itself?
An adjustable thermostat is not listed as standard. Confirm appropriate external control and protection for the application.
