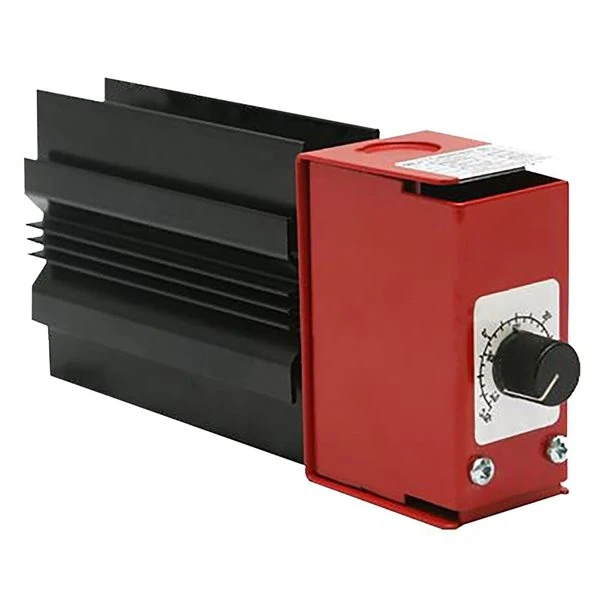

Caloritech 200W Electric Control Panel & Pump House Heater (PXFT20011)
The Caloritech 200W Electric Control Panel & Pump House Heater (PXFT20011) is engineered to provide essential thermal protection for sensitive equipment within enclosed indoor environments. This natural convection heater efficiently maintains a stable temperature, mitigating risks such as condensation, freezing, and associated operational disruptions. Its design focuses on reliable, continuous performance, making it an ideal solution for safeguarding critical infrastructure in industrial settings.
KEY FEATURES AND BENEFITS:
Natural Convection Heating: Utilizes a high surface area aluminum heat emitter for efficient heat distribution without a fan, promoting quiet and maintenance-free operation.
Integrated Adjustable Thermostat: Features a built-in thermostat with a range of 30°F to 120°F (0°C to 50°C), allowing for precise temperature regulation and energy savings.
Flexible Mounting Options: Approved for horizontal or vertical installation on floor or lower wall surfaces, with a movable bracket to position the terminal box optimally (left, right, top, or bottom).
Corrosion Resistance: Constructed from aluminum and steel materials, providing resilience in various industrial environments.
Model Number: PXFT20011
Amperage: 1.66 A
BTU Output: 682 BTU/hour
Thermostat Rating: 25 A at 240V, Single Pole, Single Throw
Placement: Identify a suitable location within your control panel or pump house for installation, ensuring it is an indoor environment. The heater can be mounted horizontally or vertically on the floor or a lower wall.
Mounting: Secure the heater using the movable bracket to the chosen surface. Adjust the bracket to position the terminal box as needed for wiring convenience.
Electrical Connection: Connect the heater to a 120V power source, ensuring all electrical work is performed by a qualified professional in accordance with local codes.
Thermostat Adjustment: Once powered, set the integrated thermostat to your desired temperature within the 30°F to 120°F (0°C to 50°C) range to maintain optimal conditions.
Operation: The heater will now automatically regulate the temperature within the enclosure, turning on and off as needed to prevent condensation and freezing. The unit is designed for continuous, unattended operation.
BENEFITS OF USING CALORITECH 200W ELECTRIC CONTROL PANEL & PUMP HOUSE HEATER (PXFT20011):
Extends the lifespan of sensitive electronic and mechanical components by preventing moisture and frost accumulation.
Reduces the likelihood of equipment malfunction and failures caused by adverse environmental conditions.
Minimizes downtime and associated repair costs by proactively protecting critical systems.
Provides a consistent internal climate within enclosures, safeguarding against rapid temperature fluctuations.
Offers a cost-effective solution for environmental control in unattended industrial spaces.
Designed for internal use in control panels and pump houses.
Operates without producing fumes or open flames.
Can be operated continuously without supervision.
Offers flexible mounting options for various enclosure configurations.
Utilizes a low radiation, high convection heating principle.
Suitable for ambient operating temperatures from −4°F to 104°F (−20°C to 40°C).
Product identification
- Brand: Caloritech
- Model / MPN: PXFT20011
