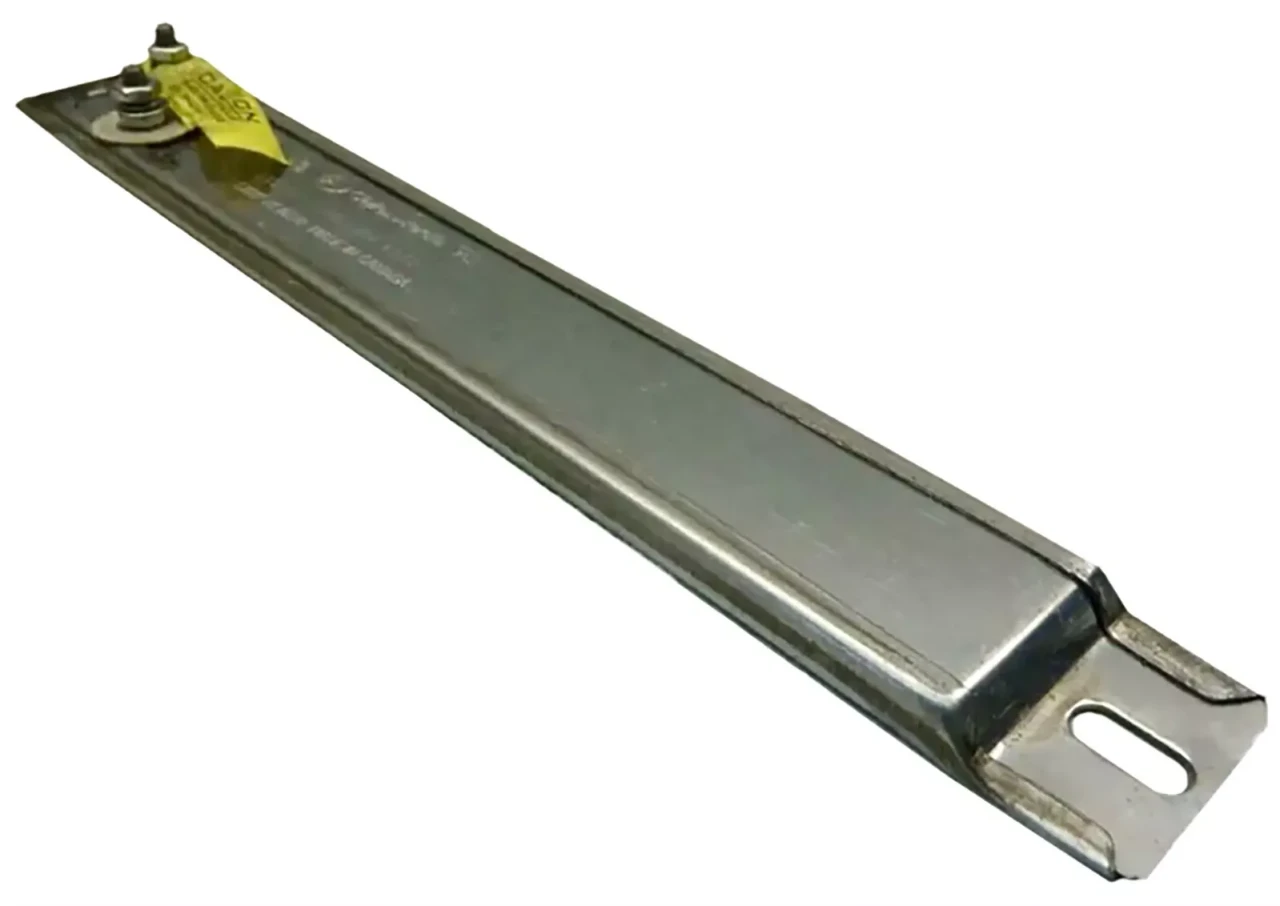

Caloritech SS2132 240V 400W 10.5-Inch Strip Heater
The SS2132 is a 10.5-inch stainless-steel strip heater rated at 240V and 400W, with a listed current of 1.66A. Its longer body distinguishes it from the 8-inch SS2092 despite equal listed voltage and wattage. Use the required contact area and equipment drawing to decide which physical format belongs in the heating assembly.
Specifications and included details
- 240V, 400W electrical rating with listed 1.66A current.
- 10.5-inch length and listed 1.5-inch width; stainless-steel sheath.
- 1365 BTU/hour listed heat output and maximum sheath temperature of 1200°F (649°C).
- Two offset bolt-type terminals at one end; no integrated adjustable thermostat.
Before ordering
Compare the manufacturer's attachment-point drawing and terminal clearance with the existing assembly. A qualified installer must check the circuit and external controls. A general standards reference is not a substitute for checking the actual model documentation and approval markings required for your installation.
Product questions and answers
Why choose SS2132 instead of the 8-inch SS2092?
Both are listed at 240V and 400W, but SS2132 is 10.5 inches long. Choose the format required by the mounting and heating design, not simply the identical wattage.
Does 1.66A tell me which wiring or breaker to use?
No. It is the listed heater current, not a complete circuit design. The qualified installer must determine wiring, protection and controls for the installation.
Does SS2132 regulate temperature without a controller?
No integrated adjustable thermostat is listed. External sensing and control must be selected for the process; the 1200°F sheath limit is not a regulated operating setpoint.
