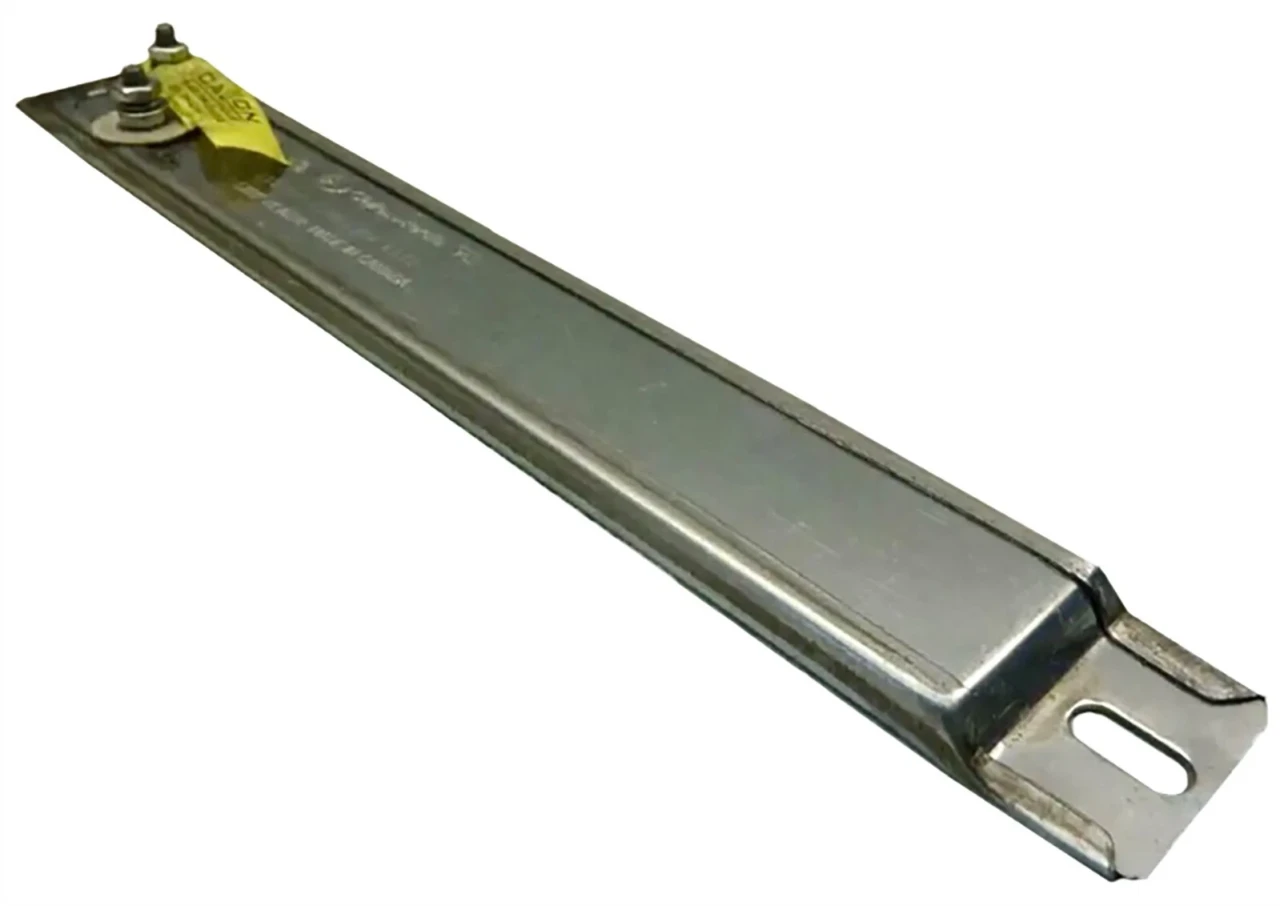

Caloritech SS1272 240V 500W 17.75-Inch Strip Heater
Caloritech SS1272 pairs a 17.75-inch strip body with a 240V, 500W electrical rating and listed 2.08A current. It offers the same listed wattage as the 120V SS1261, but requires a different supply match. The lower current figure should not be mistaken for a lower listed heating-power rating.
Specifications and included details
- 240V, 500W rating with listed current of 2.08A.
- 17.75-inch length and aluminized-steel sheath.
- 1706 BTU/hour listed heat-output rate; maximum sheath temperature of 1000°F (538°C).
- Offset bolt terminals and 5/8 x 9/32-inch slotted mounting holes.
Before ordering
Confirm the 240V supply and SS1272 model before comparing mounting and connection clearances with the manufacturer drawing. Have a qualified installer assess contact conditions, heat losses and temperature-control requirements. Referenced CPA or CPB panels are separate equipment and must be checked for the actual installation.
Product questions and answers
Does the 2.08A SS1272 produce less heat than the 4.17A SS1261?
Both are listed at 500W and 1706 BTU/hour. Their supply-voltage and current ratings differ; current alone is not a comparison of their listed heating power.
Can SS1272 replace any 17.75-inch strip heater?
No. Match the 240V rating, required wattage, sheath material, terminal arrangement and mounting drawing. The same overall length is not enough to confirm electrical or mechanical compatibility.
Is a Caloritech control panel part of this heater?
CPA and CPB panels are referenced as separately supplied control equipment. Check the specific panel, sensing and control requirements rather than assuming a panel is included or universally compatible.
