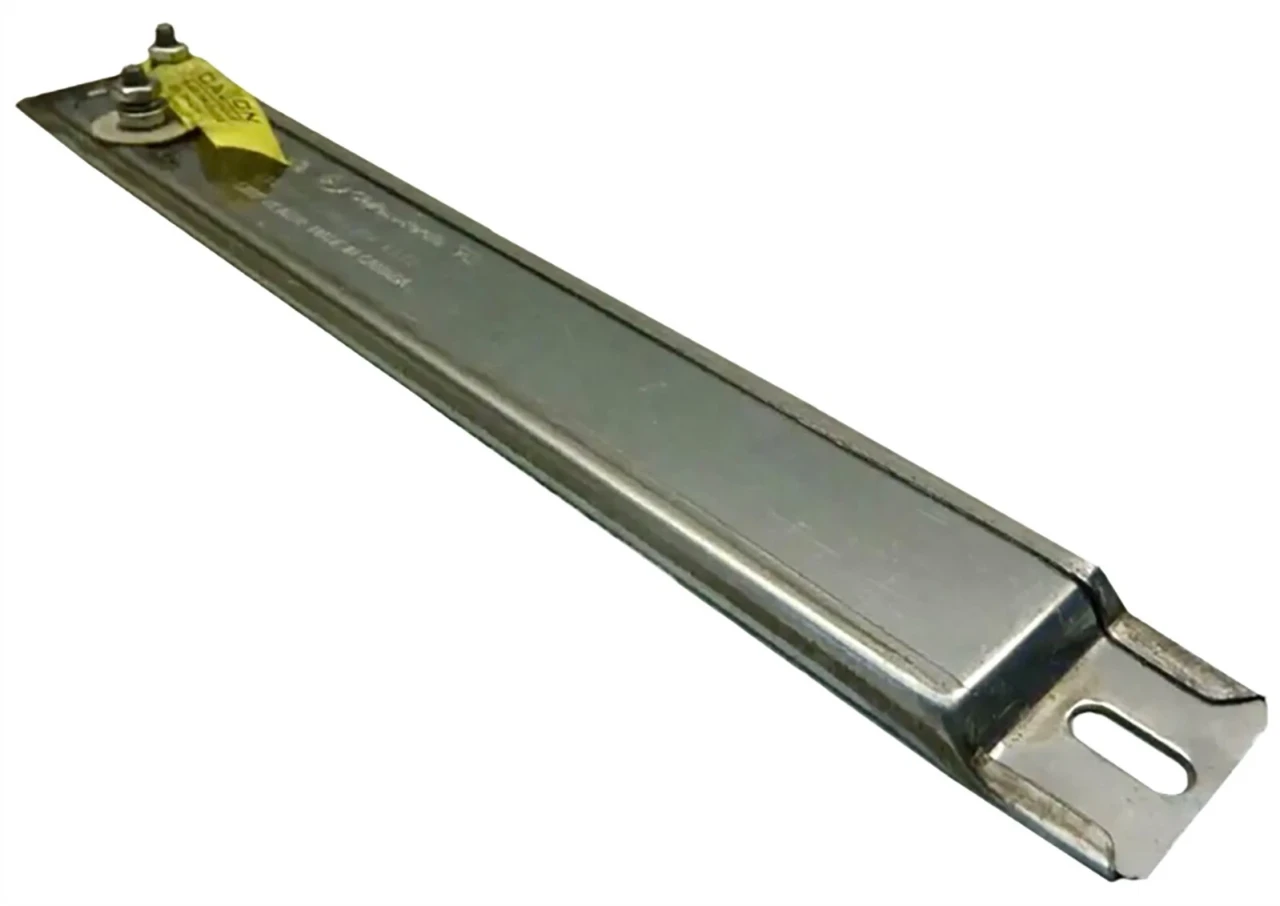

Caloritech SS2412 240V 1000W 23.5-Inch Strip Heater
Caloritech SS2412 combines a 23.5-inch stainless-steel strip with a 240V, 1000W rating. Its listed current is 4.16A, and the listed heat-output rate is 3412 BTU/hour. Those figures describe the element's electrical and thermal rating; they do not establish warm-up time or the temperature achieved by a particular surface.
Specifications and included details
- 240V, 1000W rating with listed 4.16A current and 3412 BTU/hour heat output.
- 23.5-inch length and listed 1.5-inch width; stainless-steel sheath.
- Maximum sheath temperature of 1200°F (649°C).
- Offset #10-32 bolt terminals and 5/8 x 9/32-inch mounting slots; thermostat not included.
Before ordering
Confirm the SS2412 rating and complete manufacturer drawing, including terminal height and mounting geometry. The listing's height/thickness field should not be used as a verified clearance drawing. Have a qualified installer select the circuit, mounting and external temperature control for the application.
Product questions and answers
Does SS2412 include an adjustable thermostat?
No. The listing explicitly says that a thermostat is not included. Appropriate external sensing and control must be selected separately.
Is another 23.5-inch strip an equivalent replacement?
Not on length alone. SS2412 is listed at 240V and 1000W with a stainless-steel sheath; verify the required voltage, power, material and mounting drawing before substitution.
Can I use the 1200°F sheath rating to set my process temperature?
No. It is a maximum sheath-temperature limit. The controller, heat transfer and process losses determine the operating temperature; the rating does not promise a particular workpiece temperature.
