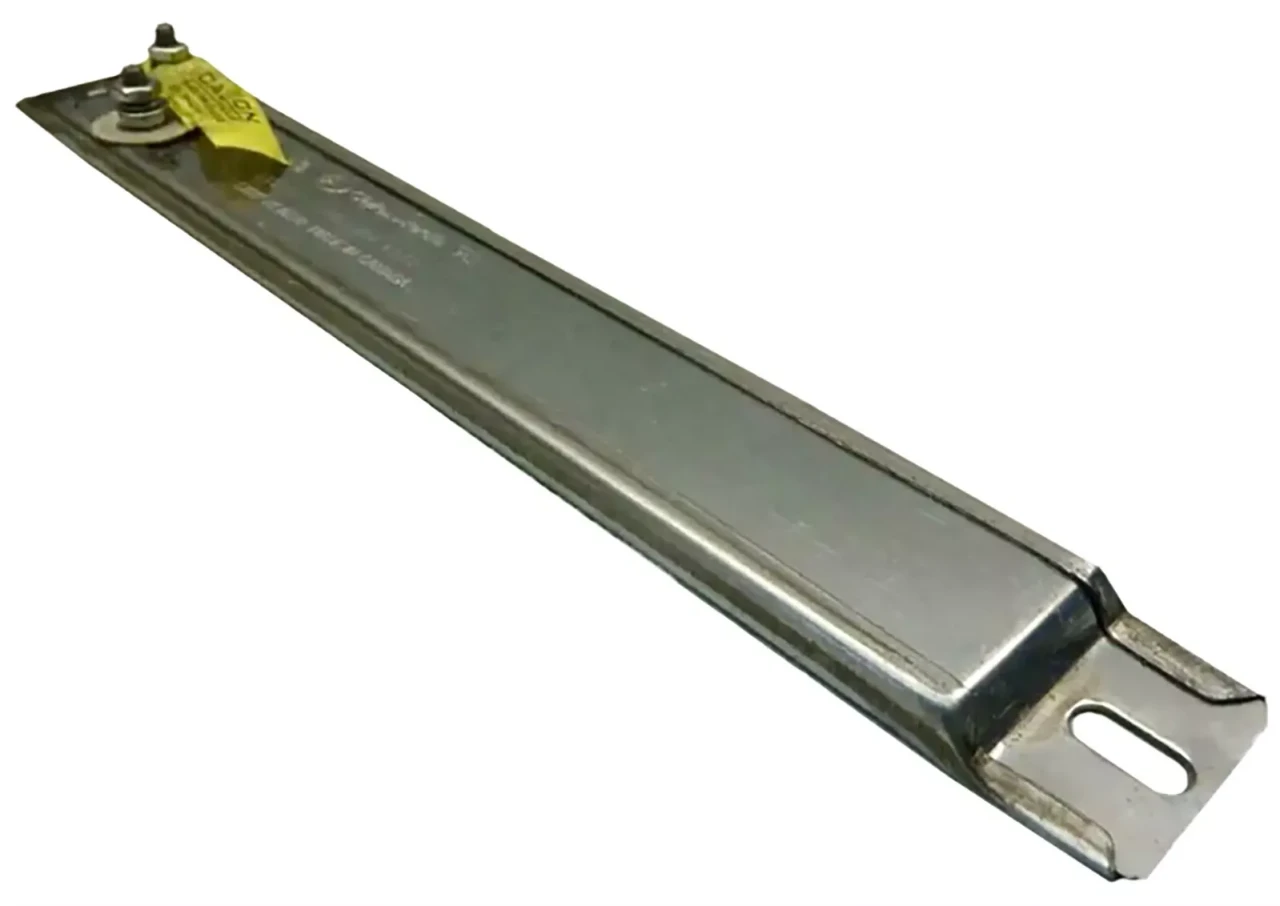

Caloritech SS2502 240V 1000W 30.25-Inch Strip Heater
SS2502 is a 30.25-inch Caloritech stainless-steel strip heater rated at 240V and 1000W. It shares the listed voltage and wattage of SS2412 but has a longer physical format. That distinction matters when replacing an element on a designed contact surface: equal power does not mean equal fit or the same heating distribution in the assembly.
Specifications and included details
- 240V, 1000W rating and listed heat output of 3412 BTU/hour.
- 30.25-inch length and listed 1.5-inch width; stainless-steel sheath.
- Maximum sheath temperature listed at 1200°F (649°C).
- Two offset bolt terminals at one end and 5/8 x 9/32-inch mounting slots.
Before ordering
Compare the SS2502 manufacturer drawing with the required contact length, slot positions and terminal clearance. Have a qualified installer confirm the supply and external temperature-control arrangement. Use the drawing for actual thickness and terminal height rather than treating the generic height field as verified installation clearance.
Product questions and answers
Can SS2502 replace a 23.5-inch SS2412 because both are 1000W?
Not on power alone. SS2502 is 30.25 inches long and SS2412 is 23.5 inches. Confirm the mounting geometry and heating-assembly requirements as well as the 240V rating.
Is 1200°F the temperature the heated surface will reach?
No. It is the maximum listed sheath-temperature limit. Surface temperature depends on contact, losses and controls; it is not guaranteed by the rating.
Does the strip's narrow width mean it will fit my existing mounting?
The listed width is 1.5 inches, but overall length, slot positions and terminal clearance also matter. Check the complete manufacturer drawing before ordering.
