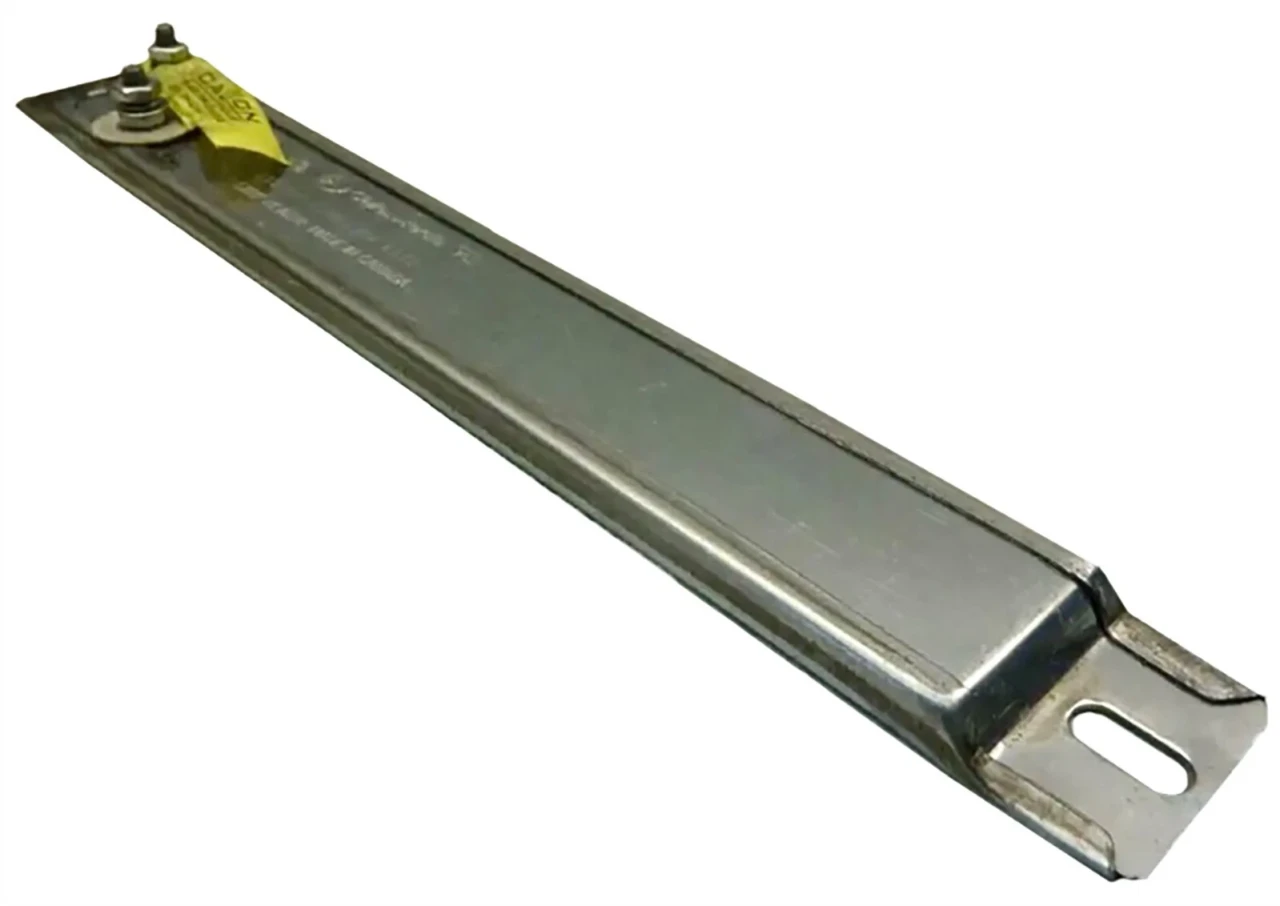

Caloritech 23.5" 120V 500W SS Series Strip Heater (SS1361)
KEY FEATURES AND BENEFITS:
Consistent Thermal Output: Delivers steady and reliable heating across a wide range of applications.
Durable Construction: Aluminized steel sheath resists corrosion and maintains structural performance.
Optimal Power Efficiency: Operates at 120V and 500W for efficient energy use in both industrial and commercial systems.
Flexible Integration: Can be easily installed in new or existing equipment thanks to its compact 23.5-inch length and standard mounting design.
External Temperature Control Compatibility: Supports connection to control panels and thermostats for precise heat management.
Manufacturer's Part Number: SS1361
Length: 23.5 inches
Sheath Material: Aluminized Steel
Watt Density: 6.8 Watts per square inch / 1.1 Watts per square centimeter
Terminals: Two offset bolt-type terminals
Heat Output: 1,706 Btu/hour
Mount the Heater: Securely install the Caloritech SS1361 strip heater using its integrated mounting holes. Ensure the mounting surface is appropriate for high temperatures and is free of obstructions.
Connect Electrical Supply: Connect the 120V power supply to the two offset bolt-type terminals. All electrical connections should be performed by a qualified electrician, adhering to local electrical codes and safety standards.
Integrate Temperature Control (Optional but Recommended): For precise temperature regulation, connect the heater to an external temperature control device. This can be a Caloritech™ CPA or CPB control panel, a mechanical thermostat, or a bi-metal thermostat installed on the heater surface.
Verify Operation: Once electrical connections are complete and secure, activate the power supply. Monitor the heater to ensure it is functioning correctly and reaching the desired temperature.
Routine Inspection: Periodically inspect the heater and its connections for any signs of wear, damage, or loose connections to ensure continued safe and efficient operation.
BENEFITS OF USING CALORITECH 23.5" 120V 500W SS SERIES STRIP HEATER (SS1361):
Reliable Heating Performance: Ensures consistent temperature output for optimal industrial process conditions.
Durability and Resistance: Aluminized steel construction provides excellent corrosion protection for longer service life.
Compact and Practical Design: Fits easily into control panels, ovens, and various machinery without requiring major modifications.
Versatile Heating Applications: Effective for moisture prevention, surface heating, and process air heating across multiple industries.
Corrosion-Resistant Sheath: Aluminized steel offers long-term durability and a clean appearance.
Secure Terminal Connections: Internally reinforced resistance coil is mechanically connected to bolt-type terminals.
High-Performance Insulation: Magnesium oxide fill maximizes thermal transfer while ensuring electrical insulation.
Effortless Installation: Standard mounting holes make secure attachment quick and simple.
Wide Use Case Compatibility: Designed to meet general-purpose heating requirements across industries.
Customizable Options: Factory customization available for wattage, voltage, length, and bending configurations.
Product identification
- Brand: Caloritech
- Model / MPN: SS1361
