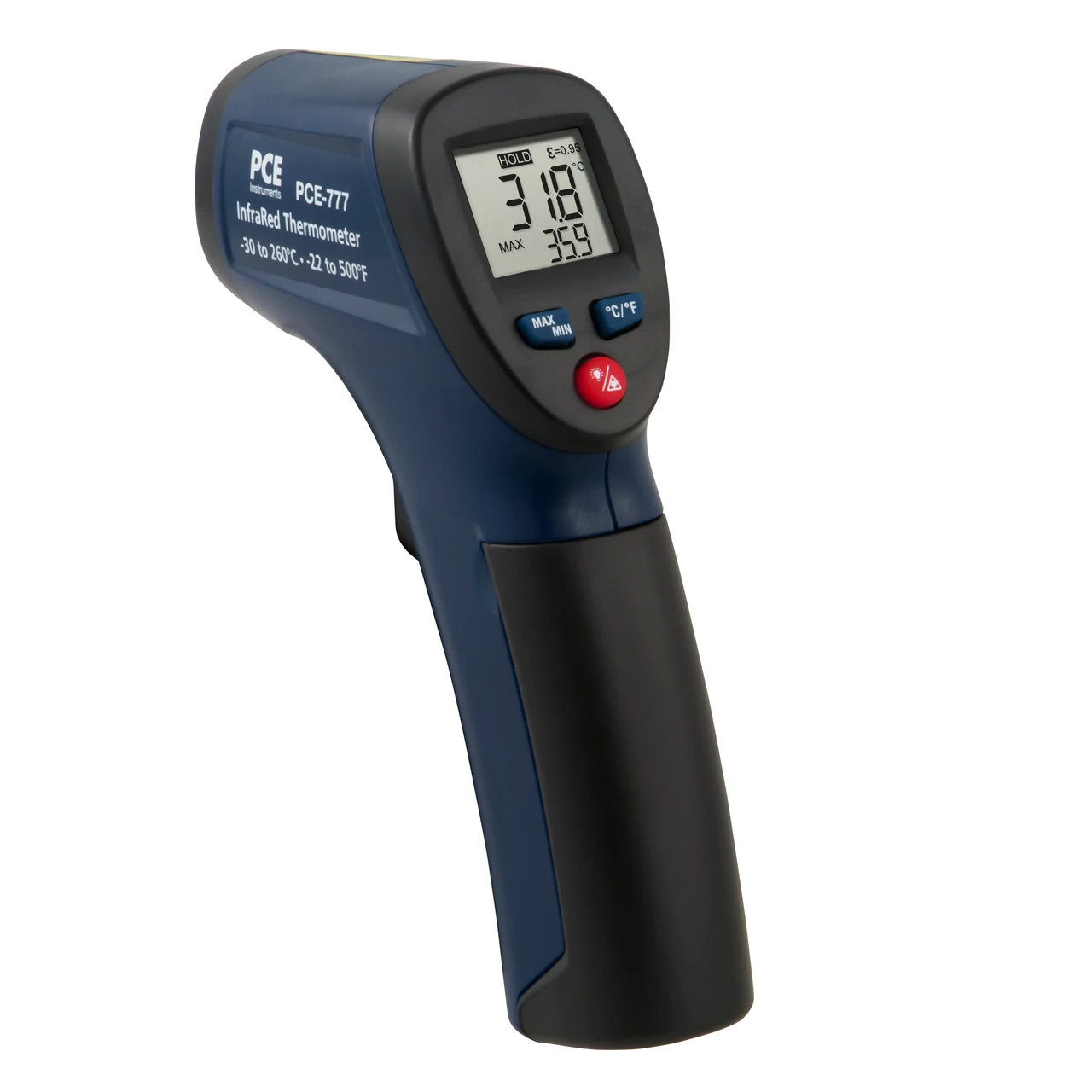

PCE Instruments Non-Contact Infrared Thermometer with Laser Pointer (PCE-777N)
PCE Instruments Infrared Thermometer (PCE-777N) is a compact, non-contact temperature measurement device designed for precise surface temperature readings. Equipped with a visible red laser pointer, this infrared thermometer allows users to target and measure specific areas from a safe distance.
With a wide temperature range of -30 to 260 °C (-22 to 500 °F), it is ideal for HVAC inspections, industrial maintenance, and electrical troubleshooting. This non-contact infrared thermometer provides fast temperature readings within one second, making it perfect for applications where direct contact is not feasible.
Specifications and Dimensions
Temperature Measuring Range: -30 to 260 °C / -22 to 500 °F
Resolution: 0.1 °C / 0.1 °F
Accuracy: ±4 °C / ±4 °F (range 1), ± 2% of reading / ± 2 °C / ± 4 °F (range 2)
Optical Spot Ratio: 8:1
Emissivity: Fixed at 0.95
Laser: Class II, <1mW, 630-670 nm
Response Time: <1 second
Automatic Shutdown: After 8 seconds of inactivity
Operating Conditions: 0 … 50 °C (32 … 122 °F), 10% – 90% RH
Storage Conditions: -20 … 60 °C (-4 … 140 °F), <80% RH
Power Supply: 9V block battery
Dimensions: 82 x 41.5 x 160 mm / 3.2 x 1.6 x 6.3 in
Weight: 180 g / <1 lb
Key Features and Benefits
Fast and accurate non-contact temperature measurement
Compact and lightweight design for easy portability
Visible red laser pointer for precise targeting
Fixed emissivity of 0.95 for accurate readings on most surfaces
Backlit display for visibility in low-light conditions
Automatic power-off feature extends battery life
Ideal for HVAC, automotive diagnostics, and electrical maintenance
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-777N
