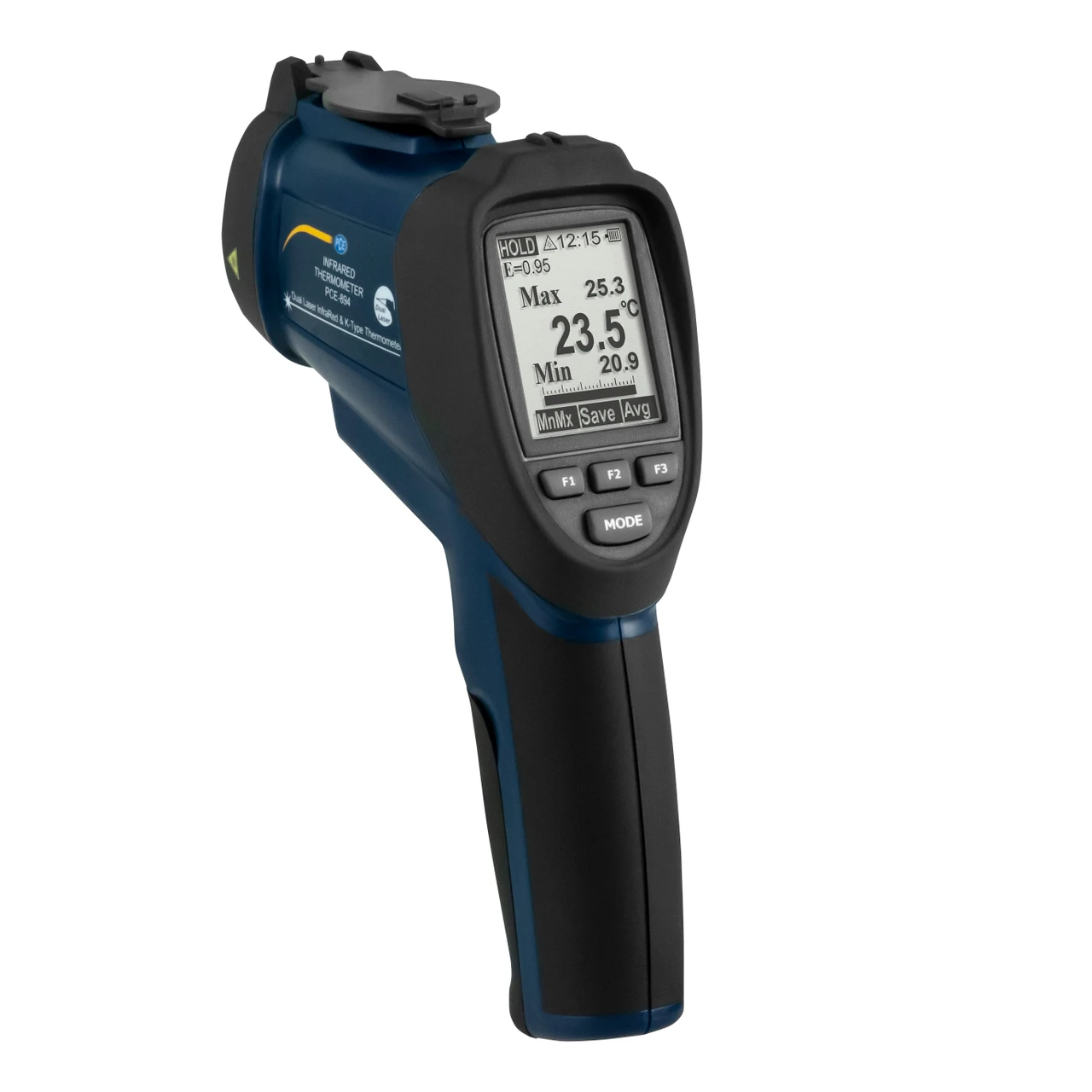

PCE Instruments High-Temperature Infrared Thermometer (PCE-894)
PCE Instruments Infrared Thermometer (PCE-894) is a high-precision non-contact temperature measuring device designed for industrial and laboratory use. With a temperature range from -50°C to 1850°C (-58°F to 3362°F), this infrared thermometer is ideal for monitoring HVAC systems, automotive testing, and production environments.
The dual laser targeting system ensures accurate measurements, while the adjustable emissivity setting allows for precise readings. The infrared thermometer with Bluetooth and thermocouple input offers real-time data transmission, allowing users to analyze temperature trends efficiently.
Specifications and Dimensions
Infrared Measurement Range: -50°C to 1850°C (-58°F to 3362°F)
Thermocouple Type-K Measurement Range: -50°C to 1370°C (-58°F to 2498°F)
Resolution: 0.1°C (<1000°C), 1°C (>1000°C)
Accuracy: ±1% (20°C to 500°C), ±2% (1000°C to 1850°C)
Measurement Spot Ratio: 50:1
Response Time: 150ms
Emissivity: Adjustable from 0.10 to 1.0
Laser Type: Dual laser (Class 2), wavelength 630–670 nm
Spectral Range: 8–14 µm
Display: Large LCD with backlight
Operating Conditions: 0°C to 50°C (32°F to 122°F)
Storage Conditions: -10°C to 60°C (14°F to 140°F)
Power Supply: 9V battery
Weight: 425 g (<1 lb)
Dimensions: 240 x 130 x 65 mm (9.4 x 5.1 x 2.6 in)
Key Features and Benefits
Measures temperatures up to 1850°C (3362°F) for industrial applications
Dual laser targeting ensures precise measurement alignment
Non-contact infrared measurement for quick and safe readings
Compatible with Type-K thermocouples for extended temperature ranges
Bluetooth connectivity for real-time data transfer
Adjustable emissivity setting for improved accuracy on various surfaces
Fast response time (150ms) for instant temperature readings
Backlit LCD display for easy visibility in all lighting conditions
Built-in alarm settings for high/low-temperature thresholds
Comes with software for data logging and analysis
1 x Infrared Thermometer PCE-894
1 x Type-K Thermocouple
1 x Carrying Case
1 x 9V Block Battery
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-894
