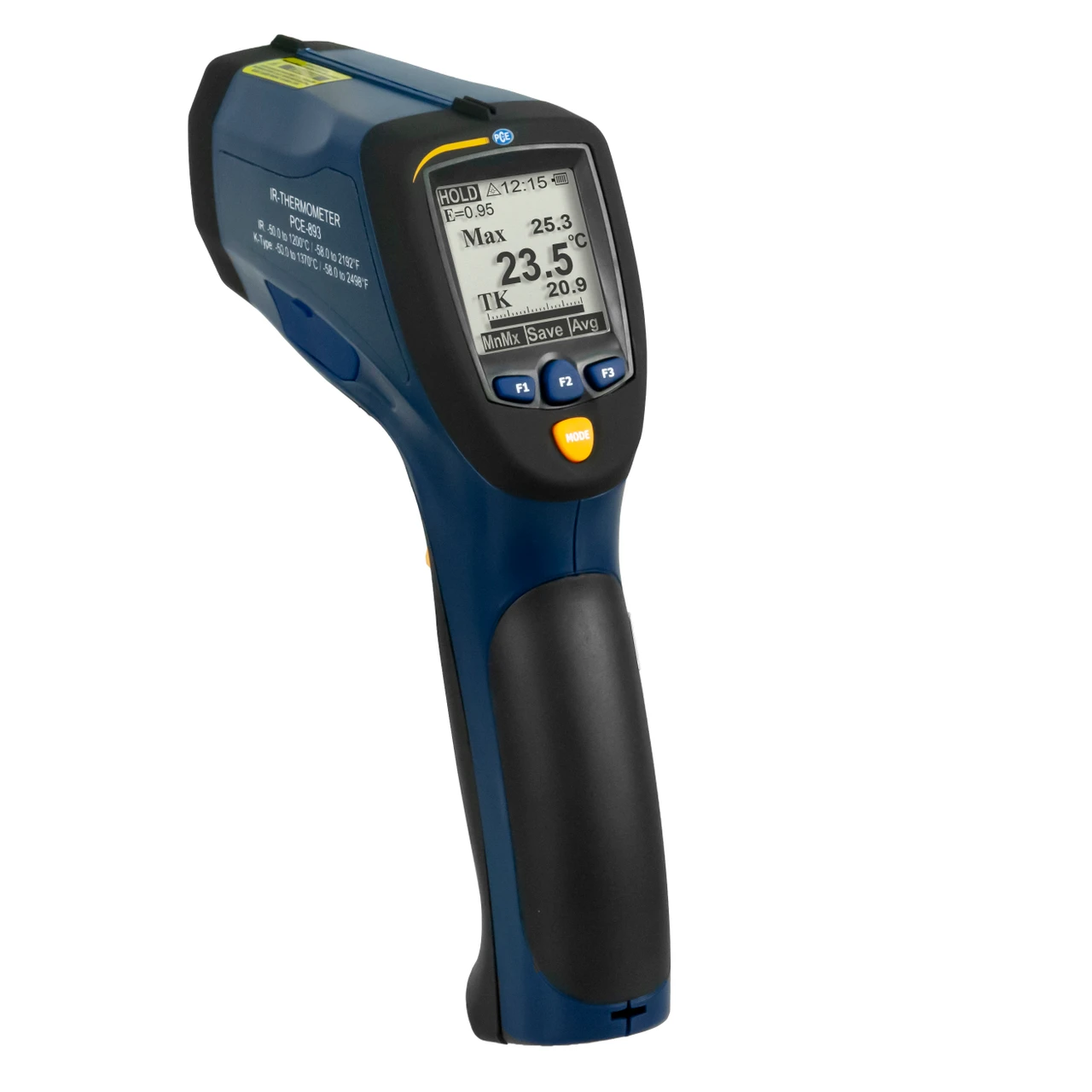

PCE Instruments Infrared Thermometer with Dual Laser (PCE-893)
PCE Instruments Infrared Thermometer (PCE-893) is a high-precision non-contact temperature measuring device designed for industrial and commercial applications. With a measurement range of -50°C to 1200°C (-58°F to 2192°F), this thermometer is ideal for food monitoring, production processes, HVAC systems, and electronic component inspections.
The dual laser targeting system precisely marks the center of the measurement spot for enhanced accuracy. The infrared thermometer with USB data logging allows connection to Type-K thermocouples for extended measurements up to 1370°C (2498°F).
Specifications and Dimensions
Infrared Measurement Range: -50°C to 1200°C (-58°F to 2192°F)
Thermocouple Type-K Measurement Range: -50°C to 1370°C (-58°F to 2498°F)
Resolution: 0.1 (for readings below 1000°C), 1 (for readings above 1000°C)
Accuracy: ±1% ±1°C (20°C to 500°C), ±2% (1000°C to 1600°C)
Measurement Spot Ratio: 50:1
Response Time: 150ms
Emissivity: Adjustable from 0.10 to 1.0
Laser Type: Dual laser (Class 2), wavelength 630–670 nm
Spectral Range: 8–14 µm
Display: LCD with backlight
Operating Conditions: 0°C to 50°C (32°F to 122°F)
Storage Conditions: -10°C to 60°C (14°F to 140°F)
Power Supply: 9V battery
Weight: 282 g (<1 lb)
Dimensions: 200 x 55 x 150 mm (7.8 x 2.1 x 5.9 in)
Key Features and Benefits
Wide temperature range up to 1200°C (2192°F) for versatile applications
Dual laser targeting ensures precise measurement alignment
Non-contact measurement for fast, safe temperature readings
Compatible with Type-K thermocouples for extended range
USB connectivity for real-time data transfer and analysis
Adjustable emissivity for improved accuracy on different surfaces
Fast response time (<150ms) for instant readings
Backlit LCD display for easy use in dim environments
User-configurable high/low temperature alarm settings
Includes software for data logging and graphical analysis
1 x Infrared Thermometer PCE-893
1 x Type-K Thermocouple
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-893
