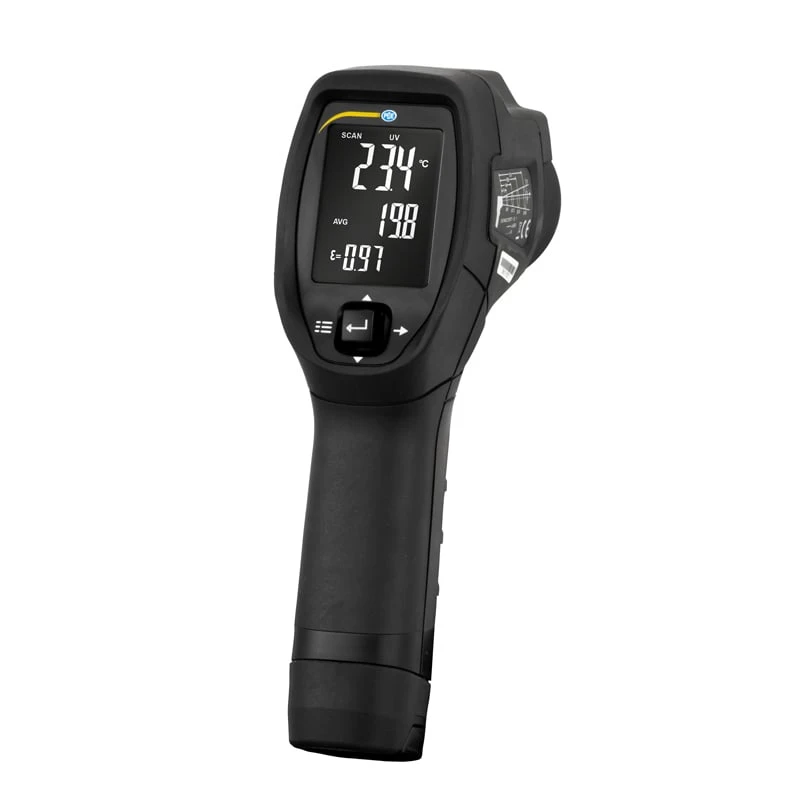

PCE Instruments Infrared Thermometer with Multi-Point Laser (PCE-ILD 10)
PCE Instruments Infrared Thermometer (PCE-ILD 10) is a precise, handheld device for non-contact surface temperature measurements. With a measuring range of -50 to 500°C (-58 to 932°F) and a 12:1 spot ratio, this thermometer is ideal for industrial, HVAC, and automotive applications.
The multi-point laser ensures accurate targeting, while the adjustable emission value allows for precise readings on different surfaces. The built-in LED rings enhance visibility, with a blue LED ring for detecting leaks in air conditioning systems and a white LED for general illumination.
Specifications and Dimensions
Measuring Range: -50 … 500 °C / -58 … 932 °F
Resolution: 0.1 °C / 0.1 °F
±3 °C / ±5.4 °F at -50 … 20 °C / -58 … 68 °F
±2% or ±2°C / ±3.6 °F at 20 … 500 °C / 68 … 932 °F
Repeatability: ±1 °C / ±1.8 °F
Spot Ratio: 12:1
Emission Rate: Adjustable (0.10 … 1.00)
Measuring Rate: 2 Hz
Spectral Range: 8 … 14 µm
Laser Output Power: <1 mW
Laser Wavelength: 630 … 670 nm
LED Light Ring: 5 x White LEDs, 5 x Blue LEDs
Power Supply: 2 x 1.5V AA batteries
Operating Conditions: 0 … 50 °C / 32 … 122 °F, 10 … 90% RH (non-condensing)
Storage Conditions: -10 … 60 °C / 14 … 140 °F, 10 … 90% RH (non-condensing)
Dimensions: 180 x 100 x 55 mm / 7.0 x 3.9 x 2.1 in
Weight: 329 g / 11.6 oz (with batteries)
Key Features and Benefits
Measures surface temperatures from -50 to 500°C (-58 to 932°F)
Fast 2 Hz measuring rate for quick readings
Multi-point laser ensures accurate targeting
12:1 spot ratio for precise measurements at a distance
1 x Infrared Thermometer PCE-ILD 10
1 x Transport Bag
2 x 1.5V AA Batteries
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-ILD 10
