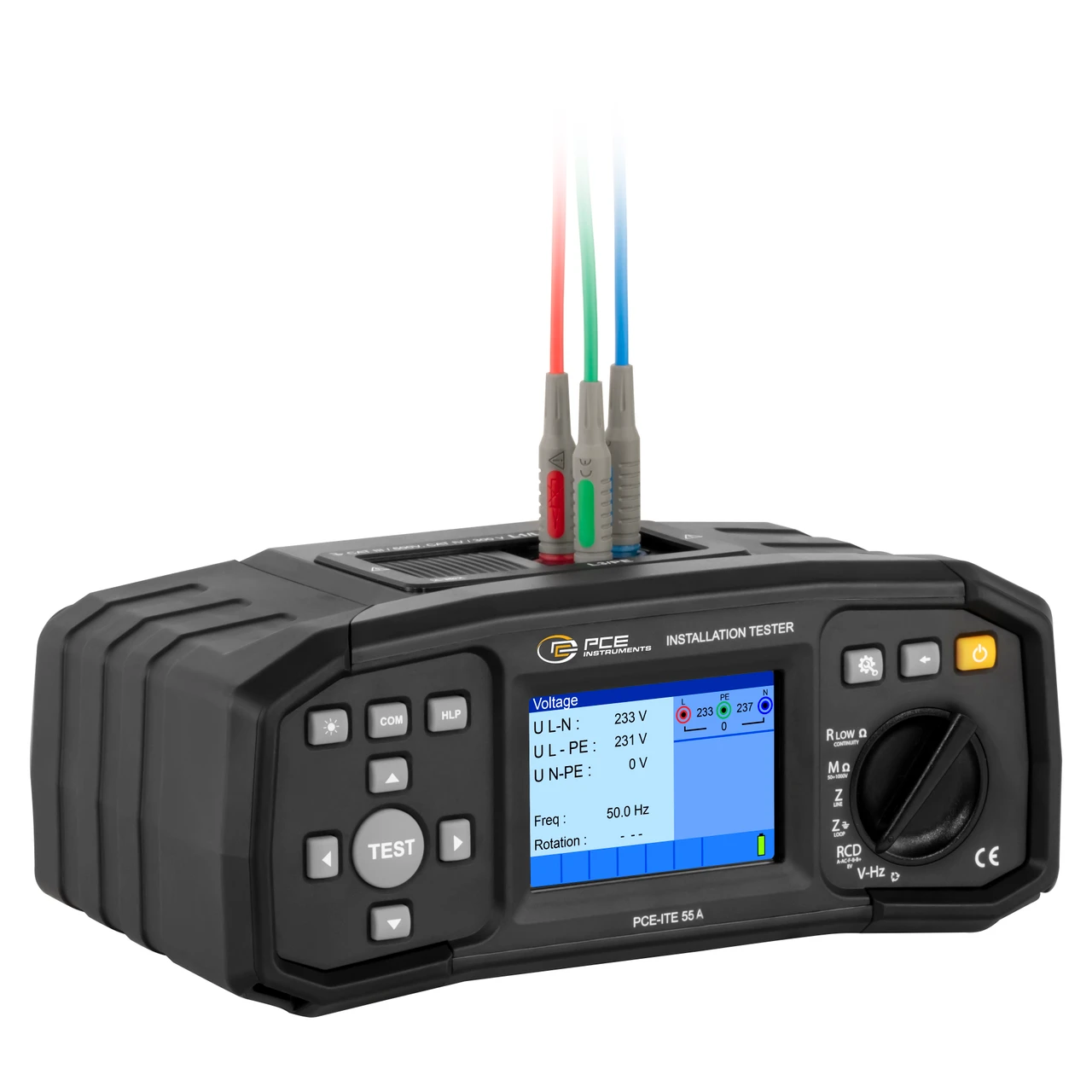

PCE Instruments Earth Tester (PCE-ITE 55A)
PCE Instruments Earth Tester (PCE-ITE 55A) is a multifunctional measuring device for testing electrical safety according to EN 61557 and DIN VDE 0100. Designed for professional applications, it accurately measures insulation resistance, fault loop impedance, continuity, and RCD functionality.
Equipped with a 3.3-inch TFT color display, the tester provides precise readings in real-time. With adjustable test voltages, built-in alarms, and multilingual support, this device ensures compliance with electrical safety regulations.
Specifications and Dimensions
Display: 3.3-inch TFT color screen
Voltage Measurement: 0V … 550V AC
Insulation Resistance Measurement: 0.1 MΩ … 999 MΩ
Impedance Measurement: 0.25 Ω … 9999 Ω
Loop and Fault Impedance Measurement: L-N, L-PE, N-PE
RCD Test Currents: 6mA, 10mA, 30mA, 100mA, 300mA, 500mA, 650mA, 1000mA
Frequency Measurement: 10Hz … 499.9Hz
Passage Check Measurement: 0.1Ω … 1999Ω
Touch Voltage Range: 0V … 99.9V
Operating Temperature: 0 … 40°C (32 … 104°F)
Storage Temperature: -10 … 70°C (14 … 158°F)
Power Supply: 6 x 1.5V AA batteries
Battery Life: Approximately 15 hours
Protection Class: IP42
Dimensions: 250 x 135 x 107 mm (9.8 x 5.3 x 4.2 in)
Weight: 1.3 kg (2.9 lbs)
Key Features and Benefits
Multifunction earth tester for insulation resistance, loop impedance, and RCD tests
Switchable test voltages and fault currents for versatile applications
3.3-inch TFT color display with adjustable brightness for clear readings
Automatic shutdown function prevents battery drain
Meets EN 61557 and DIN VDE 0100 standards for electrical safety compliance
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-ITE 55A
