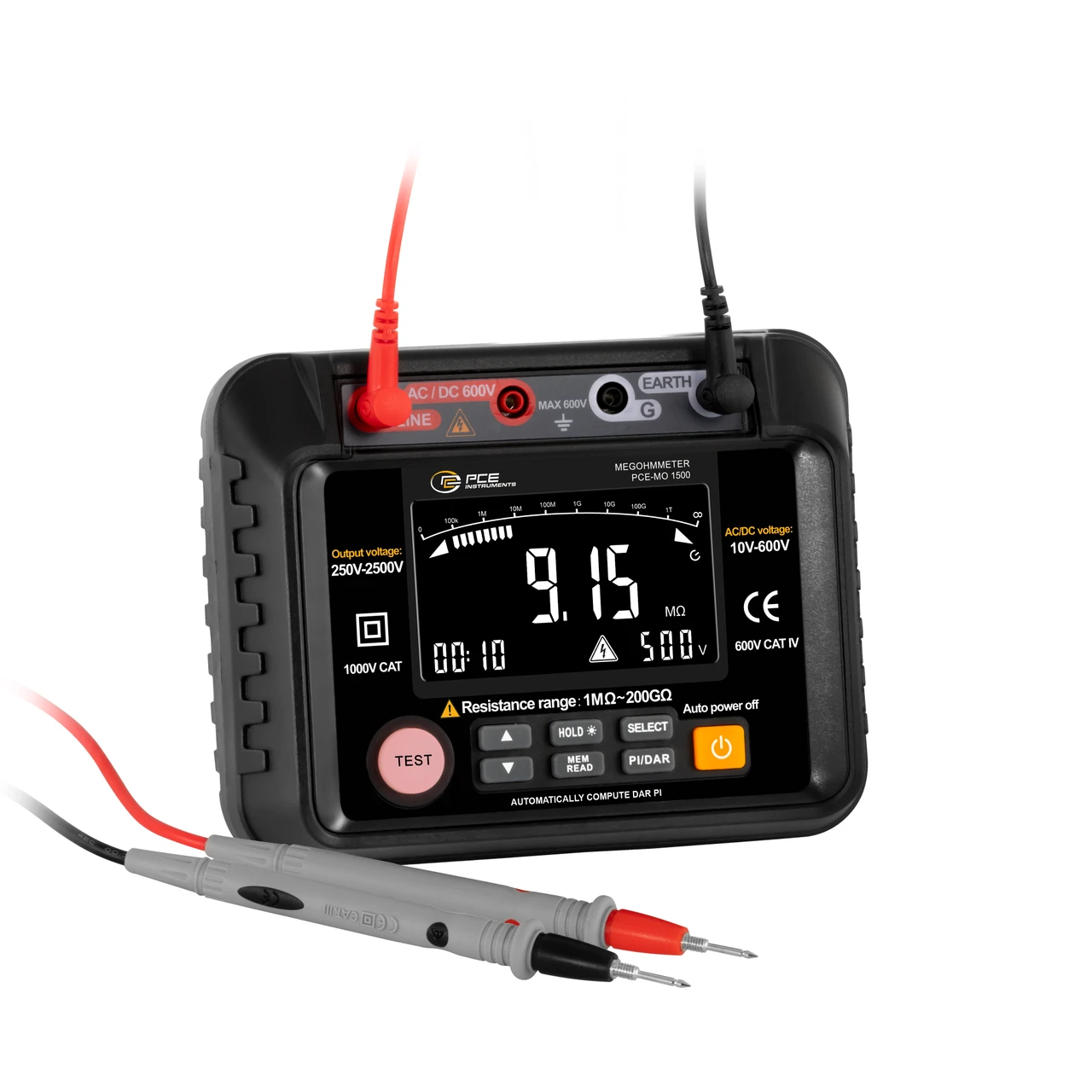

PCE Instruments 2.5KV Insulation Resistance Tester (PCE-MO 1500)
PCE Instruments 2.5KV Insulation Resistance Tester (PCE-MO 1500) is a powerful tool for testing insulation resistance in industrial, commercial, and residential electrical systems. With selectable test voltages from 250V to 2500V and resistance measurement capabilities up to 200 GΩ, this tester is ideal for high-voltage insulation diagnostics.
With internal memory for 100 data records and a backlit LCD display, this insulation meter enhances efficiency in routine maintenance, troubleshooting, and compliance testing of motors, cables, switches, and transformers.
Specifications and Dimensions
Test Voltages: 250V, 500V, 1000V, 2000V, 2500V
Insulation Resistance Measurement: Up to 200 GΩ
AC/DC Voltage Measurement: 10 – 600V
Accuracy: ±(5% of Rd +10 digits)
Measurement Functions: PI, DAR, HOLD
Data Storage: Internal memory for 100 records
Display: 3.7-inch LCD with backlight
Safety Rating: EN 61010-1, CAT III 1000V, CAT IV 600V
Power Supply: 8 x 1.5V AA batteries
Operating Temperature: 0 … 35°C (0 … 75% RH)
Dimensions: 140 x 180 x 70 mm
Key Features and Benefits
Measures insulation resistance up to 200 GΩ for comprehensive electrical testing
Selectable test voltages for flexibility in different applications
Advanced measurement functions including PI and DAR for in-depth analysis
Data hold and internal memory for storing up to 100 test results
1 x PCE-MO 1500 Insulation Resistance Tester
2 x Crocodile Clips
3 x Test Leads (1m each)
8 x 1.5V AA Batteries
1 x Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-MO 1500
