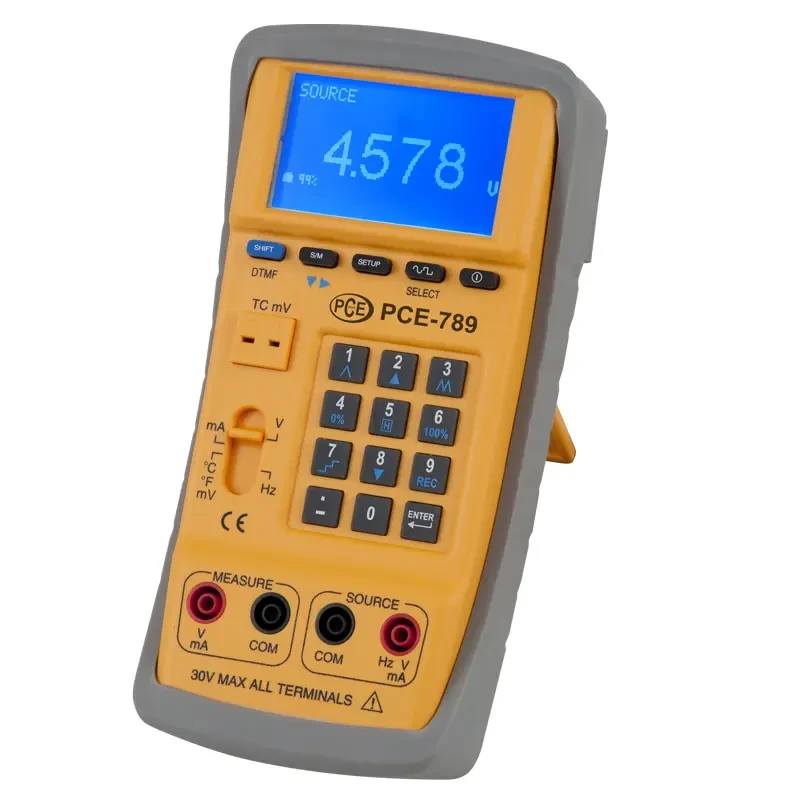

PCE Instruments Multifunction Process Calibrator with Data Logger (PCE-789)
PCE Instruments Multifunction Process Calibrator (PCE-789) is an advanced measuring instrument designed for precise calibration of process signals. This versatile device measures and simulates current, voltage, and thermocouples, making it ideal for laboratory use, industrial applications, and maintenance tasks. The built-in function generator allows users to create custom waveforms for highly specific testing requirements.
The calibration tool with signal simulation can store measurement results for later analysis. The large graphical LCD with backlight ensures clear readability in various lighting conditions.
Specifications and Dimensions
Current Simulation: -4 to 24 mA (1 µA resolution, ±0.03% accuracy)
Voltage Simulation: -3 to 15V (1 mV resolution, ±0.03% accuracy)
Thermocouple Compatibility: K, J, E, T, R, S, N, L, U, B, C
Frequency Range: 0.3 Hz to 20 kHz (0.1 Hz resolution, ±0.002 Hz accuracy)
Data Logging Function: Yes
Function Generator: Sine, triangle, square, and customizable waveforms
Display: Graphical LCD with backlight
Power Supply: Internal rechargeable battery or mains adapter
Battery Life: Long-lasting operation with efficient power management
Operating Temperature: 0 to 50°C (85% RH max)
Storage Temperature: -20 to 60°C (75% RH max)
Dimensions: 214.0 x 98.7 x 56.0 mm
Key Features and Benefits
Measures and simulates current, voltage, and thermocouples
Built-in function generator for waveform creation
Data logging capability for storing and reviewing calibration data
Large graphical LCD with backlight for easy readability
Battery operation for portable use in the field
Robust and durable design suitable for industrial environments
Comes with software and USB connectivity for data transfer
1 x PCE-789 Multifunction Process Calibrator
1 x K-Type Thermocouple Adapter
2 x Crocodile Clips
1 x Mains Adapter
1 x Carrying Case
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-789
