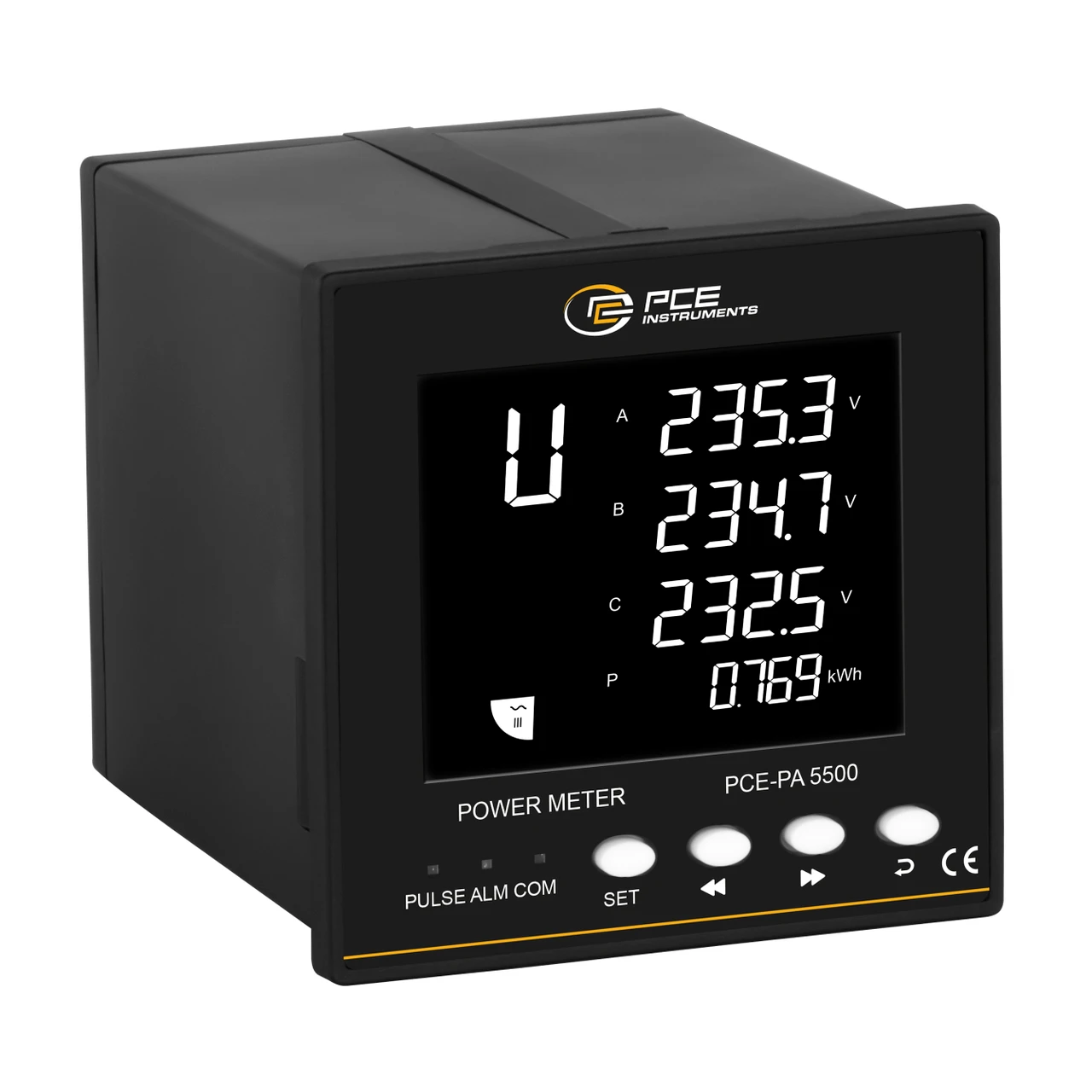

PCE Instruments Digital Power Quality Meter with RS485 (PCE-PA 5500)
PCE Instruments Power Quality Meter (PCE-PA 5500) is a high-precision panel meter designed for real-time monitoring of three-phase networks. It measures key parameters such as voltage, current, power factor, and harmonic analysis, making it an essential tool for industrial and commercial applications.
Equipped with an RS485 Modbus interface, this power quality meter enables seamless integration into existing monitoring systems. Its user-friendly LCD display provides accurate readings, while the included protective front door safeguards the device against dust and moisture.
Specifications and Dimensions
AC Voltage Range: 30 V … 264 V
Resolution: 0.1 V / Accuracy: 0.5%
Overload Protection: 1500 VAC continuous, 2500 VAC for 1 min
AC Current Range: 0.025 A … 5 A
Effective Power Range: 0.75 W … 1320 W
Power Factor Range: -1 … +1
Frequency Range: 45 Hz … 65 Hz
Harmonic Measurement: 1st to 50th order
Display: 3.4-inch backlit LCD
Interface: RS485 (Modbus RTU)
Panel Cut-out Size: 96×96 mm
Protection Class: IP20
Operating Conditions: -20 … 60°C, 0 … 95% rH
Storage Conditions: -20 … 65°C, 30 … 80% rH
Power Supply: 100 … 260 VAC, ~5W
Battery: 1x 3V CR1225 Lithium (50mAh)
Key Features and Benefits
Real-time monitoring of three-phase power systems
Accurately measures voltage, current, and power factor
RS485 Modbus interface for system integration
Harmonic analysis for power quality assessment
Easy-to-read 3.4-inch LCD display with backlight
Protective front cover prevents dust and moisture damage
Compact design for seamless panel mounting
1 x PCE-PA 5500 panel meter
1 x Transparent front door
1 x Slotted screwdriver
1 x Operating instructions
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PA 5500
