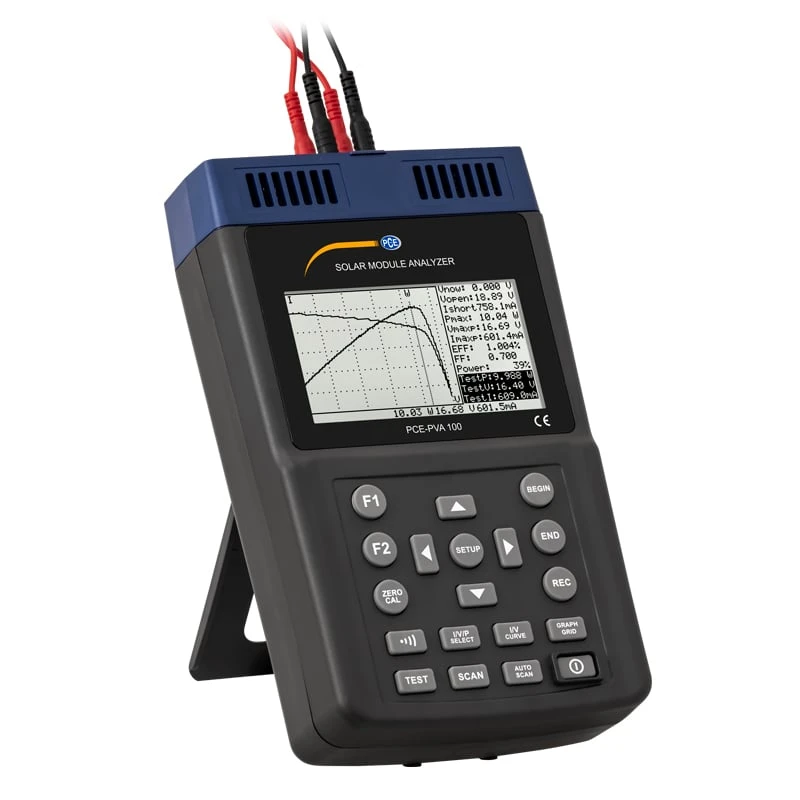

PCE Instruments Solar Module Environmental Meter (PCE-PVA 100)
PCE Instruments Solar Module Environmental Meter (PCE-PVA 100) is a versatile tool for testing the efficiency and performance of solar panels. It measures DC voltage up to 60V and DC current up to 12A, providing a comprehensive analysis of photovoltaic modules.
With automatic and manual test functions, this environmental meter is ideal for analyzing solar modules in research and photovoltaic system maintenance. The included PC interface enables data transfer for in-depth analysis. Its durability and precision make it a valuable tool for professionals working with solar technology.
Specifications and Dimensions
DC Voltage Measuring Range: 0 – 10V (Resolution: 0.001V, Accuracy: ±1%)
DC Voltage Measuring Range: 10 – 60V (Resolution: 0.1V, Accuracy: ±1%)
Direct Current Measuring Range: 0.01 – 10A (Resolution: 1mA, Accuracy: ±1%)
Direct Current Measuring Range: 10 – 12A (Resolution: 10mA, Accuracy: ±1%)
Adjustable Photovoltaic Area: 0.001 – 9999 m²
Adjustable Irradiance: 10 – 1000 W/m²
Display: 4.8” LC display
Data Storage Capacity: 100 measurements
Battery Life: 400 linear measurements from 60 – 0V and 0 – 12A
Operating Temperature: -20 – 60°C / -4 – 140°F
Power Supply: 11.1V, 3400 mAh lithium battery
Dimensions: 257 x 155 x 57 mm / 10.1 x 6.1 x 2.2 in
Weight: 1160 g / 2.6 lbs
Key Features and Benefits
Measures DC voltage and current for solar module testing
Automatic and manual measurement modes
100-measurement data storage for easy record-keeping
PC interface for data transfer and in-depth analysis
Large, backlit LCD screen for clear data display
Supports efficiency and fill factor calculations
Ideal for photovoltaic research and system maintenance
1 x Environmental Meter PCE-PVA 100
1 x Optical USB Cable
2 x Kelvin Clamps
2 x Safety Measuring Lines (100 mm)
1 x Mains Power Adapter
1 x Instruction Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PVA 100
