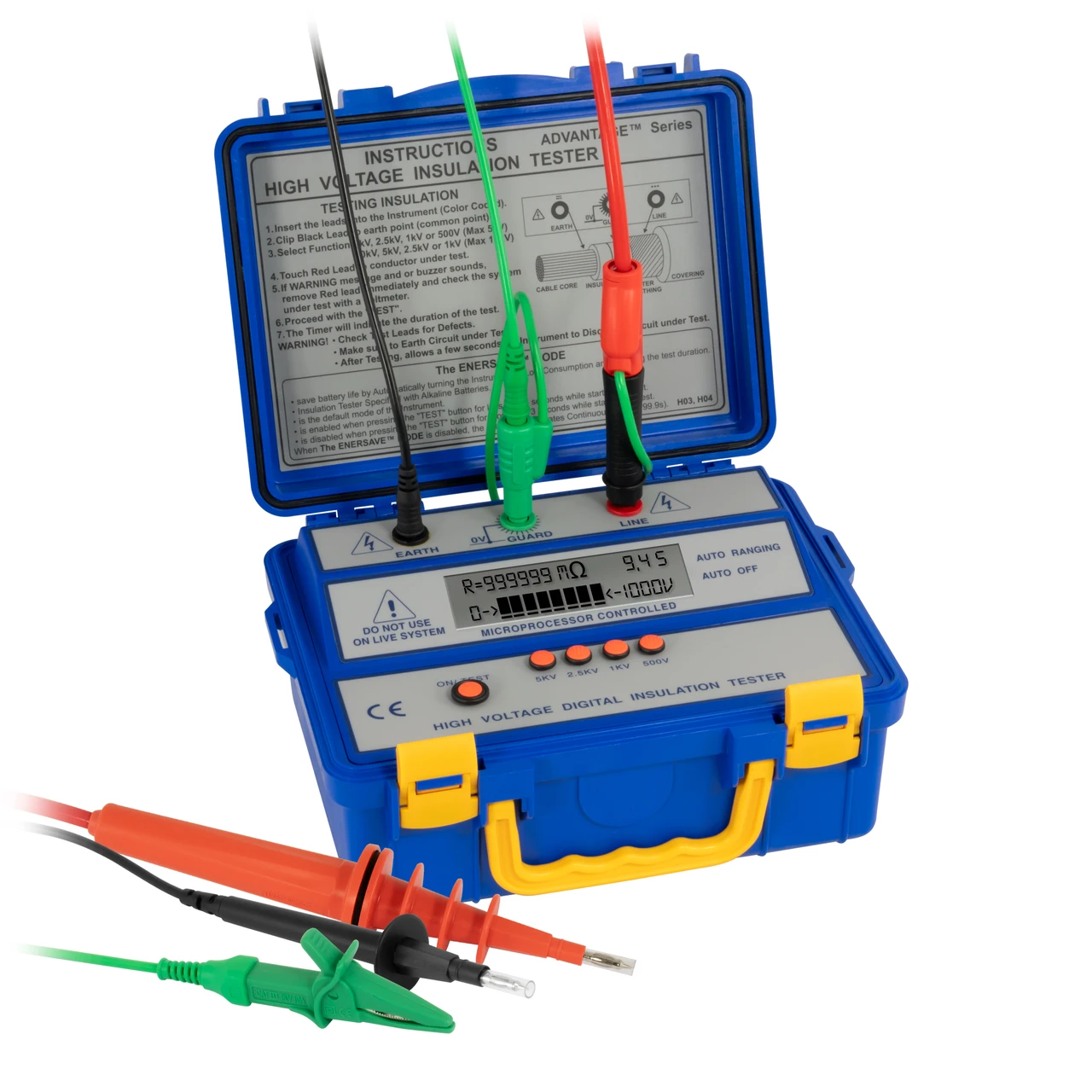

PCE Instruments Insulation Tester – 5kV (PCE-IT413)
PCE Instruments Insulation Tester – 5kV (PCE-IT413) is a professional-grade device designed for high-voltage insulation resistance testing. With test voltages up to 5,000V and resistance measurements up to 300 GΩ, this insulation tester ensures precise readings for industrial and technical applications.
The insulation tester features a 6-digit LCD for clear data display and built-in safety alarms to warn users of hazardous conditions. With compliance to VDE 0413 part 1 and IEC-1010-1 CAT III standards, this device is engineered for accuracy and reliability.
Specifications and Dimensions
DC Test Voltages: 500V, 1,000V, 2,500V, 5,000V
Insulation Resistance Ranges:
Potential Output: Maximum of 1 watt
Insulation Resistance (Enclosure & Conductors): 2000 MΩ / 2000V
Static Voltage Between Enclosure & Circuit: 700V AC (max 1 minute)
AC Warning Circuit: Activates for voltage > 450V AC
Display: 6-digit LCD
Power Supply: 8 x 1.5V AAA batteries
Dimensions: 250 x 110 x 190 mm / 9.8 x 4.3 x 7.5 in
Weight: 1.5 kg / 3.3 lbs
Safety Standards:
IEC-1010-1, CAT III
Electromagnetic Compatibility:
Key Features and Benefits
Measures insulation resistance up to 300 GΩ
Four selectable test voltages up to 5,000V
6-digit LCD display for easy reading
Built-in safety alarms for hazardous voltage detection
Factory-calibrated for precision testing
Includes color-coded silicon test leads and protective cover
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-IT413
