Fieldpiece Standalone Digital Megohm Meter (SMG5)

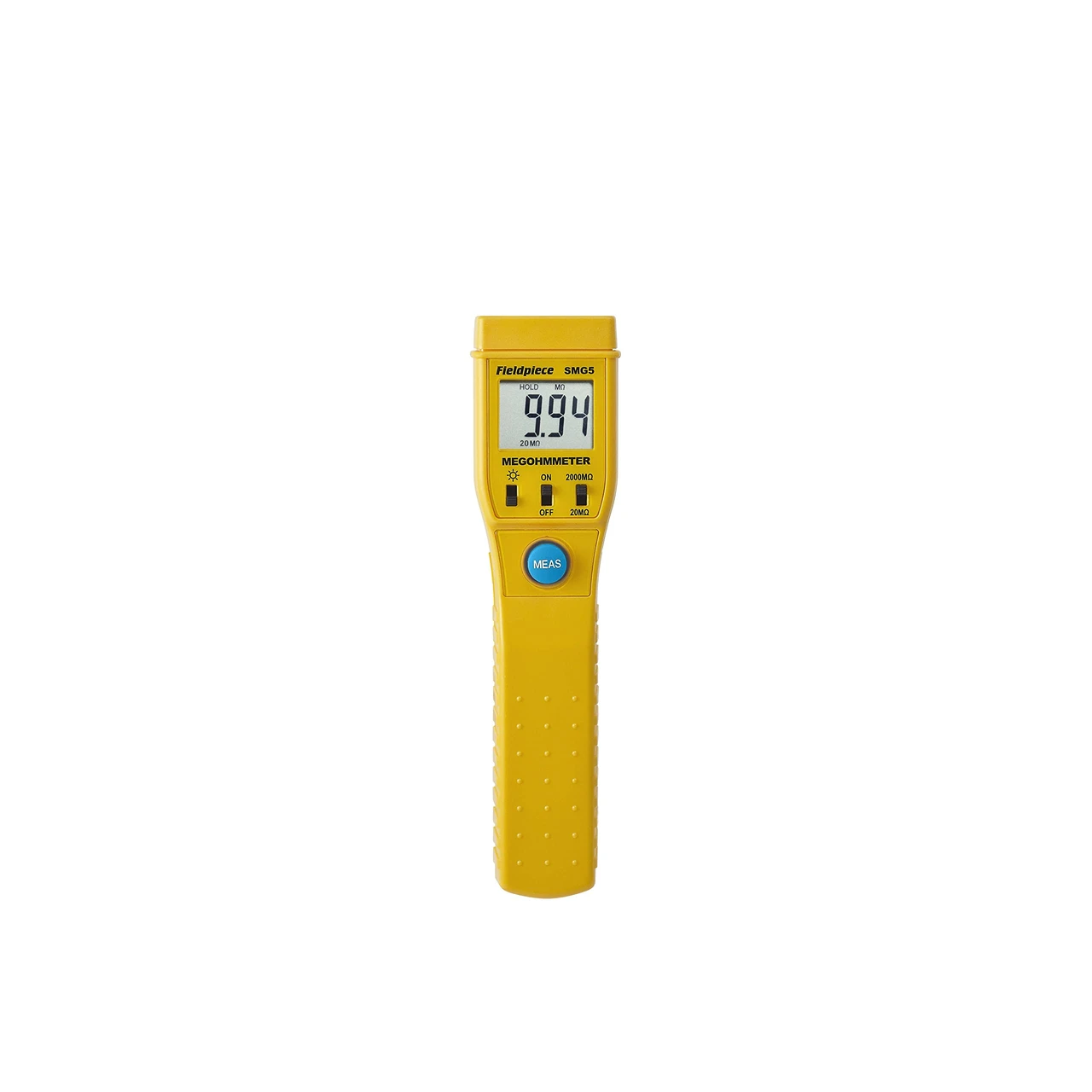

Fieldpiece SMG5 Standalone Digital Megohm Meter
The Fieldpiece digital Mega ohm meter, SMG5, is a compact standalone meter designed for checking HVAC compressor insulation. The SMG5 provides a 1000V voltage source, monitors current, and displays the resistance between the Test points. Maximum current output is < 1MA. It can be used to determine the condition of insulation from winding to ground in a motor, compressor, or transformer. Includes a case, alligator clip lead tip and leads with removable tips. made in United States. Manufactured by Fieldpiece instruments Inc.
Predict compressor failure
1000Vdc stresses insulation to measure up to 2000Mohms
Backlit lcd display
Auto-off to extend battery life

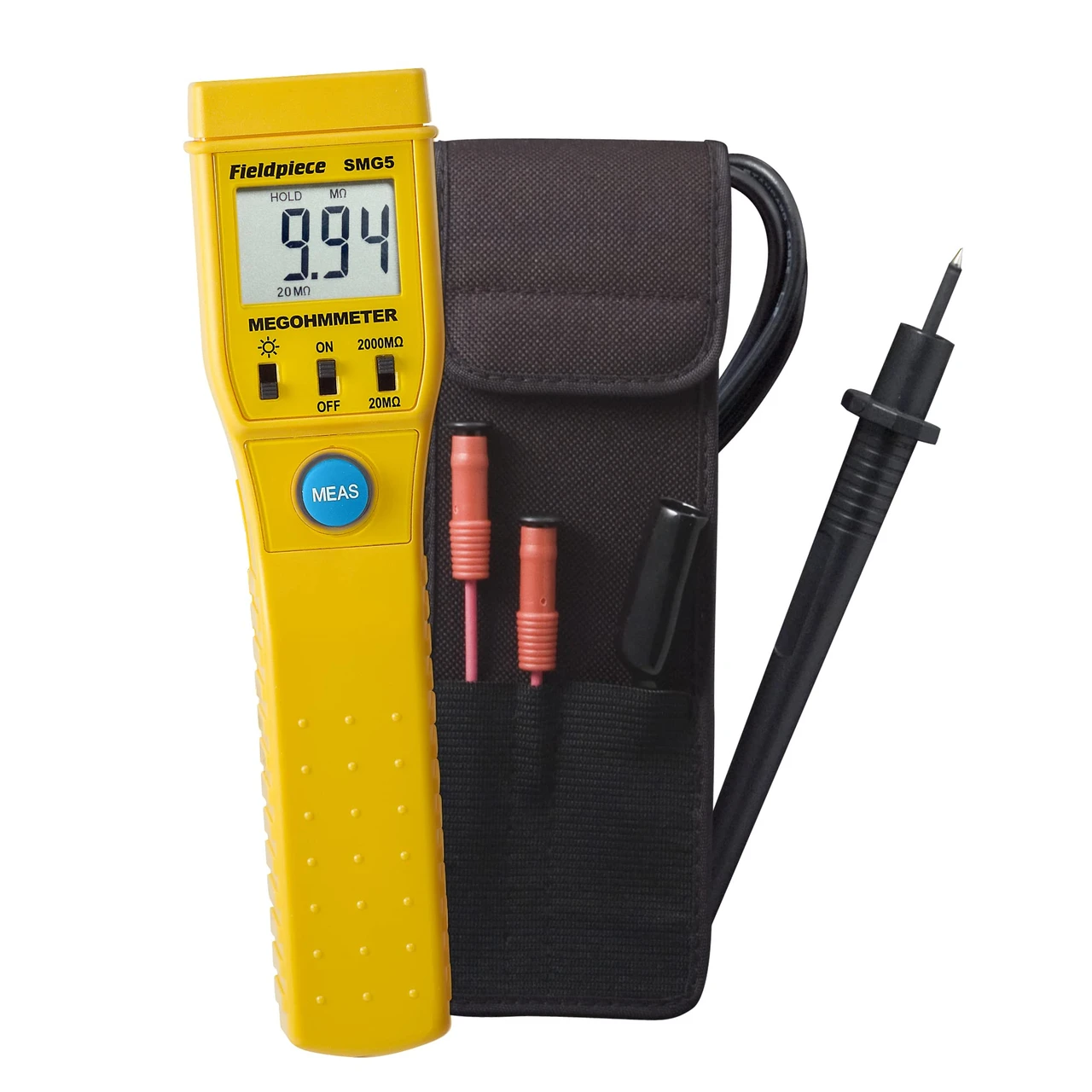

Case, alligator clip, leads with removable tips
Brand: Fieldpiece
Product identification
- Brand: Fieldpiece
- Model / MPN: SMG5
