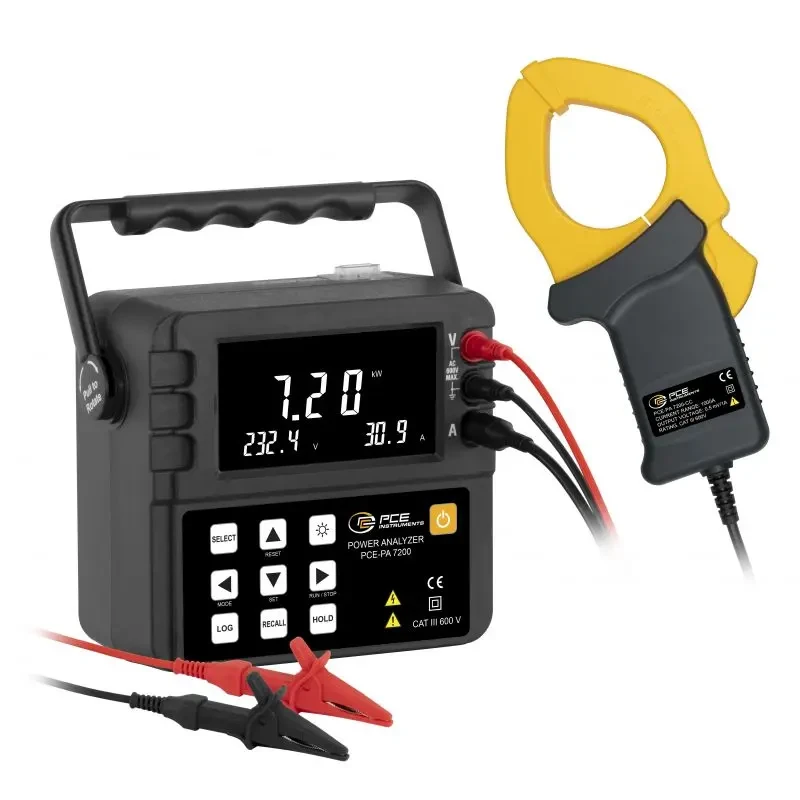

PCE Instruments Digital Power Analyzer (PCE-PA 7200)
PCE Instruments Digital Power Analyzer (PCE-PA 7200) is a precise tool designed for measuring electrical parameters, including AC voltage, AC current, active power, power factor, and energy consumption. With a broad measurement range of 0 to 600 V for voltage and up to 1000 A for current, this analyzer is ideal for industrial and commercial power monitoring applications.
Equipped with an internal memory capable of storing up to 2000 data records, the device allows real-time monitoring and logging. The included PC software enables seamless data transfer, graphical visualization, and export options.
Specifications and Dimensions
AC Voltage Measurement Range: 0 … 600 V
AC Current Measurement Range: 0 … 1000 A
Effective Power Measurement Range: 0 … 9999 kW
Power Factor Range: 0.001 … 1
Effective Energy Measurement Range: 0 … 9999 kWh
Frequency Measurement Range: 45 … 65 Hz
Internal Memory Capacity: 2000 data records
Storage Interval: 1 second
RS232 Interface for Data Transfer
Measurement Opening (Current Clamp): Max. 50 mm
Protection Class: IP30
Device Dimensions: 220 x 195 x 105 mm
Power Supply: 6 x 1.5 V AA batteries
Key Features and Benefits
Measures AC voltage, AC current, power factor, and energy consumption
Real-time data monitoring with RS232 connectivity
Internal memory stores up to 2000 data records
Data visualization via PC software with export options
Adjustable alarms for power, voltage, and current monitoring
HOLD function to freeze and review readings
MIN/MAX function for tracking power fluctuations
Compact and user-friendly design
1 x Power Analyzer PCE-PA 7200
1 x AC Current Clamp
2 x Measuring Leads
1 x PC Software on USB Stick
1 x Data Transfer Cable
1 x Operating Instructions
6 x 1.5 V AA Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-PA 7200
