FiTech EFI 4 600HP System Power Adder Black Finish w/CDI Box (93004)
The FiTech EFI 4 600HP System Power Adder Black Finish w/CDI Box (93004) provides a straightforward path to modern electronic fuel injection for classic engines. Designed for engines producing between 200 and 600 horsepower, this throttle body injection system replaces traditional 4-barrel carburetors, offering improved performance and fuel efficiency. It features a self-tuning ECU, integrated fuel pressure regulator, and compatibility with boosted and nitrous applications.
KEY FEATURES AND BENEFITS:
Self-Tuning Capabilities: Eliminates the need for complex adjustments.
Power Adder Compatibility: Supports turbochargers, superchargers, and nitrous oxide.

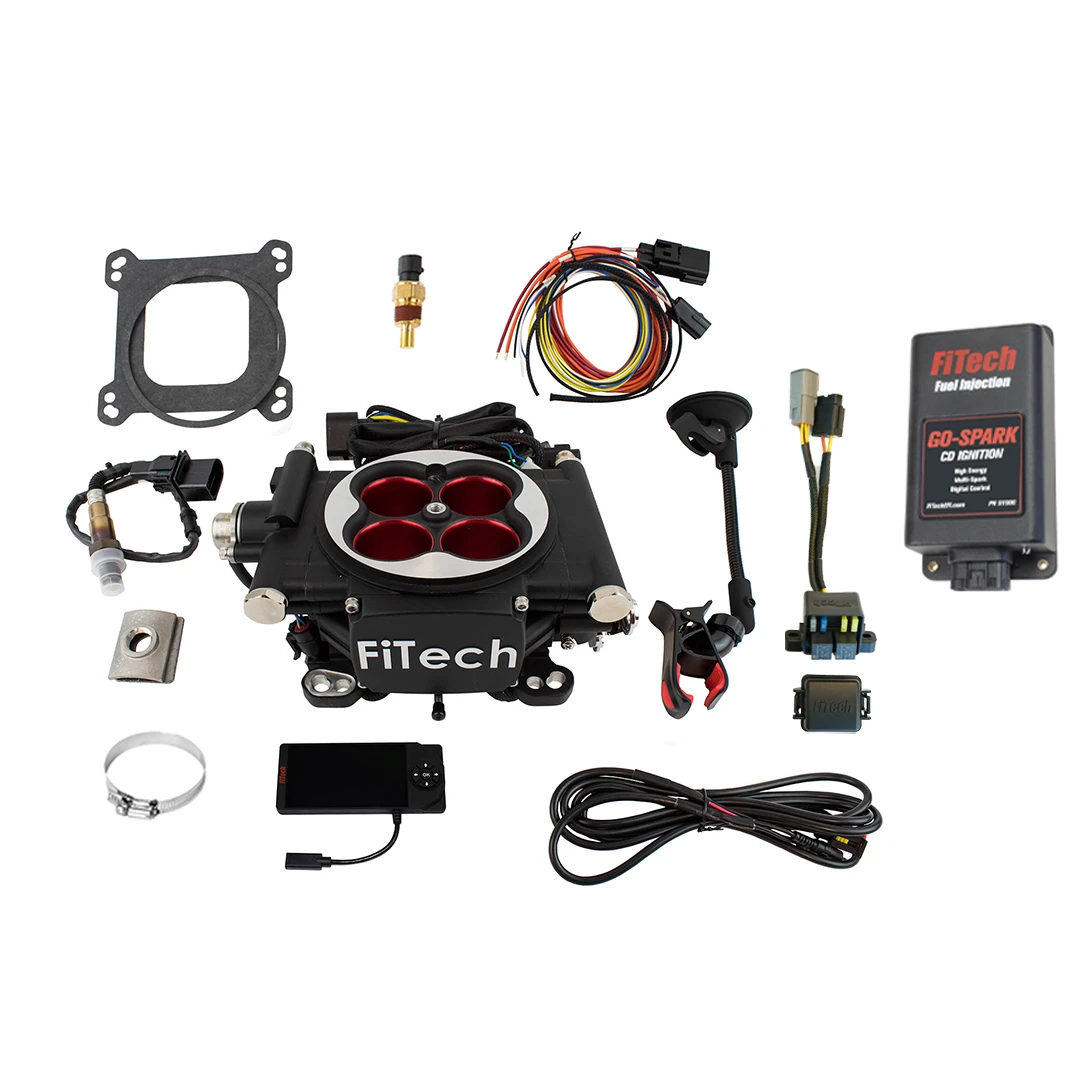

Complete Kit: Includes all necessary sensors, wiring harness, and a hand-held touchscreen controller for easy setup.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Yes
Power Adder Compatible: Yes (Boost/Nitrous)
ECU Included: Yes
Fuel Pump: Not included
Transmission Controller: No
Metering Style: Speed density (MAP-N)
Throttle Body Flange: 4-barrel square bore
Airflow: 850 CFM
Injector Size: 80 lbs./hr.
Venturi Diameter: 43mm
Sensors: Oxygen, MAP, IAT, TPS
Fuel Type: Alcohol, Gasoline, Methanol, Flex
Preparation: Remove the existing 4-barrel carburetor and clean the intake manifold surface.
Installation: Mount the FiTech 93004 throttle body onto the intake manifold using the 4-barrel flange.
Sensor Installation: Install the provided oxygen, MAP, IAT, and TPS sensors.
Wiring: Connect the wiring harness to the vehicle's electrical system, following the provided instructions.
Fuel System: Install a compatible fuel pump and connect the fuel lines to the throttle body's fuel inlet.
ECU Setup: Use the hand-held touchscreen controller to input basic engine parameters and initiate the self-tuning process.
Fine Tuning: Monitor engine performance and make adjustments using the hand-held controller as needed.
BENEFITS OF USING THE FITECH EFI 4 600HP SYSTEM POWER ADDER BLACK FINISH W/CDI BOX (93004):
Improved Fuel Efficiency: Compared to traditional carburetors.
Enhanced Throttle Response: Overall engine performance is improved.
Simplified Transition to EFI: Self-tuning functionality makes it easier.
Compatibility with Boosted and Nitrous Applications: Versatile performance enhancements.
Reduced Maintenance: Lower tuning requirements.
Modern Engine Management: Ideal for classic vehicles.
850 CFM Airflow Capacity: Supports high-performance applications.
Built-In Fuel Pressure Regulator: Maintains optimal pressure.
Hand-Held Touchscreen Controller: For setup and monitoring.
Speed Density Metering: For accurate fuel management.
CDI Box Included: Enhances ignition performance.
43mm Venturi Diameter: Optimizes airflow.
Compatible with Multiple Fuel Types: Increases flexibility in fuel choice.
Three Fuel Inlet Connection Choices: For versatile installation options.
Product identification
- Brand: FiTech
- Model / MPN: 93004
