FiTech efi fuel tank details

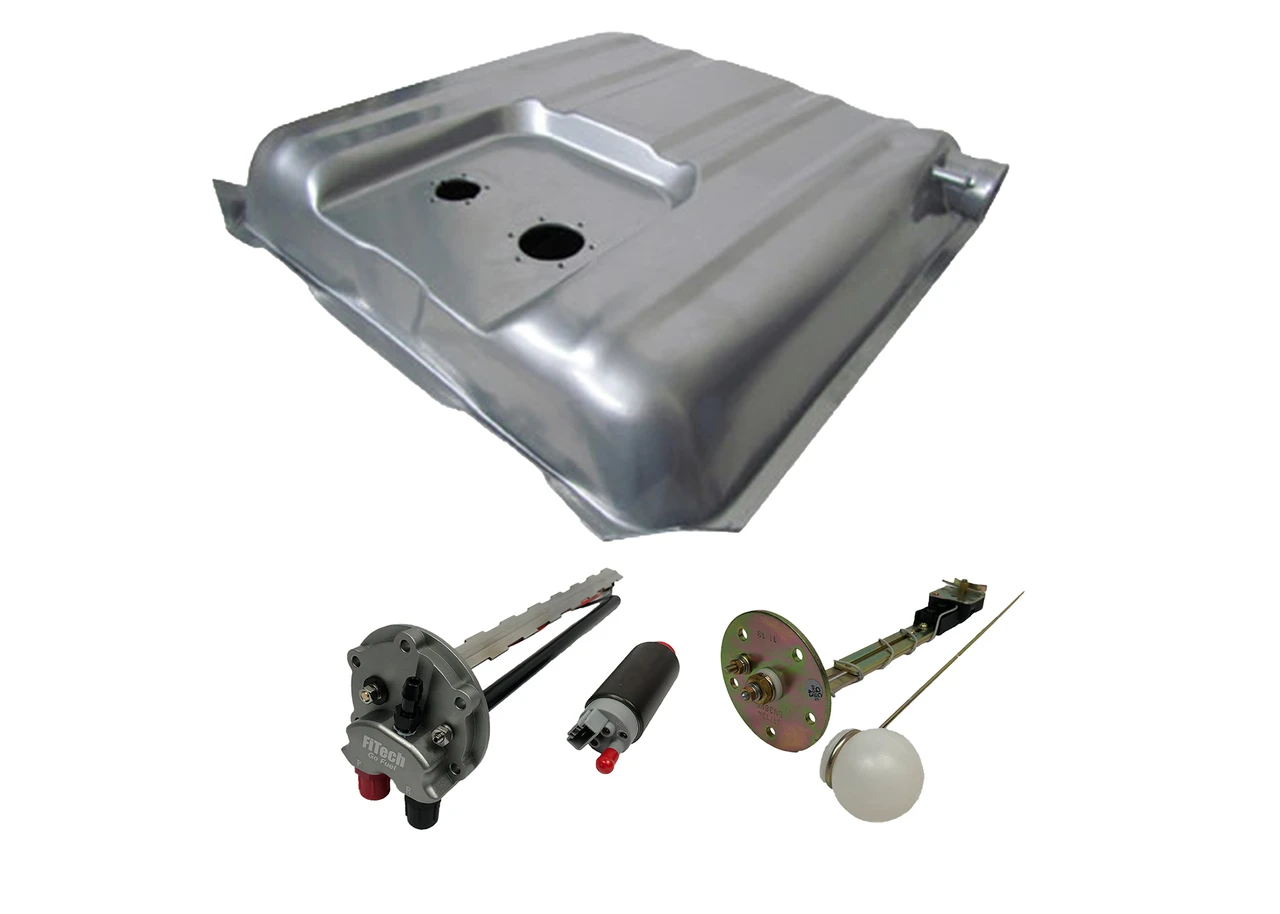

FiTech 1957 Chevy 340 LPH EFI Fuel Tank Kit (58005)
KEY FEATURES AND BENEFITS:
Complete EFI Upgrade: Includes everything needed for a fuel system upgrade.
High-Flow Fuel Pump: The 340 LPH pump supports up to 800 HP.
Baffled Fuel Tank: Prevents fuel starvation during cornering and acceleration.
Factory Gauge Compatibility: The 0-30 ohm sending unit works with existing gauges.
Secure Connections: -6 AN inlet and outlet ports for leak-free fuel lines.
Direct Fit: Designed for 1957 Chevrolet vehicles, with adaptable universal fit.
Fuel Tank Capacity: 15.5 gallons
Fuel Pump Flow Rate: 340 LPH (90 GPH)
Fuel Pump Type: In-Tank
Sending Unit: 0-30 ohm
Inlet/Outlet Ports: -6 AN male O-ring
Tank Material: Steel, powdercoated silver
Compatibility: 1957 Chevrolet, Universal Fit adaptable
Dimensions: 27 × 12 × 32 inches
Remove the existing fuel tank from your vehicle.
Install the new FiTech 58005 fuel tank using the provided mounting straps.
Connect the fuel lines to the -6 AN inlet and outlet ports.
Install the sending unit and connect it to your vehicle's wiring.
Connect the in-tank fuel pump to the vehicle's electrical system.
Install the provided filler neck.
Verify all connections and test the fuel system for leaks.
BENEFITS OF USING THE FITECH 1957 CHEVY 340 LPH EFI FUEL TANK KIT (58005):
Simplified EFI conversion process.
Improved fuel efficiency and engine performance.
Reduced risk of fuel starvation.
Easy installation with included components.
Modern fuel system solution for classic vehicles.
Internal Baffling: Engineered internal structures to maintain consistent fuel supply.
Recessed Pump Mount: Increased clearance within the tank.
OEM Style Tank Design: Matches factory aesthetics and functionality.
Included Mounting Hardware: For straightforward installation.
-6 AN Fittings Supplied: For secure and leak-free connections.
Product identification
- Brand: FiTech
- Model / MPN: 58005
FiTech fuel tank kit: see the listed specifications for this model.
