FiTech efi fuel tank details

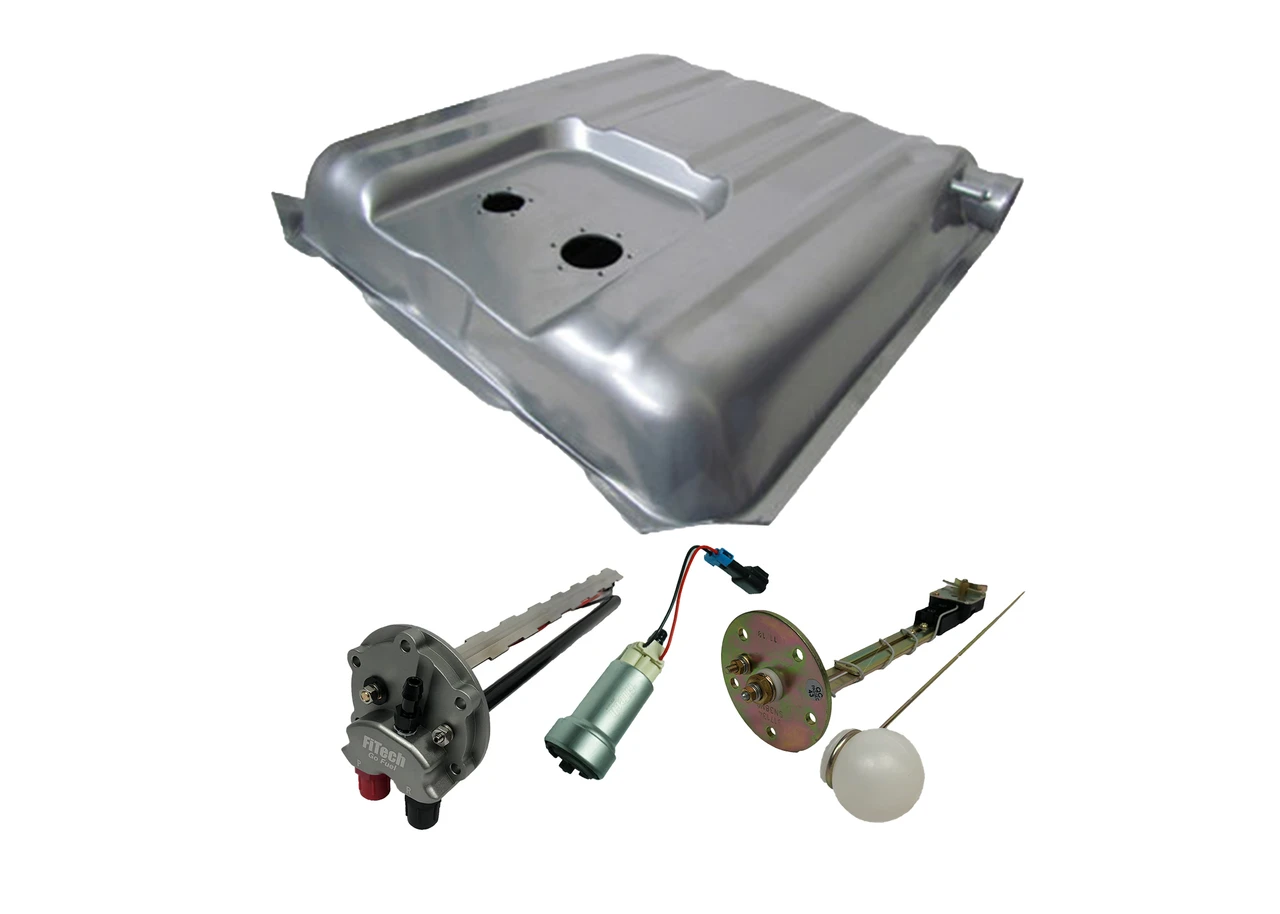

FiTech 1957 Chevy 440 LPH EFI Fuel Tank Kit (58105)
KEY FEATURES AND BENEFITS:
The integrated FiTech "Go Fuel" in-tank module houses a 440 LPH fuel pump, supporting engines up to 1000 horsepower.
The included 0-30 ohm sending unit ensures compatibility with factory gauges.
The kit also includes mounting straps and a filler neck.
The -6 AN inlet/outlet ports provide secure, leak-free fuel line connections.
Vehicle Compatibility: 1957 Chevy, Universal with modifications.
Fuel Tank Capacity: 15.5 gallons
Fuel Pump: 440 LPH (116 gph)
Horsepower Rating: Up to 1000 HP
Sending Unit: 0-30 ohm
Inlet/Outlet Ports: -6 AN
Tank Material: Steel, silver powder-coated
Baffled Sump: Yes
Remove the existing fuel tank from the vehicle.
Install the FiTech 58105 tank, ensuring proper alignment with the vehicle's mounting points.
Secure the tank with the included mounting straps.
Connect the fuel lines to the -6 AN inlet and outlet ports.
Install the sending unit, making necessary electrical connections.
Connect the filler neck.
Wire the fuel pump module to the vehicle's electrical system, following FiTech's instructions.
Verify all connections, and test the fuel system.
BENEFITS OF USING THE FITECH 1957 CHEVY 440 LPH EFI FUEL TANK KIT (58105):
Supports high-horsepower engines.
Simplifies the EFI upgrade process.
Maintains compatibility with factory gauges.
Reduces the risk of fuel starvation.
Reliable fuel pressure.
Recessed Mount: Provides added clearance for the sending unit and fuel pump.
High Flow Pump: Supplies ample amounts of fuel for high power engines.
OEM Style Sending Unit: For compatibility with factory gauge systems.
Product identification
- Brand: FiTech
- Model / MPN: 58105
FiTech fuel tank kit: see the listed specifications for this model.
