FiTech efi fuel tank details
FiTech 1964-1967 Buick Skylark 440 LPH EFI Fuel Tank Kit (58139)
KEY FEATURES AND BENEFITS:
Integrated FiTech Go Fuel Module: Houses a powerful 440 LPH fuel pump, capable of supporting up to 1000 horsepower.
Complete Kit: Includes a fuel sending unit, tank straps, and -6 AN inlet/outlet ports for secure, leak-free connections.
Recessed Design: The sending unit and pump mount provide added clearance, simplifying installation.
Vehicle Compatibility: 1964-67 Buick Special, 1964-67 Buick Skylark
Tank Material: Coated Steel
Fuel Pump Flow Rate: 440 LPH
Horsepower Rating: Up to 1000 HP
Inlet/Outlet Ports: -6 AN
Dimensions: 28 × 13 × 47 inches

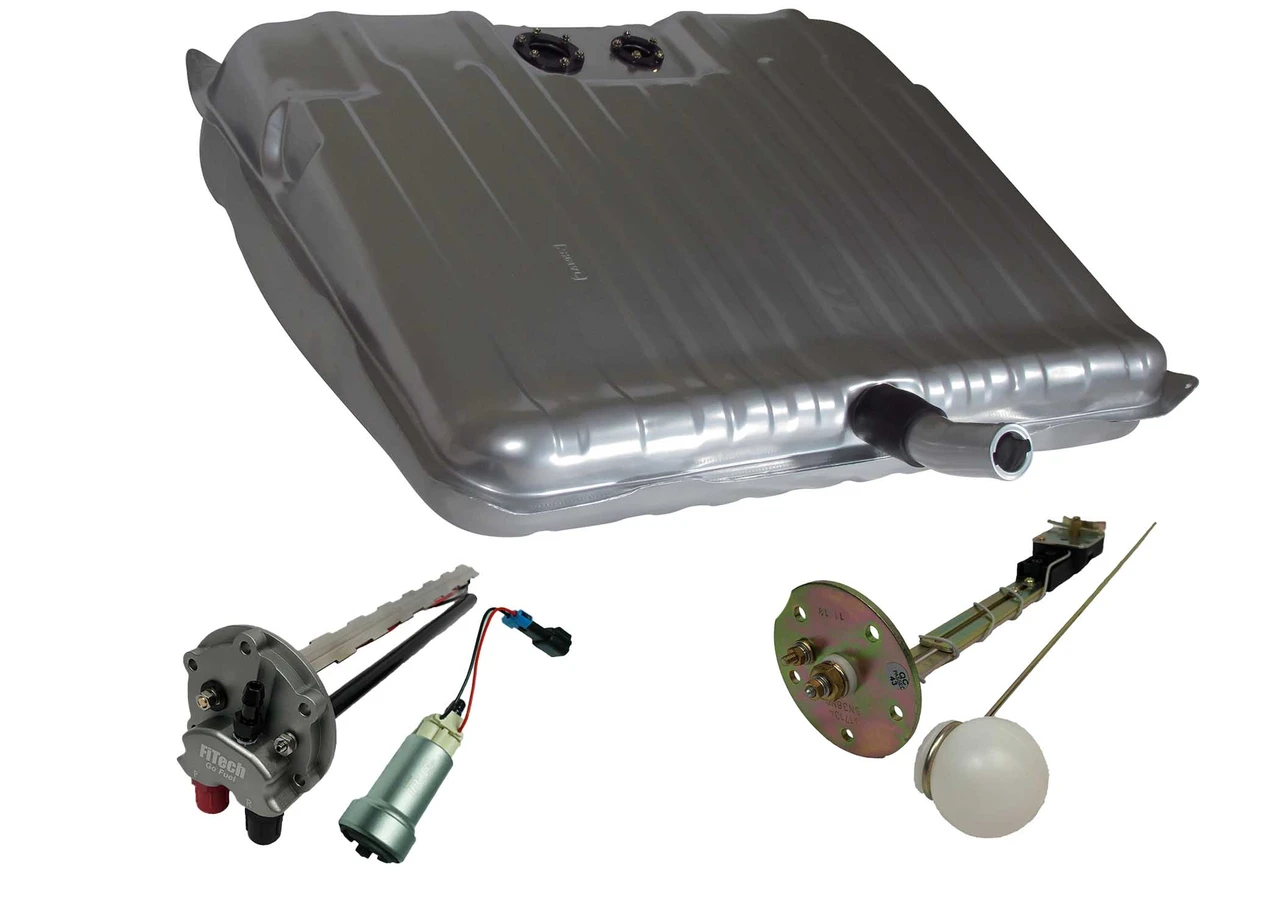

Included Components: Gas tank, fuel sending unit, tank straps, in-tank pump module, 440 LPH fuel pump
Remove Existing Fuel Tank: Safely drain and remove the original fuel tank from the vehicle.
Install New Tank Straps: Secure the provided tank straps to the vehicle's frame.
Position the New Tank: Carefully position the new FiTech Go EFI fuel tank into place.
Connect Fuel Lines: Attach the -6 AN fuel lines to the inlet and outlet ports, ensuring a tight and secure connection.
Connect Sending Unit Wiring: Connect the wiring harness from the sending unit to the vehicle's electrical system.
Install In-Tank Module: The fuel pump module is already installed; verify secure fit.
Secure Tank: Tighten the tank straps to secure the tank in place.
Test System: Fill the tank with fuel and test the fuel system for leaks and proper operation.
BENEFITS OF USING THE FITECH 1964-1967 BUICK SKYLARK 440 LPH EFI FUEL TANK KIT (58139):
Complete EFI Conversion Solution: Provides a direct-fit solution for easy upgrades.
High-Horsepower Support: Equipped with a 440 LPH pump for performance applications.
Leak-Free Connections: -6 AN ports enhance security and reliability.
Simplified Installation: Recessed design for sender and pump improves ease of setup.
Reliable Fuel Supply: Ensures optimal performance for modern fuel injection systems.
Integrated Internal Baffles: Stabilize fuel flow and prevent sloshing.
Pre-Installed Fuel Pump: 440 LPH for high-performance needs.
-6 AN Fitting Ports: Ensure proper fuel connections.
Corrosion Resistance: Coated steel construction for durability.
Complete Hardware Package: Includes all required components for installation.
Direct Fit Design: Specifically engineered for the specified Buick models.
Product identification
- Brand: FiTech
- Model / MPN: 58139
FiTech fuel tank kit: see the listed specifications for this model.
