FiTech efi fuel tank details

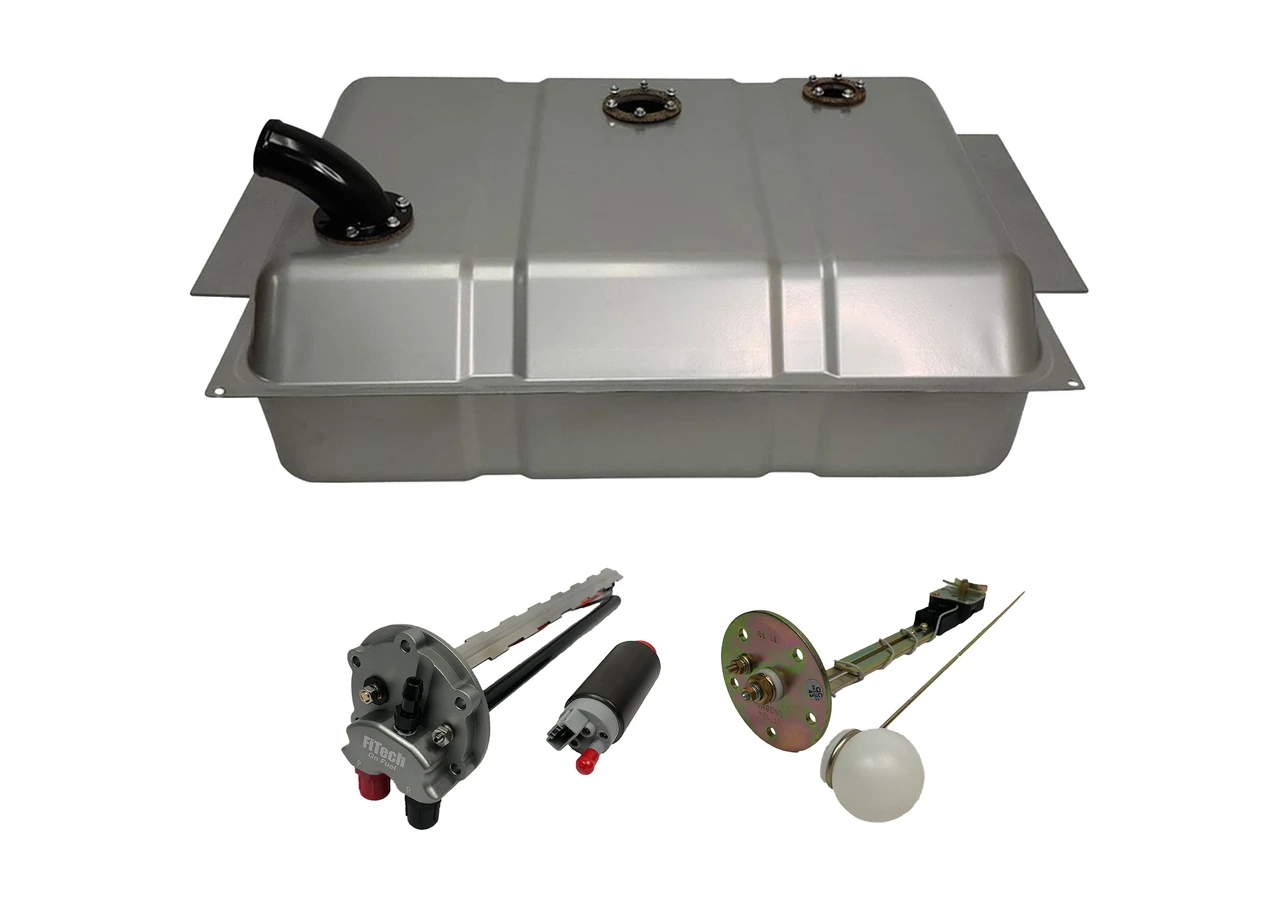

FiTech 1963-66 Chevy Truck Side Fill 340LPH EFI Fuel Tank Kit (58047)
KEY FEATURES AND BENEFITS:
Direct-fit tank: 18-gallon steel fuel tank specifically designed for 1963-1966 Chevy trucks.
High-performance pump: Integrated 340 LPH fuel pump, supporting up to 800 HP.
Sending unit included: Ensures accurate fuel level readings.
Secure connections: -6 AN inlet/outlet fittings provide leak-free fuel line connections.
Recessed mounts: Pump and sending unit mounts for added clearance.
Baffled sump: Welded into the tank for improved performance.
Corrosion resistance: Silver powder-coated finish enhances durability.
Tank Capacity: 18 gallons
Fuel Pump Flow Rate: 340 LPH (90 GPH)
Horsepower Rating: 800 HP
Fitting Size: -6 AN
Finish: Silver powder-coated
Dimensions: 28 × 11 × 47 in
Vehicle Fitment: 1963-1966 Chevrolet Trucks
Preparation: Drain the existing fuel tank and disconnect all fuel lines and electrical connections.
Removal: Remove the old fuel tank from the vehicle.
Installation: Position the FiTech 58047 tank in the vehicle's mounting location.
Mounting: Secure the tank using the provided mounting hardware.
Connection: Attach the -6 AN fuel lines to the inlet and outlet fittings.
Electrical connections: Connect the fuel pump and sending unit wiring to the vehicle's electrical system.
Testing: Fill the tank with fuel and test the fuel pump and sending unit for proper operation.
Final check: Inspect all connections for leaks and ensure secure mounting.
BENEFITS OF USING THE FITECH 1963-66 CHEVY TRUCK SIDE FILL 340LPH EFI FUEL TANK KIT (58047):
Simplified conversions: Provides a complete fuel system solution for EFI upgrades.
Reduced clutter: Eliminates the need for external fuel pumps, minimizing potential leak points.
Modern system: Upgrades classic vehicles with contemporary fuel technology.
Prevents starvation: Internal baffling design protects against fuel starvation.
Future-ready: High flow pump supports potential future engine upgrades.
Quick installation: Direct fitment reduces installation time and complexity.
Integrated in-tank pump module: Simplifies installation and enhances reliability.
Pre-welded baffled sump: Improves performance during dynamic driving conditions.
Recessed sending unit: Facilitates a clean and efficient installation.
Durable fittings: -6 AN male fittings ensure secure connections.
Included hardware: Comes with mounting hardware for easy installation.
Product identification
- Brand: FiTech
- Model / MPN: 58047
FiTech fuel tank kit: see the listed specifications for this model.
