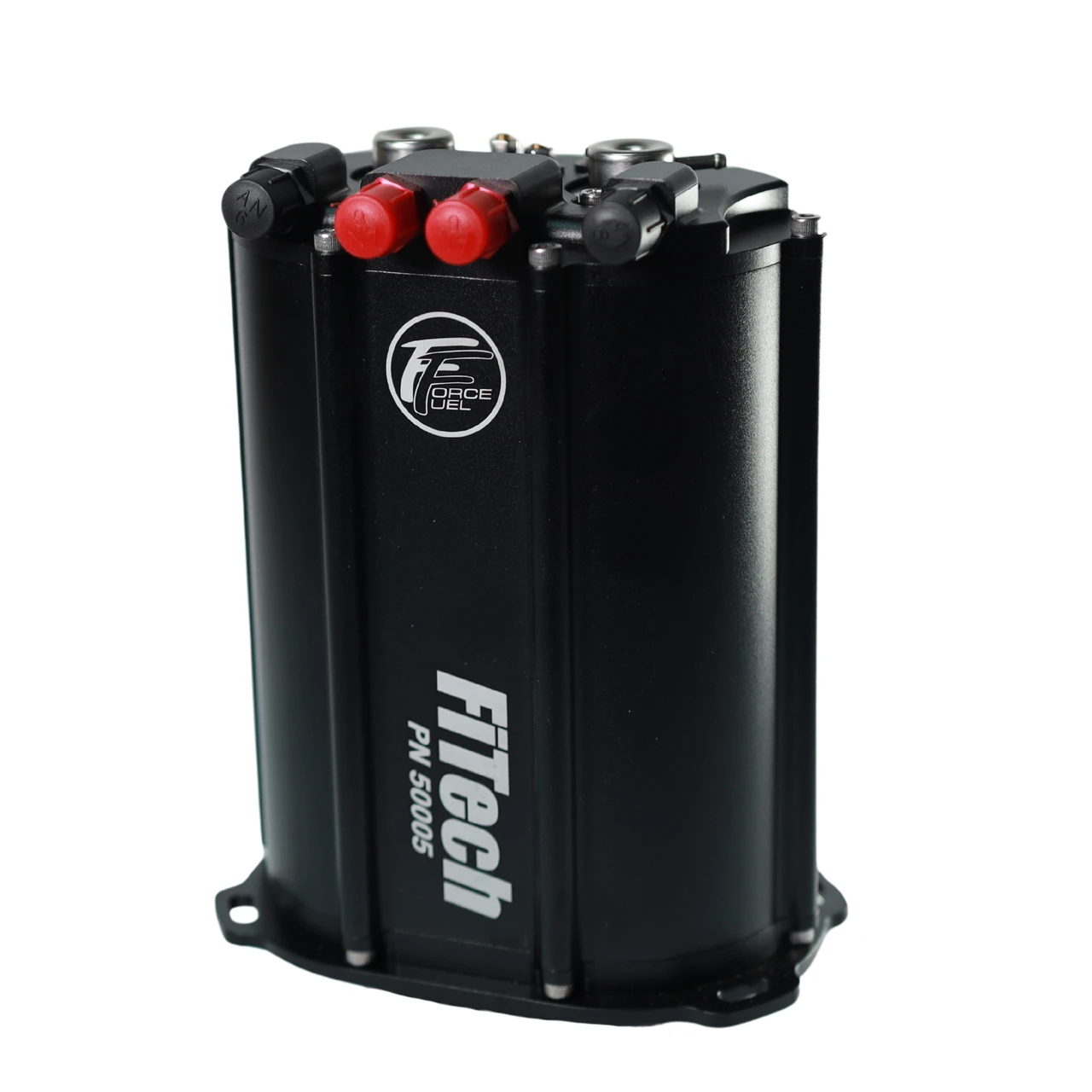

FiTech 1600HP Dual Pump Force Fuel Surge Tank (50005)
KEY FEATURES AND BENEFITS:
High Horsepower Support: This system supports engines up to 1,600 horsepower on gasoline, utilizing dual 340 LPH internal fuel pumps.
Consistent Fuel Pressure: Integrated fuel pressure regulators maintain a steady 58 PSI.
Reservoir Capacity: The 0.5-gallon reservoir ensures a constant fuel supply.
Fuel Compatibility: The system is compatible with E-85, alcohol, and methanol fuels.
Flexible Installation: The robust, versatile mounting bracket allows for flexible installation options.
Horsepower Support: Up to 1,600 HP (gasoline)
Fuel Pumps: Dual 340 LPH
Fuel Pressure: 58 PSI (regulated)
Capacity: 0.5 gallon
Inlet/Outlet: -6 AN, female O-ring
Filtration: 10-micron
Fuel Compatibility: Gasoline, E-85, alcohol, methanol
Mount the Surge Tank: Use the provided bracket to securely place the FiTech 50005.
Connect Inlet Ports: Attach the inlet ports to your existing fuel pump's output using appropriate -6 AN fittings.
Connect Outlet Ports: Connect the outlet ports to your EFI system's fuel rail using -6 AN fittings.
Wire the Fuel Pumps: Use the heavy-duty terminals, following the manufacturer's wiring diagram.
Check for Leaks: Inspect all connections for leaks and ensure proper grounding.
Start the Vehicle: Monitor the fuel pressure gauge to verify consistent 58 PSI.
BENEFITS OF USING THE FITECH 1600HP DUAL PUMP FORCE FUEL SURGE TANK (50005):
Simplifies EFI upgrades by working with existing fuel systems.
Supports high-horsepower engines up to 1,600 HP.
Provides compatibility with various fuel types, including E-85 and methanol.
Offers flexible mounting options for easy installation.
Dual Internal Pumps: Two 340 LPH pumps for enhanced performance.
Pressure Regulation: Internal fuel pressure regulation at 58 PSI.
Surge Protection: Half-gallon fuel reservoir for surge protection.
Serviceable Filter: 10-micron fuel filter for effective filtration.
Versatile Mounting Bracket: Designed for side or bottom installation.
-6 AN Connections: Inlet and outlet connections for secure fitting.
Fuel Pressure Gauge: Easy-to-read gauge for monitoring fuel pressure.
Heavy-Duty Wiring Terminals: Reliable electrical connections for durability.
Product identification
- Brand: FiTech
- Model / MPN: 50005
