FiTech efi fuel tank details

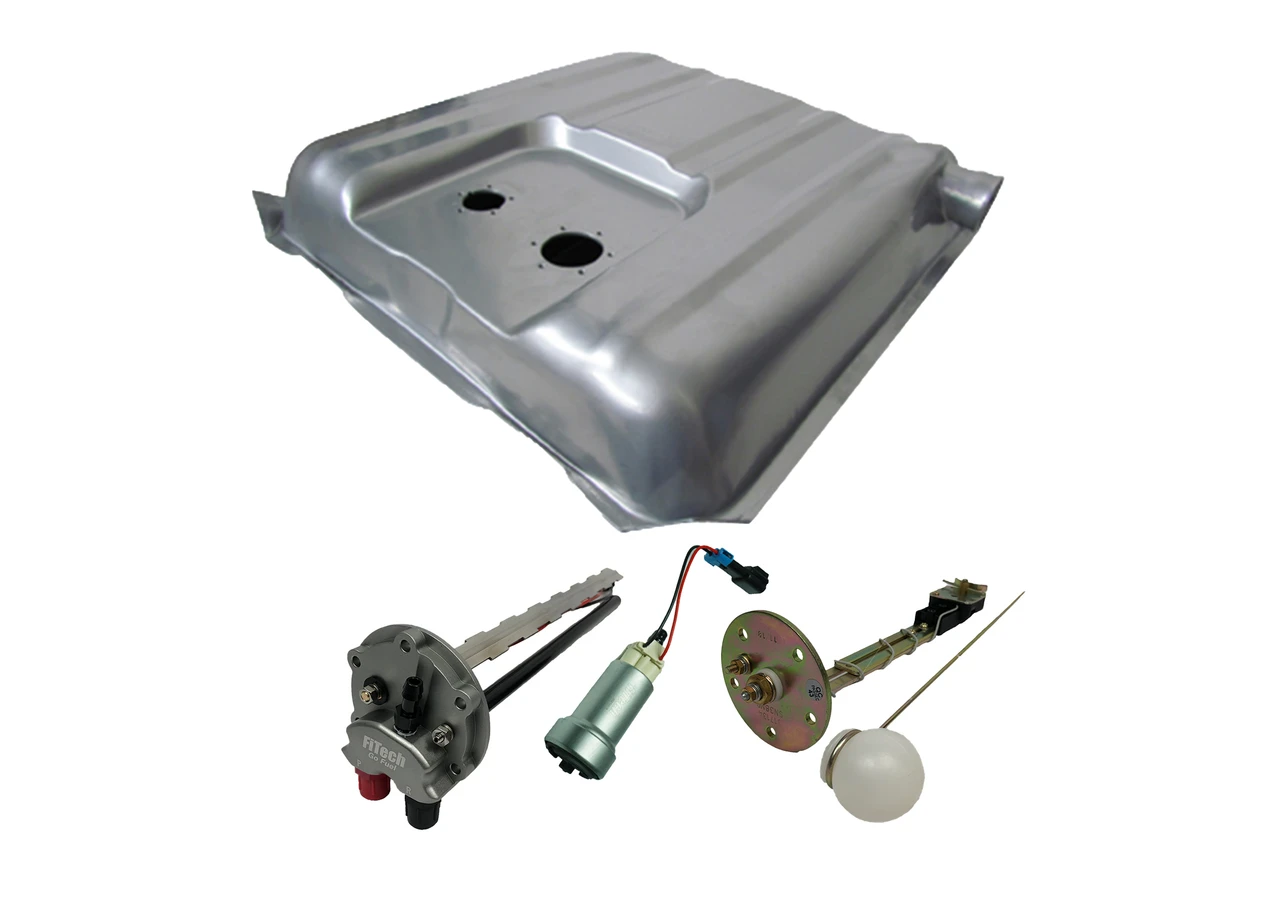

FiTech 1955-1956 Chevy 440 LPH EFI Fuel Tank Kit (58104)
KEY FEATURES AND BENEFITS:
This kit includes a high-capacity 440 liters per hour (LPH) in-tank electric fuel pump, ensuring consistent fuel pressure for EFI systems.
The direct-fit tank features internal baffles to prevent fuel starvation, even during aggressive driving.
AN-6 inlet/outlet fittings provide leak-free fuel line connections.
The recessed sending unit and pump mount offer added clearance.
The kit comes complete with tank straps and a 0-30 ohm sending unit.
This comprehensive package simplifies the conversion to EFI, improving engine performance and fuel efficiency.
Fuel Pump Capacity: 440 LPH
Horsepower Rating: Up to 1000 HP
Fitting Type: AN-6
Sending Unit: 0-30 ohm
Tank Design: Baffled, direct-fit
Compatibility: 1955-1956 Chevrolet models (150, 210, Bel Air, Delray)
Designed for: LS and LT engine swaps
Preparation: Drain the existing fuel tank and remove it from the vehicle.
Installation of New Tank: Position the FiTech fuel tank into the vehicle and secure it using the included tank straps.
Pump Module Installation: Ensure the 440 LPH fuel pump module is correctly seated within the tank's recessed mount.
Sending Unit Installation: Install the 0-30 ohm sending unit into its designated location on the tank.
Fuel Line Connections: Connect the AN-6 fuel lines to the inlet and outlet ports on the tank, ensuring a tight and leak-free seal.
Electrical Connections: Connect the fuel pump and sending unit wiring to the vehicle's electrical system, following the manufacturer's instructions.
Venting and Filtration: Install the vent filter.
Testing: Fill the tank with fuel and test the fuel system for leaks and proper operation.
BENEFITS OF USING THE FITECH 1955-1956 CHEVY 440 LPH EFI FUEL TANK KIT (58104):
Simplified installation for engine swaps.
Increased engine performance and fuel efficiency.
Reliable fuel system with high-quality components.
Eliminates external fuel pump mounting.
Integrated in-tank 440 LPH fuel pump module.
Internal baffling within the fuel tank to stabilize fuel during vehicle movement.
Recessed mounting points for the fuel pump and sending unit.
Included tank mounting straps.
Included 0-30 ohm fuel sending unit.
Vent filter included.
Product identification
- Brand: FiTech
- Model / MPN: 58104
FiTech fuel tank kit: see the listed specifications for this model.
