FiTech efi fuel tank details

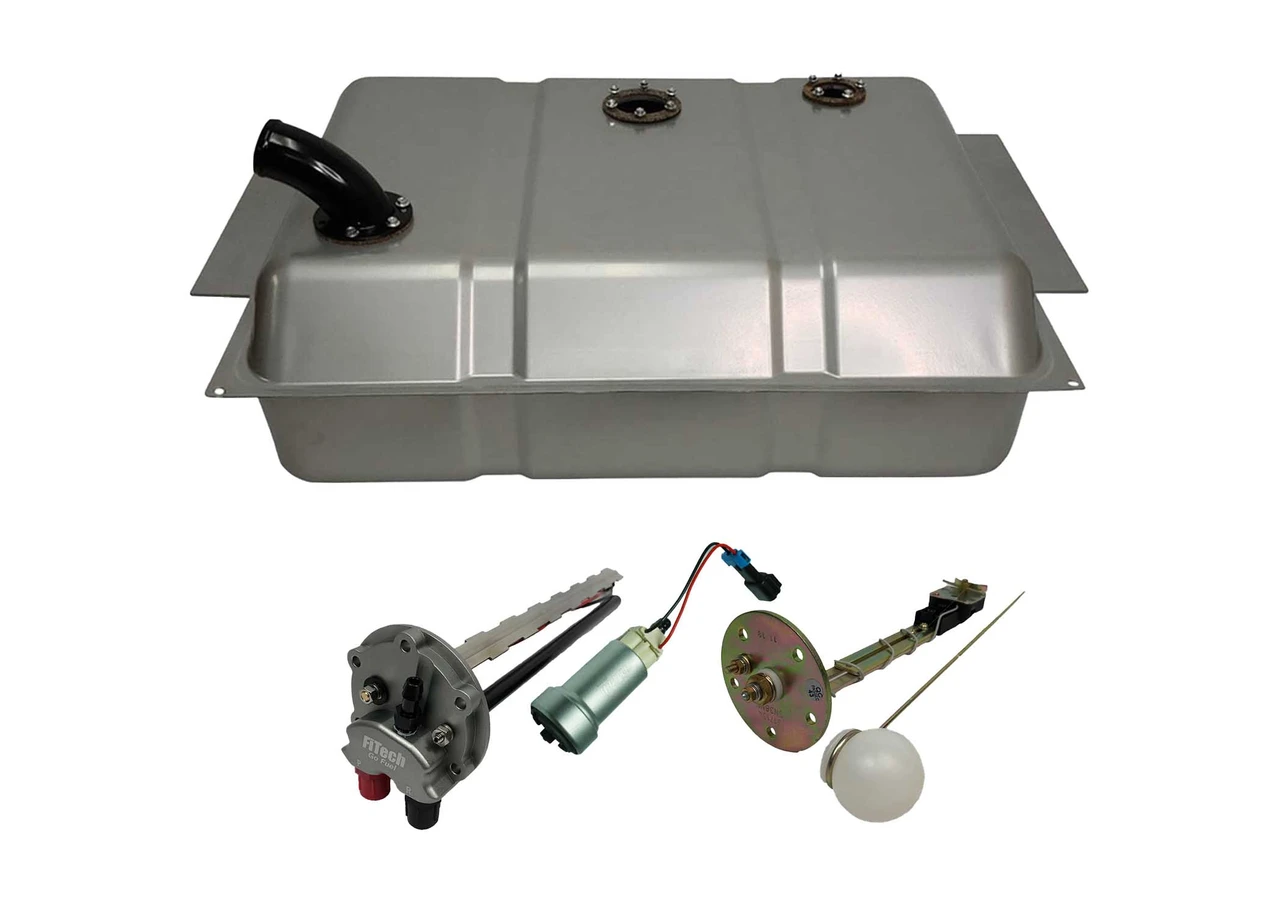

FiTech 1963-66 Chevy Truck Side Fill 440 LPH EFI Fuel Tank Kit (58147)
KEY FEATURES AND BENEFITS:
Direct-fit design: 18-gallon steel fuel tank specifically for 1963-1966 Chevy Trucks with side fill.
High-capacity pump: Integrated 440 LPH in-tank fuel pump, supporting up to 1000 horsepower.
Accurate readings: Includes fuel sending unit for precise fuel level monitoring.
Secure connections: -6 AN inlet and outlet fittings for leak-free fuel line connections.
Complete installation kit: Includes mounting hardware and straps for straightforward setup.
Vehicle Compatibility: 1963-1966 Chevrolet Trucks (Side Fill)
Tank Capacity: 18 Gallons
Fuel Pump Flow Rate: 440 LPH
Fuel Pump Type: In-Tank Electric
Fitting Size: -6 AN (Inlet/Outlet)
Material: Steel (Powder Coated Silver)
Sending Unit: Included
Baffled Sump: Yes
Preparation: Drain and remove the existing fuel tank from the vehicle.
Installation: Position the new FiTech 58147 fuel tank into the designated location.
Pump Installation: The 440 LPH fuel pump module is pre-installed in the tank; verify the connections.
Sender Installation: The sending unit is pre-installed; verify the connections.
Fuel Line Connections: Connect the -6 AN fuel lines to the inlet and outlet fittings on the tank.
Electrical Connections: Connect the electrical wiring for the fuel pump and sending unit according to the provided instructions.
Tank Straps: Secure the tank using the provided mounting straps and hardware.
Testing: Fill the tank with fuel and test the fuel system for leaks and proper operation.
BENEFITS OF USING THE FITECH 1963-66 CHEVY TRUCK SIDE FILL 440 LPH EFI FUEL TANK KIT (58147):
Simplified conversion: Streamlines the EFI upgrade process for classic Chevy trucks.
High-capacity support: Fuel pump supports high horsepower applications.
Durable construction: Steel design ensures long-lasting performance.
Modernization: Updates the fuel system of older vehicles.
Recessed mounts: Pump and sending unit mounts increase clearance.
Corrosion resistance: Powder-coated finish for durability.
Partnership with TANKS Inc: Ensures quality and reliability.
Includes tank straps: For secure installation.
Product identification
- Brand: FiTech
- Model / MPN: 58147
FiTech fuel tank kit: see the listed specifications for this model.
