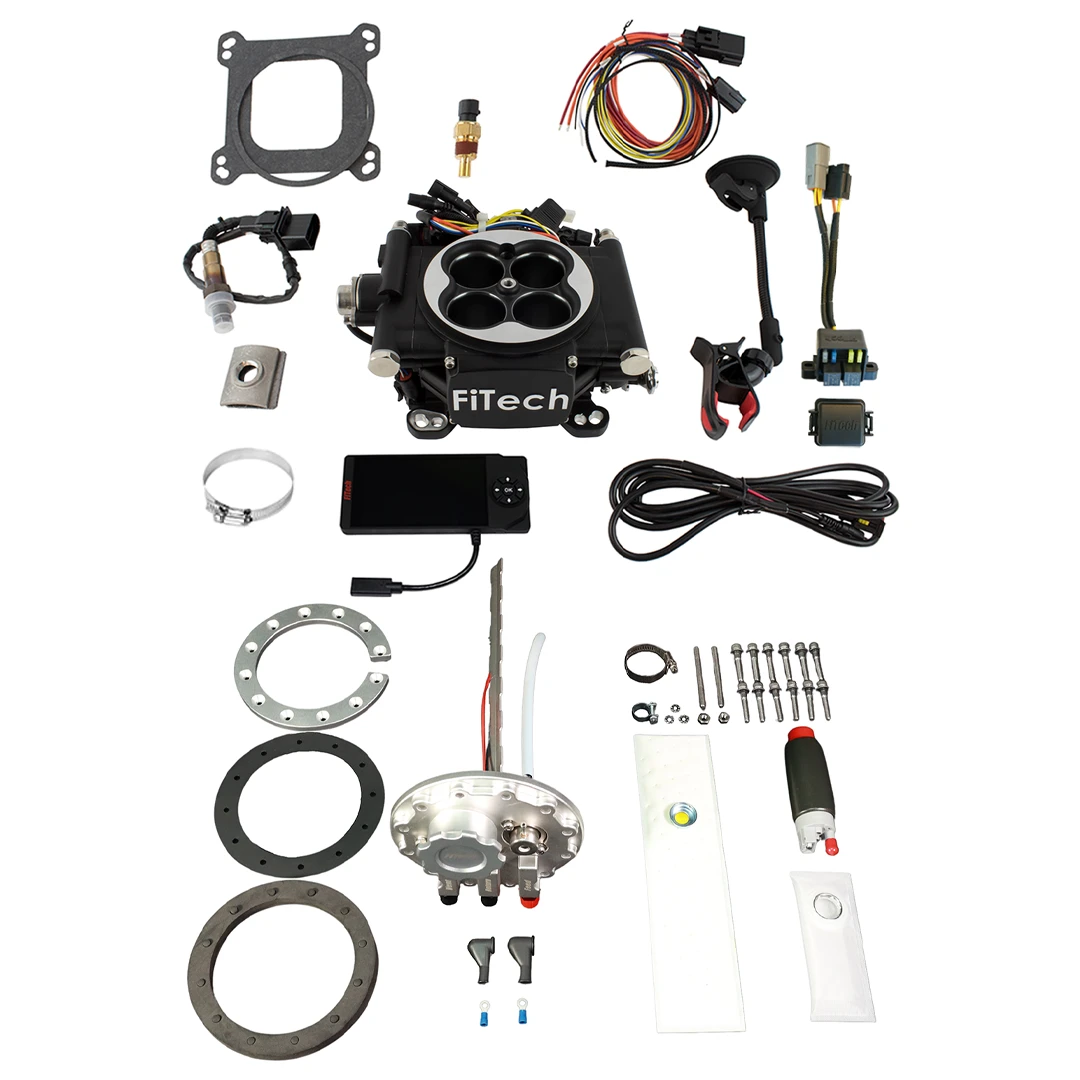

FiTech EFI 4 600 HP Matte Black w/ In-Tank Module (36302)
The FiTech EFI 4 600 HP Matte Black w/ In-Tank Module (36302) offers a comprehensive solution for converting carbureted engines to electronic fuel injection. This throttle body injection system is designed for engines producing up to 600 horsepower, providing improved performance and fuel efficiency. The kit includes an in-tank fuel module and a self-learning ECU, simplifying the installation and tuning process.
KEY FEATURES AND BENEFITS:
600 HP Capability: Designed for engines up to 600 horsepower, utilizing throttle body injection for straightforward installation.
Complete Solution: Includes an in-tank fuel pump and a comprehensive sensor package for fuel injection conversion.
Timing Control Compatible: Allows for further performance optimization.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
Power Adder Compatible: No
ECU Included: Yes
Fuel Pump Included: Yes (In-tank)
Metering Style: Speed density (Map-N)
Throttle Body Mounting Flange: 4-barrel square bore
Airflow Rate: 850 CFM
Injector Size: 80 lbs./hr
Fuel Type: Alcohol, Gasoline, Methanol, Flex
Preparation: Remove the existing carburetor and related components.
Fuel System Installation: Install the in-tank fuel pump module.
Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold.
Sensor Installation: Install the included oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
Wiring Harness Connection: Connect the wiring harness to the sensors, ECU, and fuel pump.
ECU Setup: Connect the calibration module and configure the ECU settings.
Fine-Tuning (Optional): Make minor adjustments to the ECU settings as needed.
BENEFITS OF USING THE FITECH EFI 4 600 HP MATTE BLACK W/ IN-TANK MODULE (36302):
Improved Performance: Provides enhanced engine performance and increased fuel efficiency.
Easier Start-Up: Simplifies start-up procedures with the self-learning ECU.
Simplified Tuning: Reduces the need for specialized knowledge with easy tuning capabilities.
Comprehensive Kit: Includes all necessary components for a manageable conversion from carburetor to EFI.
Universal Fit: Allows for wide engine compatibility.
Throttle Body Design: Four 43mm venturi throttle body design.
Construction: Cast aluminum throttle body with a black finish.
Oxygen Sensor: Wide-band oxygen sensor for accurate fuel mixture monitoring.
Injector Size: 80 lbs./hr fuel injectors for high-performance applications.
Fuel Metering: Speed density (MAP-N) fuel metering.
Fuel Compatibility: Capability to run multiple types of fuel.
Wiring Harness: Complete wiring harness and sensor package included.
Calibration Module: For easy ECU setup.
Product identification
- Brand: FiTech
- Model / MPN: 36302
