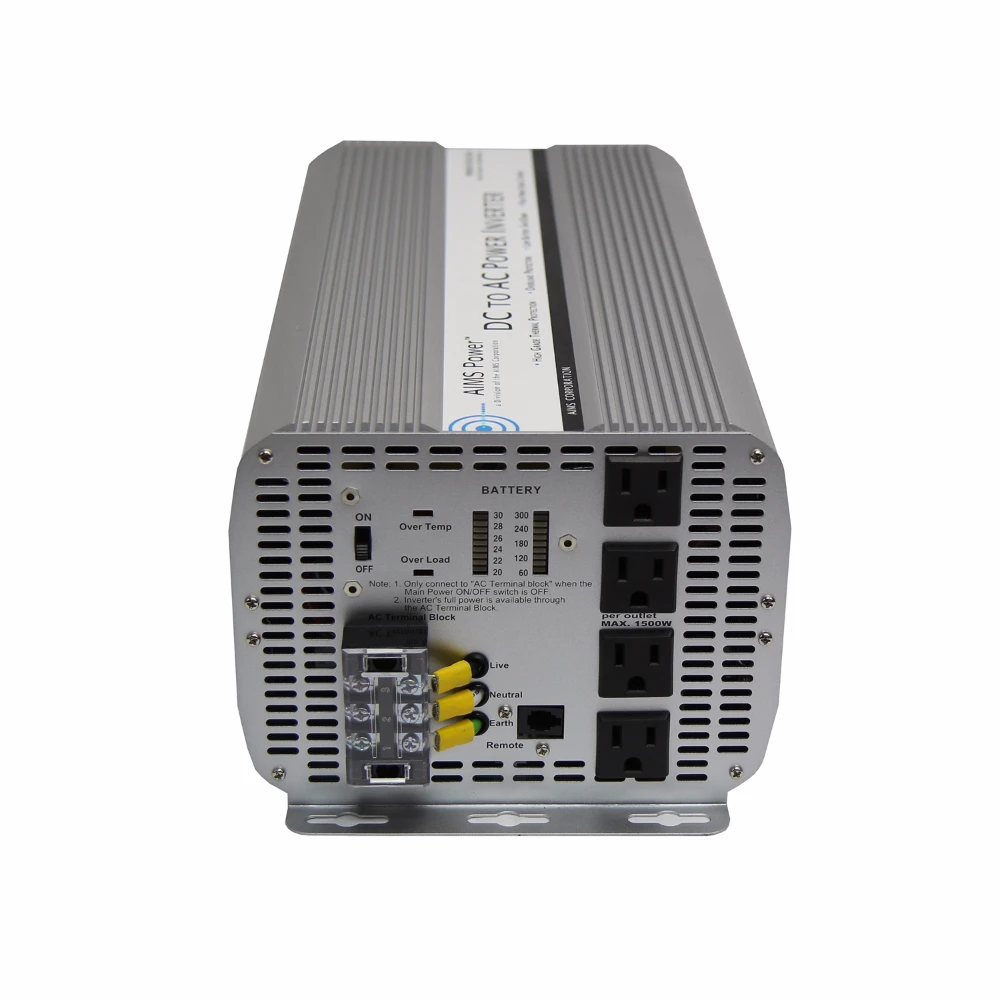

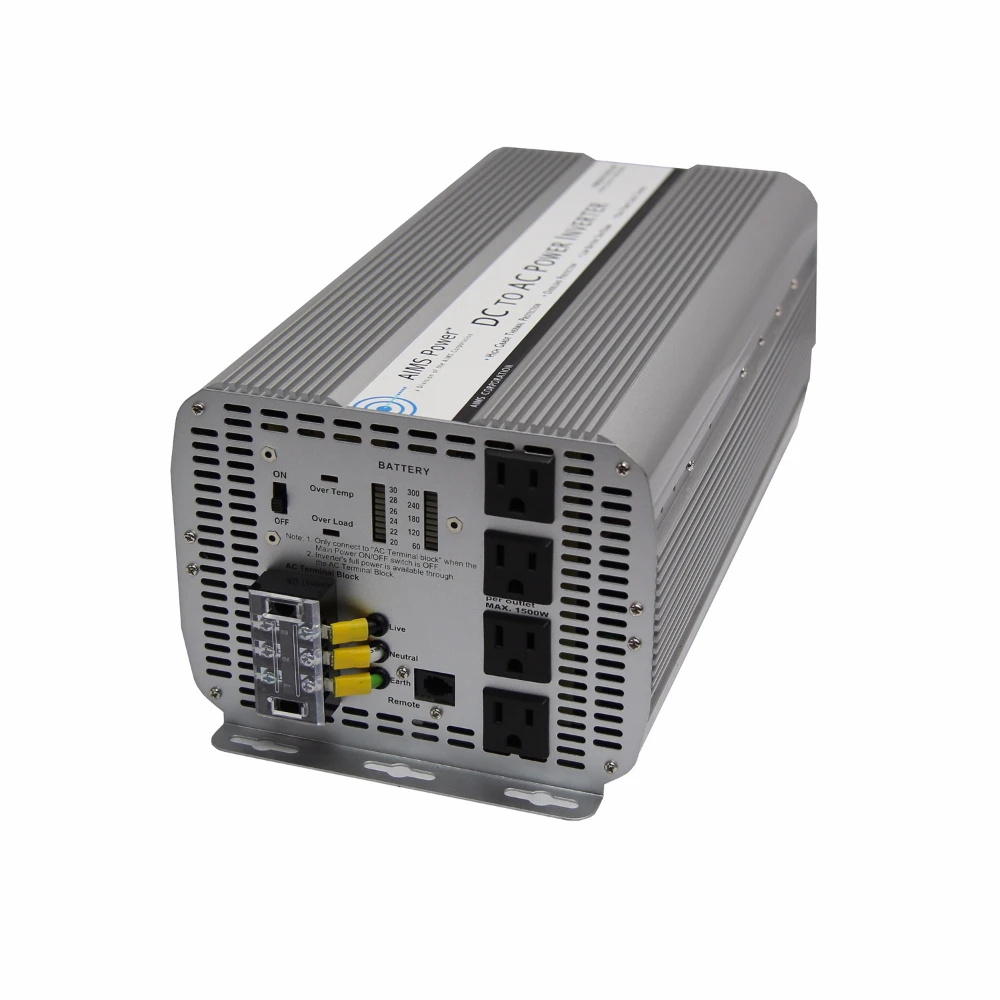

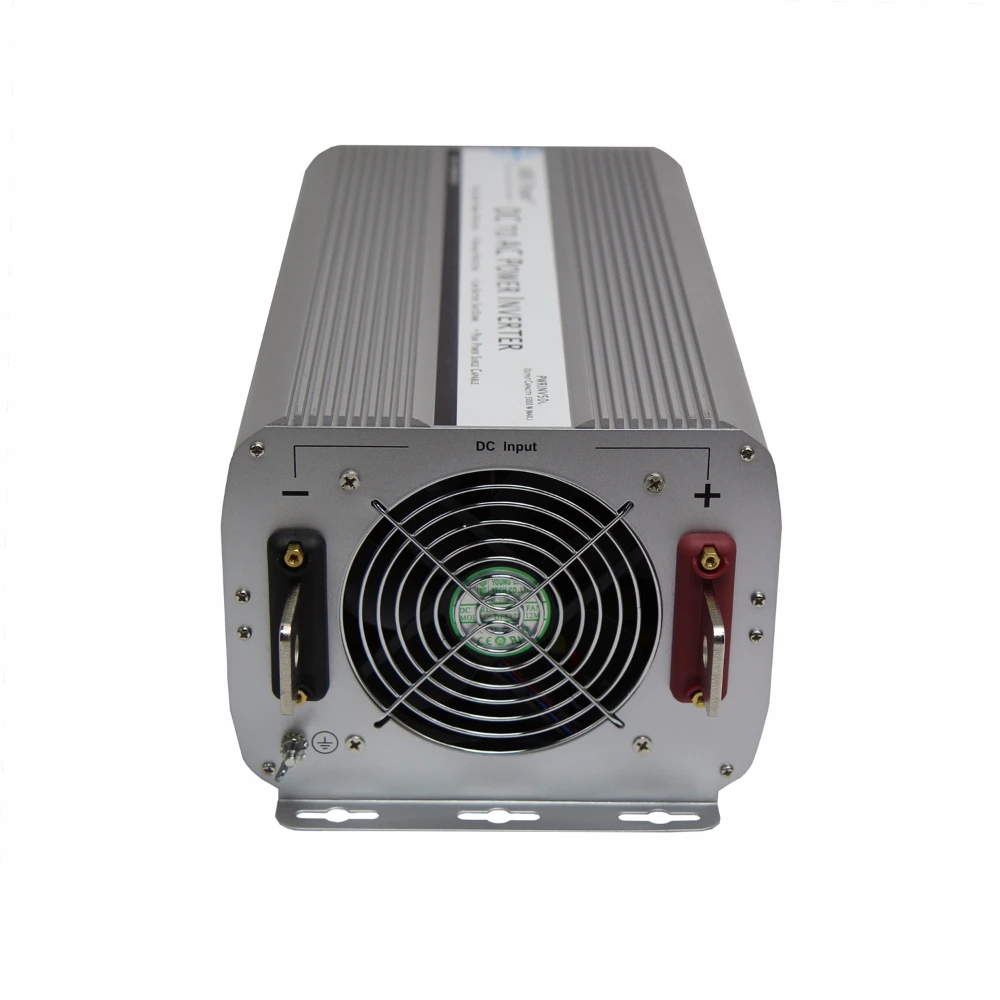

AIMS Power 5000 Watt 48 Volt Power Inverter (PWRINV500048W)
The AIMS Power PWRINV500048W 5000 Watt 48 Volt Power Inverter is designed to efficiently convert 48 volts of DC power from a battery bank into 120 volts of AC power, making it an excellent choice for a variety of applications. This inverter is particularly effective for powering devices in off-grid setups, RVs, or during power outages. The modified sine wave output is optimized for compatibility with many devices, while features like a volt meter and amp meter on the front panel allow for real-time monitoring of your battery and current usage. Designed for longevity and efficiency, this inverter includes built-in protections against overload and overheating.
Continuous output power: 5000 Watts
Surge power capability: 10,000 Watts
DC input operating voltage: 39 to 64 Volts
Output voltage: 120 Volts AC ± 10%
Output waveform: Modified sine wave with phase correction
Output frequency: 60 Hz ± 1 Hz
Battery low voltage alarm: 40 ± 0.5 Volts
Battery low voltage shutdown: 38 ± 0.5 Volts
No load current: < 0.2 Amps
Full load efficiency: 90%
1/3 load efficiency: 95%
Minimum operating temperature: -15 degrees Celsius
Maximum operating temperature: 55 ± 5 degrees Celsius (automatic shutdown)
AC output socket type: Quadruple Type 2 – 3 prong
High input voltage protection: 64 Volts
Low input voltage shutdown: 38 Volts
Internal fuse protection
Dimensions (L x W x H): 16.92" x 7.95" x 6.10"
Weight: 16.5 lbs (unit), 20 lbs (boxed)
UL maximum recommended per outlet: 1500W
Free 1-year tech support
Instruction manual included
Pre-wired for remote on/off switch and pre-slotted mounting plate
Product identification
- Brand: Aims Power
- Model / MPN: PWRINV500048W
