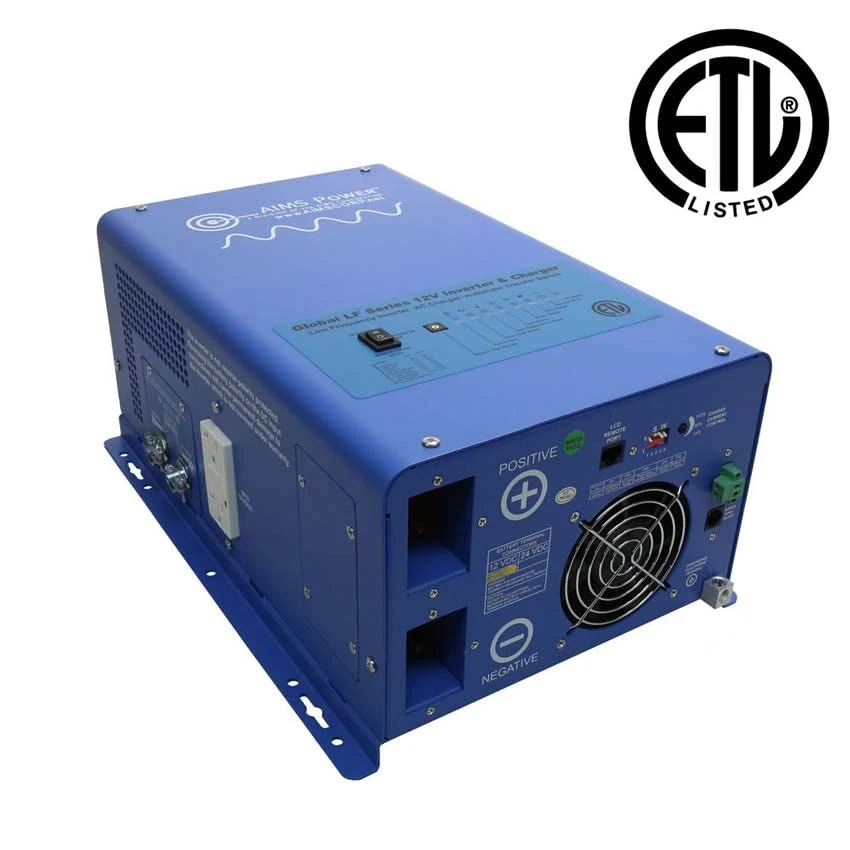

AIMS Power 3000W 120V Pure Sine Inverter Charger (PICOGLF3K12050BY)
AIMS Power 3000W 120V Pure Sine Inverter Charger is a reliable, high-performance power solution designed to efficiently convert DC to AC power. The inverter features a multi-stage smart charger with a 100A charge rate, and it’s ideal for use with various battery types, including lithium. Equipped with a battery priority selector, GFCI protection, and a marine-coated enclosure, it ensures safety and durability. The inverter also includes automatic transfer switch functionality, selectable power save mode, and a fast recovery system to protect against low or high voltage, overloads, and short circuits. Whether for off-grid systems, RVs, or emergency backup, this inverter charger an efficient, dependable choice for power conversion.
Key Features & Specifications:
Continuous Output Power: 3000 Watts / 3KW
Surge Power: 9000 Watts / 9KW (for 20 seconds)
Starting Electric Motor: 3 HP
Output Waveform: Pure Sine Wave
Nominal Efficiency: >92% (Peak)
Line Mode Efficiency: >95%
Power Factor: 0.9 – 1
Nominal Output Voltage: 120V AC
Output Voltage Regulation: ± 10% RMS
Output Frequency: 50/60 Hz ± 0.3Hz
Short Circuit Protection: Yes, Current Limit Function
Typical Transfer Time: 10ms (Max)
Max THD at Full Load: < 20%
DC Input Voltage: Nominal 12 Vdc
Low Battery Alarm: 10.5V-11.0V DC
Low Battery Trip: 10.0V-10.5V DC
High Voltage Alarm & Fault: 16Vdc
Sleep Mode Threshold: >50 Watts (Power Saver On)
Charger Max Charge Rate: 100A
Charger Breaker Rating (120V): 30A
Battery Type Settings: 7 settings including Lithium
Bypass & Protection: 50A Breaker (120V & 240V)
GFCI Rating: 20A
Nominal Input Frequency: 50Hz or 60Hz (auto detect)
Mechanical Mounting: Pre-drilled holes for wall/ground
Dimensions: 16.25" L x 11" W x 7" H
Product identification
- Brand: Aims Power
- Model / MPN: PICOGLF3K12050BY
