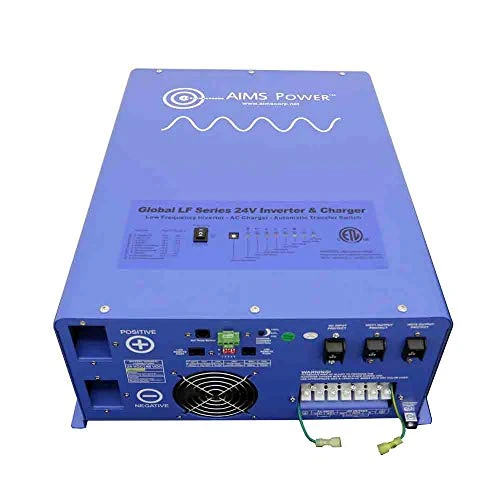

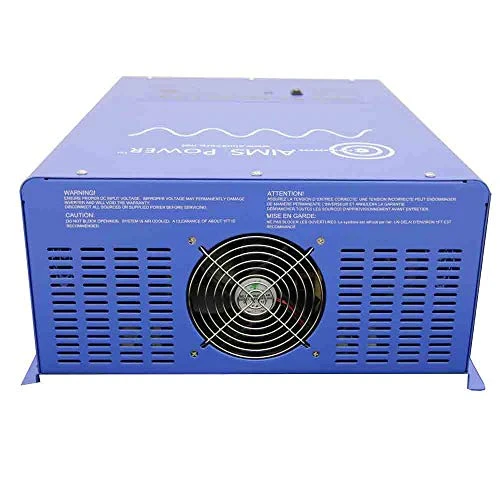

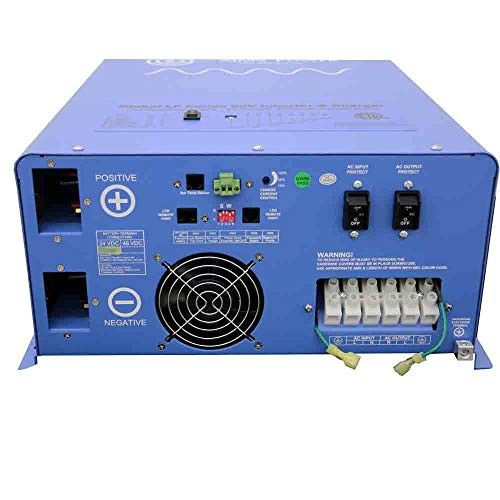

AIMS Power 4000W Pure Sine Inverter Charger (PICOGLF4024120UL)
Key Features & Specifications:
Continuous Output Power: 4000 Watts
Surge Power: 12000 Watts (20 seconds)
Output Voltage: 100-110-120V AC (single-phase)
Output Waveform: Pure Sine Wave / Same as Input (Bypass Mode)
Nominal Input Voltage: 24V DC
Surge Capability: 300% for 20 seconds
Battery Charger Rate: 45A (supports lithium LiFePO4, AGM, gel, and lead batteries)
Battery Priority Selector: Yes
Transfer Time: 10ms (max)
Automatic Transfer Switch: Included (50A)
Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
Efficiency: >88% (Peak), Line Mode Efficiency >95%
Idle Consumption: 52.5W, <25W with Power Save Mode
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Input Voltage Range: 20V-32V DC
Safety Features: Short-circuit protection, over-temperature protection, over-load protection
Dimensions (L x W x H): 19" x 16.5" x 8"
Product identification
- Brand: Aims Power
- Model / MPN: PICOGLF4024120UL
