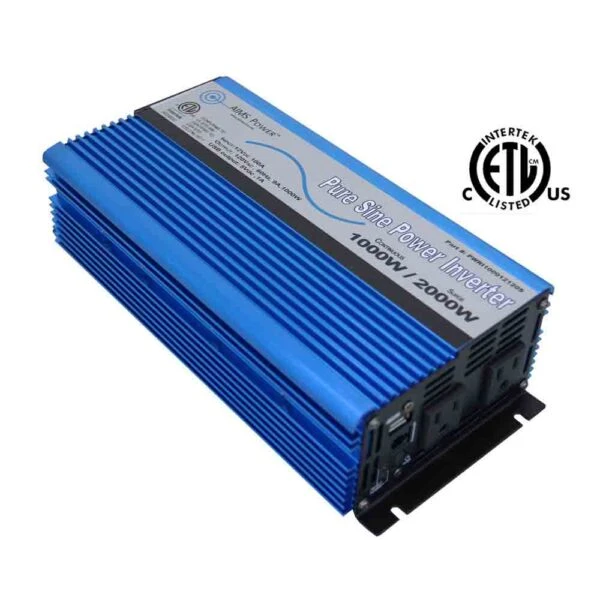

Aims Power 1000 Watt Pure Sine Power Inverter Kit (KITPWRI100012S)
A convenient kit, bundled with all the products you need for installation. Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS pure sine wave power inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment* and a broad range of appliances. And when it comes to selecting an inverter, it’s helpful to know that AIMS pure sine wave inverters represent the most technologically advanced, lightweight, compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade, the AIMS’ Power has consistently delivered the broadest range of sizes to accommodate virtually every power requirement. Advantages of a pure sine inverter: -Equipment runs more efficiently -Motors run cooler -Cleaner power -Ideal for power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, medical equipment

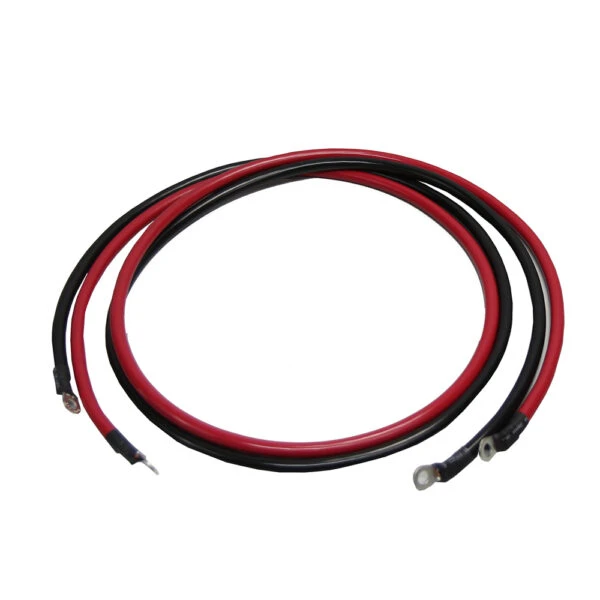

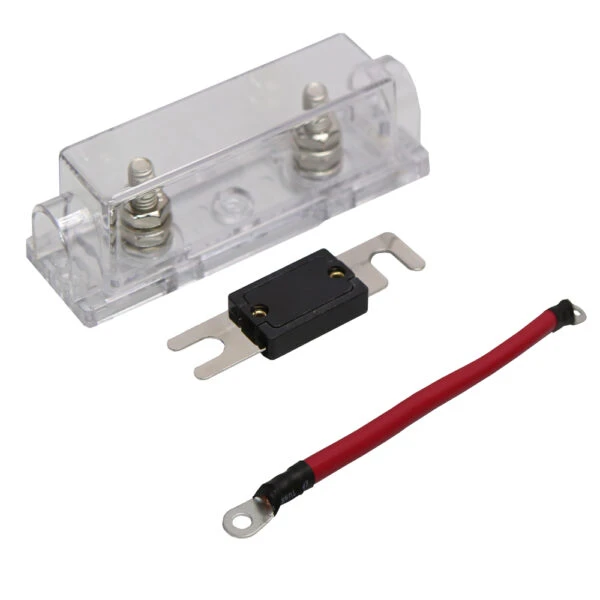

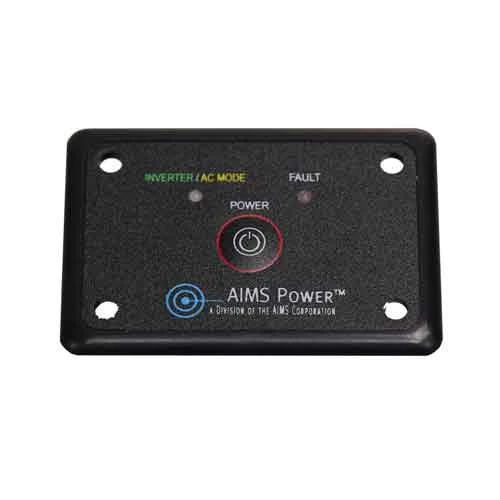

Kit includes 1000 watt pure sine inverter, on/off remote, fuse kit with jumper 100 amp and 11 ft 8 AWG cables.
1000W continuous power
Dual AC receptacles
Over temperature indicator
Overload protection
Low battery voltage warning/shutdown
High input voltage protection with automatic shutdown
Over load indicator
Short circuit protection
Thermally controlled cooling fan
AC output short circuit protection
Instruction manual
Free 2 year tech support
Continuous output power: 1000 Watts
Surge power capability (peak power): 2000 Watts
ETL Listed to UL 458, CSA 22.2 No 107.1
DC input / operating voltage: 10 to 15 Volts
Output voltage: 120 Volts AC +/- 10%
Output wave form: pure sine wave
Output frequency: 60 Hz
Battery low voltage alarm: 10.6 +/- 0.5 Volts
Battery low voltage shutdown: 10.0 +/- 0.5 Volts
No load power consumption: < .4 dc amps
DC amps – 83 · AC amps – 8
Full load efficiency: 90%
1/3 load efficiency: 95%
No load minimum operating temperature: 32 degrees F
Full load maximum operating temperature: 104 degrees F
AC Output Socket Type: dual Type 2 -3 prong
USB Output: 5Vdc, max 1A
High input voltage protection: 15V
Low input voltage shutdown: 10V
Internal blade fuse protection
Unit Weight: 5.3 lbs.
Unit Size L x W x H: 11.53 x 5.51 x 2.91 inches
Product identification
- Brand: Aims Power
- Model / MPN: KITPWRI100012S
