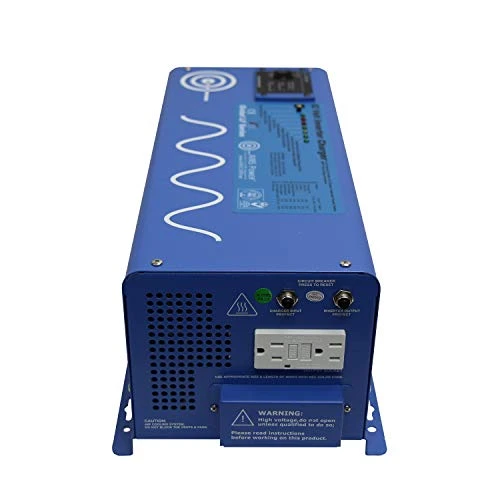

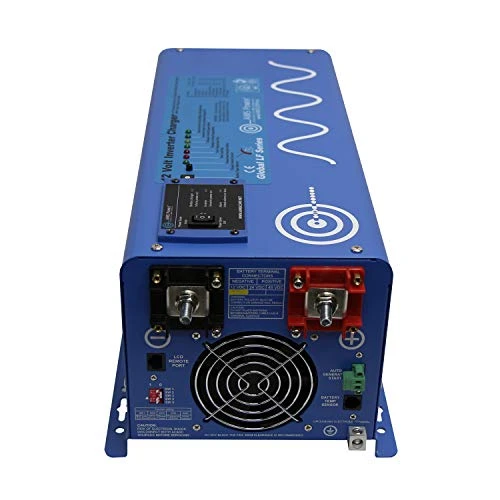

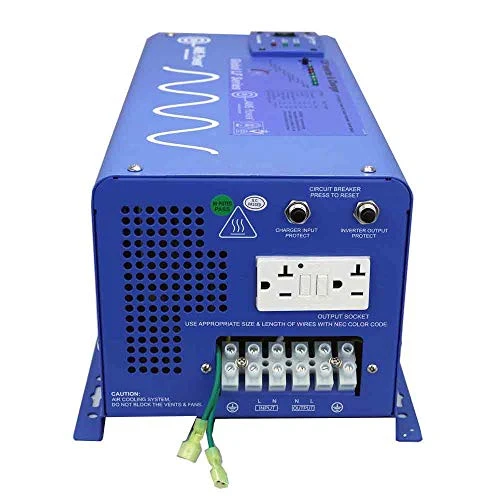

AIMS Power 3000W Inverter Charger 12V to 120V (PICOGLF30W12V120V)
AIMS Power 3000W Inverter Charger is a reliable, high-performance inverter designed for efficient power conversion. This low-frequency inverter is UL 458 listed and features a multi-stage smart charger capable of charging GEL, AGM, Lead, and lithium LiFePO4 batteries. The inverter includes a battery priority selector, GFCI 20-amp connections, and marine-coated protection for durability. With auto-gen start, auto frequency, and selectable power-save modes, it ensures optimal energy management. An automatic transfer switch ensures seamless operation, while the pure sine wave output and efficient design make it perfect for powering sensitive equipment.
Key Features & Specifications:
Continuous Output Power: 3000 Watts
Surge Power (20 Seconds): 9000 Watts
Nominal Input Voltage: 12.0V DC
Output Voltage: 100-110-120V AC
Efficiency: >92% (Peak), Line Mode Efficiency >95%
Output Waveform: Pure Sine / Same as input (Bypass Mode)
Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
Bypass Terminal Breaker: 40 Amps
Typical Transfer Time: 10ms (Max)
THD (Total Harmonic Distortion): < 10% DC
Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Battery Type Settings for Charger: 7 settings
Low Battery Alarm: 10.5V-11.0V DC
Low Battery Trip: 10.0V-10.5V DC
High Battery Voltage Alarm: 16.0V DC
Charger Rate: 100A
Power Saver Mode Consumption: 21.7 Watts (Idle)
Unit Weight: 58 lbs.
Dimensions (L x W x H): 15.35” x 11” x 7”
Product identification
- Brand: Aims Power
- Model / MPN: PICOGLF30W12V120V
