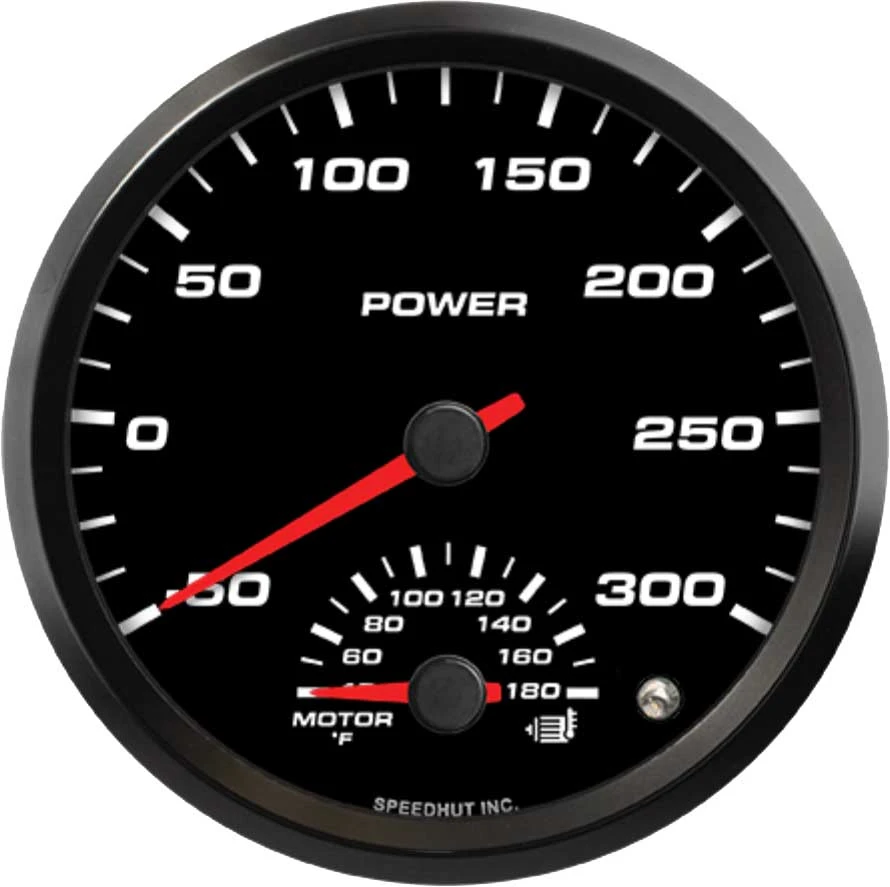

Speedhut 4" EV -50-300 Power / 40-180F Motor Temp Gauge (FAE4-DG6-EV)
KEY FEATURES AND BENEFITS:
Dual Monitoring: Simultaneously displays power levels ranging from -50 to 300 kW, indicating both power consumption/regeneration and output, alongside motor temperature ranging from 40 to 180 degrees Fahrenheit.
Enhanced Safety: Features an integrated warning light that activates when pre-set thresholds for power or temperature are exceeded, providing immediate visual alerts.
Simplified Integration: Utilizes the EV's Controller Area Network (CAN-Bus) at a 500K baud rate for direct and reliable data acquisition from the vehicle's ECU, streamlining the installation process.
Clear and Concise Display: The 4-inch gauge provides a clear and easily understandable presentation of critical EV data.
Complete Wiring Solution: Ships with all necessary harnesses, including the EV CAN Harness, EV CAN Jumper Harness, and a 3 ft Power & Lighting Harness, ensuring a straightforward installation.
Gauge Type: Dual Gauge
Signal Type: CAN-Bus (500K baud rate)
Power Range: -50 to 300 kW
Temperature Range: 40 to 180 degrees Fahrenheit
Size: 4 inches (diameter)
Mounting Hole Size: 3.93 inches (100mm)
Units: Standard (Fahrenheit)
Included: EV CAN Harness, EV CAN Jumper Harness, 3 ft Power & Lighting Harness
Connect the EV CAN Harness: Plug the EV CAN Harness into the designated CAN-Bus port on your electric vehicle's control system.
Connect the Gauge: Connect the other end of the EV CAN Harness to the corresponding connector on the back of the Speedhut Dual EV Gauge.
Utilize the Jumper Harness (if needed): If you are connecting multiple CAN-Bus devices, use the EV CAN Jumper Harness to create a daisy-chain connection.
Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to the power and ground sources in your vehicle, as well as to the gauge's power and lighting connectors. This harness will also power the LED illumination of the gauge.
Mount the Gauge: Insert the 4-inch gauge into a 3.93-inch (100mm) diameter opening in your dashboard or instrument panel. Secure it using the appropriate mounting hardware (typically a spin-lock ring).
Verify Operation: Once all connections are made, power on your vehicle. The gauge should illuminate and display the real-time power and motor temperature readings. The warning light will illuminate if any critical thresholds are exceeded.
BENEFITS OF USING THE SPEEDHUT 4" EV -50-300 POWER / 40-180F MOTOR TEMP GAUGE (FAE4-DG6-EV):
Provides immediate and accurate feedback on your EV's power consumption and output, aiding in efficient driving habits and range management.
Enables proactive monitoring of the electric motor's temperature, helping to prevent overheating and potential damage, thus prolonging the motor's lifespan.
The integrated warning light offers an extra layer of safety by alerting you to critical power or temperature conditions, allowing you to take timely action.
Seamless integration with the EV's CAN-Bus system ensures reliable and precise data without the need for complex sensor installations.
The clear and dual display allows you to monitor two essential parameters simultaneously, keeping you informed without cluttering your dashboard.
Simultaneous display of power and motor temperature in a single 4-inch unit.
Visual warning indication for critical power and temperature levels.
Direct data acquisition via CAN-Bus communication at 500K baud rate.
Standard temperature units in Fahrenheit for easy understanding.
Designed to fit standard 4-inch gauge openings (3.93-inch mounting hole).
Includes dedicated wiring harnesses for CAN-Bus connection and gauge power/illumination.
