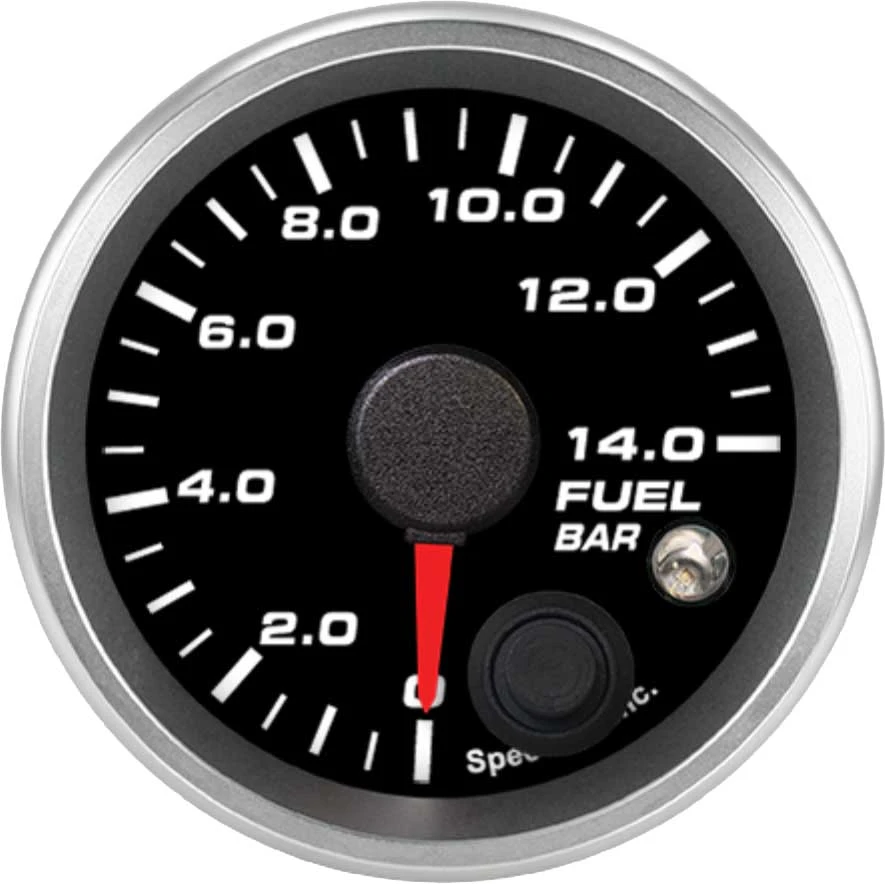

Speedhut R2-FP8-REV Fuel Gauge, 0–14 Bar with Warning
Speedhut R2-FP8-REV is the wider-range metric Revolution fuel gauge with a 0–14bar face. The 300PSI sender specification identifies a component in the package, not a 300PSI display or approval to run a fuel system at that pressure.
Specifications and included details
- Metric fuel-pressure range: 0–14.0bar.
- 300PSI three-wire pressure sensor listed.
- 2-1/16-inch gauge; listed opening: 2.062 inches.
- Pressure harness, 3-foot power/lighting harness and warning light described.
Before ordering
Match the readable pressure range and actual fuel-system requirements. Confirm sender chemistry/port compatibility and warning-setting instructions. Neither the sender rating nor the warning light establishes automatic shutoff, improved engine performance or universal vehicle fit.
Product questions and answers
Can it display300PSI?
The face is 0–14bar.300PSI identifies the listed sensor, not the gauge's display endpoint.
Is this the lower7bar version?
No. R2-FP8-REV displays0–14bar and names a 300PSI sensor; R2-FP7-REV is the separate0–7bar listing.
Are electrical harnesses listed?
Yes. A pressure-signal harness and 3-foot power/lighting harness are named; confirm any needed fuel adapters separately.
