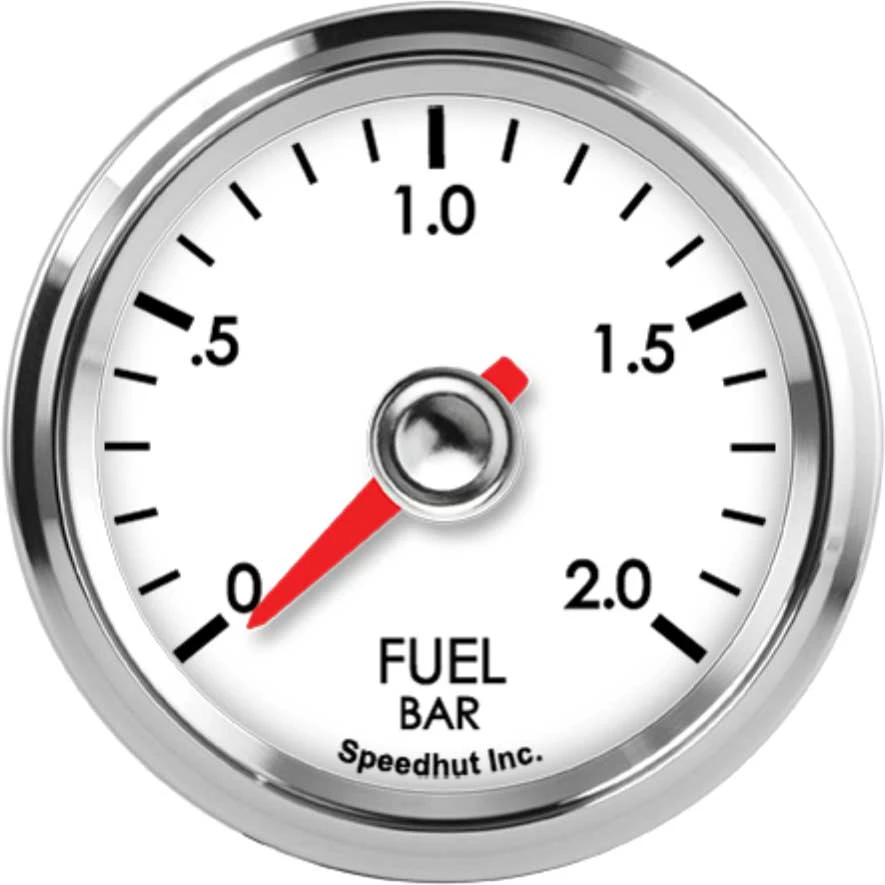

Speedhut L2-FP6-LEG 2-1/16in Fuel Gauge, 0–2 Bar
Speedhut L2-FP6-LEG pairs a compact 2-1/16-inch gauge with a low-range metric fuel-pressure dial. Choose it for the required 0–2 bar display rather than assuming any fuel gauge suits a higher-pressure system.
Specifications and included details
- Fuel-pressure display: 0–2.0 bar.
- Nominal gauge size: 2-1/16 inches; listed opening: 2.062 inches.
- 30PSI three-wire pressure sensor listed.
- Pressure-signal harness and 3-foot power/lighting harness listed.
Before ordering
Compare normal and maximum system pressure with the gauge/sender specifications. Confirm sensor port, fuel compatibility, rear clearance and wiring instructions before ordering; a pod's nominal size alone does not establish fit.
Product questions and answers
Does the dial read PSI?
This version is marked in bar, from 0 to 2.0. The 30PSI figure identifies the listed sensor.
Is a sender included?
The package list includes a 30PSI three-wire pressure sensor and its signal harness.
What distinguishes it from L25-FP6-LEG?
Both list a 0–2 bar display, but this L2 version is nominally 2-1/16 inches with a listed 2.062-inch opening.
