Speedhut L2-OP5-LEG 0–14 Bar Metric Oil Pressure Gauge
Speedhut L2-OP5-LEG is the metric Legacy oil pressure gauge displaying 0–14 bar. Its included sensor is listed at 300 PSI; that sensor specification does not extend the gauge's printed display range or change the bar units on the face.
Specifications and included details
- Metric 0–14 bar display scale.
- 2-1/16-inch gauge; listed mounting opening 2.062 inches (52mm).
- 300 PSI three-wire pressure sensor listed.
- Sensor cable, 3-foot power/lighting harness and mounting ring included.
Before ordering
Confirm the supplied sensor matches this gauge's signal requirements and verify port and mounting fit. Choose bar if that is the unit used in your service references. Do not read the sensor's PSI rating as a second display scale.
Product questions and answers
Does the face display PSI?

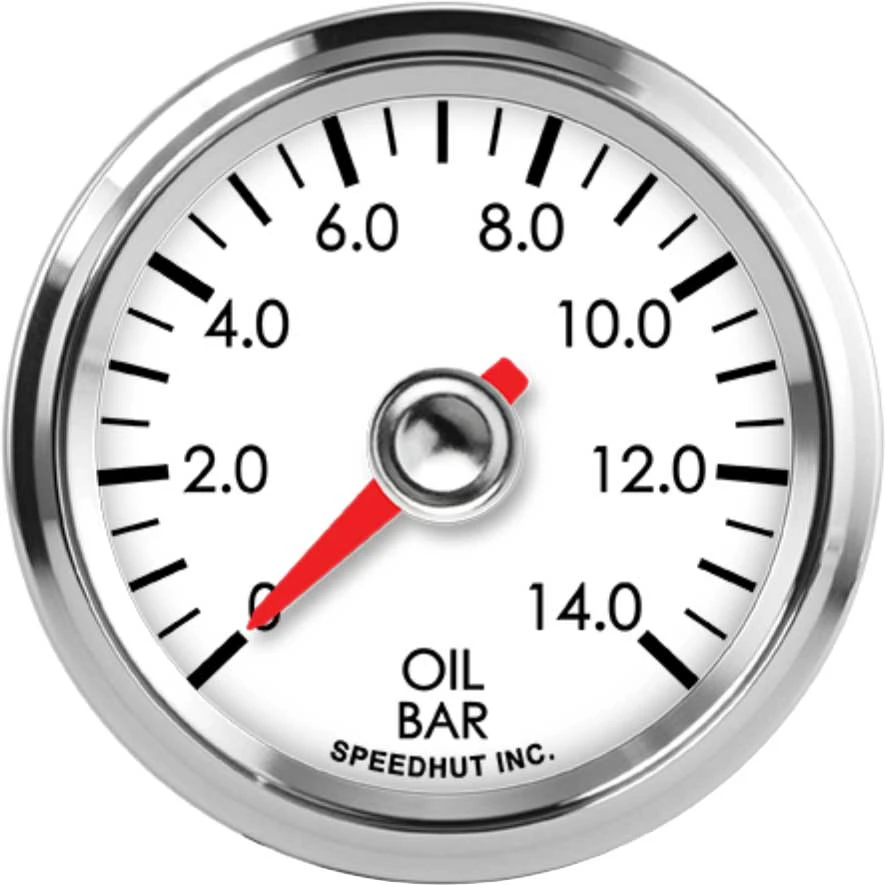

The pictured and described scale is bar, from 0 to14.
Does a 300 PSI sensor mean a 300 PSI display?
No. The listed sensor range and the gauge's 0–14 bar display range are separate specifications.
Are wiring and a mounting ring included?
Yes. The details list the sensor cable, power/lighting harness and gauge mounting ring.
