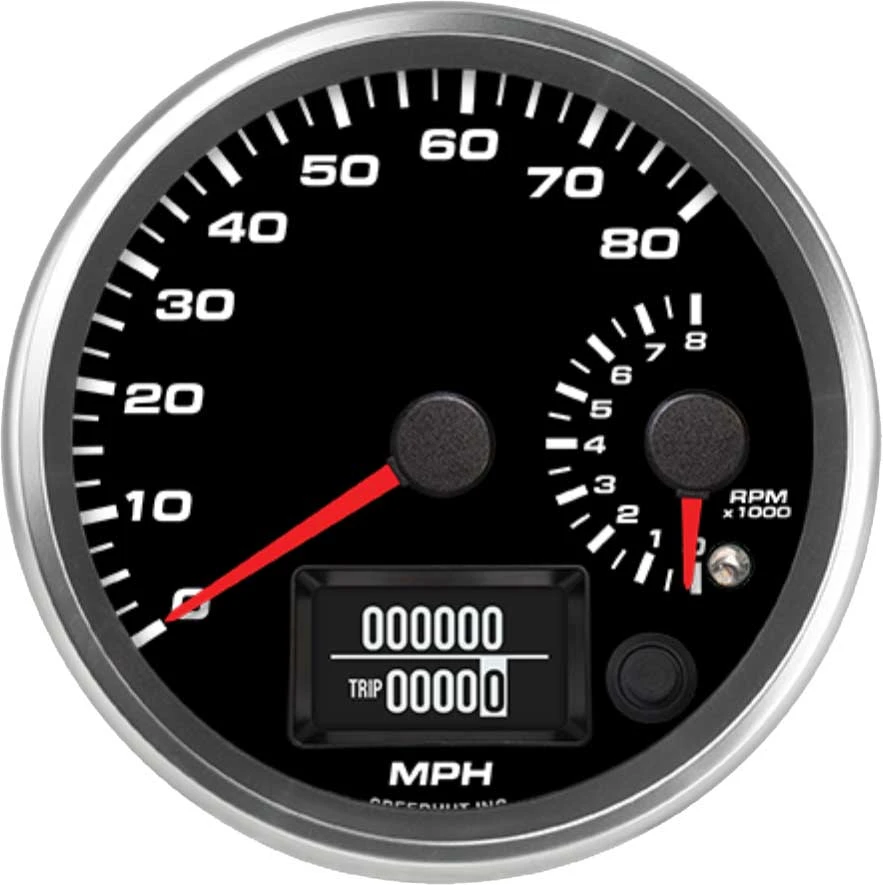

Speedhut 4" 80 mph GPS Speedometer / 8K Tachometer Gauge (R4-DS9-REV)
Experience enhanced driving with the Speedhut 4" 80 mph GPS Speedometer / 8K Tachometer Gauge (R4-DS9-REV). This innovative dual gauge integrates precise GPS technology for real-time speed measurement, removing the complexities of traditional speed sensors and the need for calibration due to tire size or gear ratios. Installation is straightforward, requiring only a 12V power connection and the included waterproof GPS antenna. The speedometer operates globally using free GPS data reception. Complementing the speedometer is a highly accurate tachometer, compatible with virtually any engine and tach signal exceeding one volt. Its advanced design ensures pointer accuracy even under demanding racing conditions, functioning across a wide range of engine pulse outputs (1/2 to 6 pulses per revolution). This robust gauge offers a comprehensive solution for monitoring crucial vehicle data with ease and reliability.
KEY FEATURES AND BENEFITS:
Dual Functionality: Integrates both a GPS-based speedometer (0-80 MPH) and an 8K tachometer in one compact unit.
Accurate GPS Speed: Delivers real-time speed readings without reliance on wheel sensors or calibration, using free global GPS signals.
Universal Tachometer Compatibility: Works with virtually any engine using a tach signal over one volt and supports 1/2 to 6 pulses per revolution.
Effortless Installation: Requires only a 12V power source and includes a waterproof GPS antenna with a 9.8 ft cable.
High Precision: Features an internal microprocessor and high-torque stepper motor for accurate speed and RPM readings.
Durable Design: Slim profile with billet aluminum bezel and weather-resistant construction ensures longevity and performance.
Gauge Type: Dual GPS Speedometer / Tachometer
Speedometer Range: 0-80 MPH
Tachometer Range: 0-8,000 RPM
Gauge Size: 4 inches
Mounting Hole Size: 3.95 inches (100mm)
Standard or Metric: Standard
Power Requirement: 12V
GPS Antenna with 9.8 ft cable and male SMA connector
8 ft Tachometer Harness (1 Wire 2 Pin Connector)
3 ft Power & Lighting Harness
Mount the Gauge: Secure the 4-inch gauge in a 3.95-inch (100mm) diameter hole using the provided spin-lock ring.
Connect Power: Attach the 3 ft Power & Lighting Harness to a 12V power source in your vehicle.
Install GPS Antenna: Mount the waterproof GPS antenna in a location with a clear view of the sky. Connect the antenna cable (with the male SMA connector) to the speedometer unit.
Connect Tachometer Harness: Attach the 8 ft Tachometer Harness (1 Wire 2 Pin Connector) to the appropriate tachometer signal output from your engine's ignition system (compatible with distributor and distributor-less ignitions).
Power On: Once all connections are secure, power on your vehicle. The GPS speedometer will acquire a satellite signal and begin displaying your speed within seconds. The tachometer will display the engine's RPM.
BENEFITS OF USING THE SPEEDHUT 4" 80 MPH GPS SPEEDOMETER / 8K TACHOMETER GAUGE (R4-DS9-REV):
Precise Speed Readings: Utilizes GPS technology for highly accurate speed without the need for sensor calibration.
Universal Tachometer Compatibility: Works with a wide range of engine types and ignition systems.
Simplified Installation: GPS speedometer eliminates the complexities of traditional speed sensor wiring.
Global Operation: The GPS speedometer functions anywhere in the world with free satellite data.
Reliable Performance: Features an internal microprocessor and a high-torque stepper motor for accurate and stable readings, even in demanding conditions.
Durable Construction: Built with a slim case, a solid billet aluminum bezel, and a weather-resistant design for long-lasting use.
Quality Craftsmanship: Proudly made in America.
Real-time speed tracking via satellite-based positioning.
Accurate engine speed measurement from 1/2 to 6 pulses per revolution.
Internal processing for highly precise data interpretation.
Stepper motor technology ensures smooth and accurate pointer movement.
Streamlined gauge housing for easy integration into various dashboards.
Robust aluminum outer ring for enhanced structural integrity and appearance.
Designed to withstand various environmental conditions.
Long-term assurance on the core electronics.
Manufactured with attention to detail in the USA.
Product identification
- Brand: Speedhut
- Model / MPN: R4-DS9-REV
