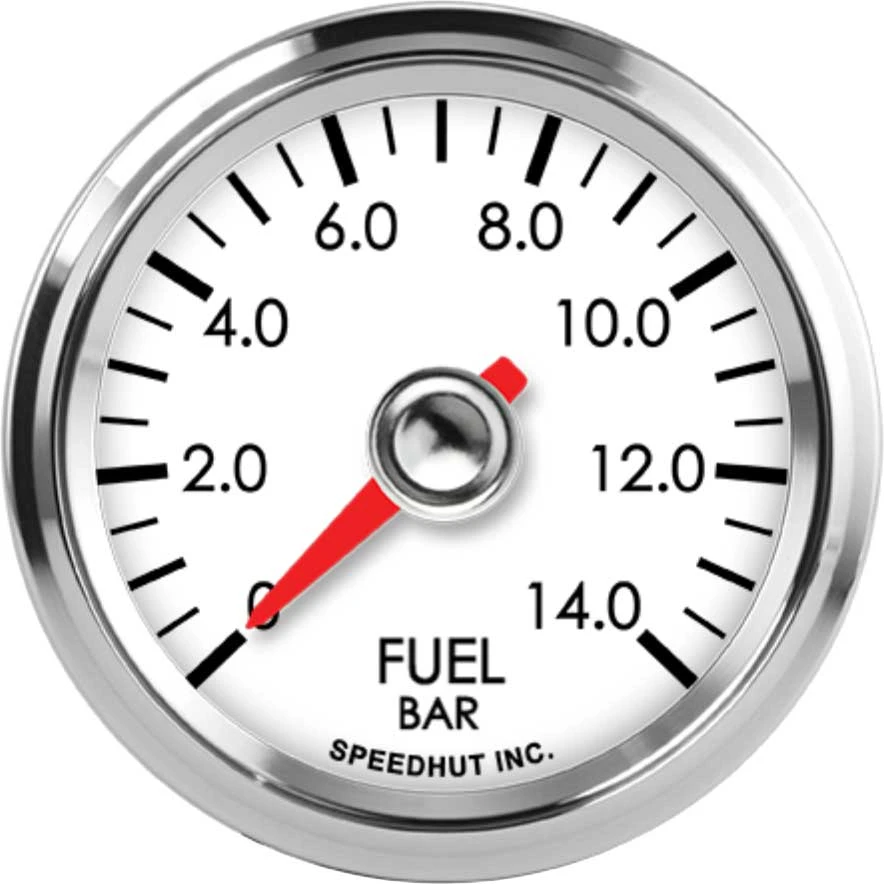

Speedhut L2-FP8-LEG 2-1/16in Fuel Gauge, 0–14 Bar
Speedhut L2-FP8-LEG brings a 0–14 bar scale to the compact Legacy gauge format. The supplied sensor is listed at 300PSI, but that figure does not change the visible dial into a 300PSI display.
Specifications and included details
- Metric fuel-pressure dial: 0–14.0 bar.
- Nominal diameter: 2-1/16 inches; listed opening: 2.062 inches.
- 300PSI pressure sensor with three-wire signal harness listed.
- 3-foot power/lighting harness and LED backlighting described.
Before ordering
Match the display range to the pressure you need to monitor and verify the matched sender's connection and fuel suitability. Confirm mounting depth and electrical requirements from the model instructions; a higher sender rating is not a system pressure approval.
Product questions and answers
Can it display 300PSI?
The dial is 0–14 bar. The separate 300PSI number is the listed sensor rating, not the dial endpoint.
Is this the 0–2 bar compact gauge?
No. L2-FP8-LEG is the 0–14 bar version; L2-FP6-LEG lists the lower 0–2 bar scale.
Are the sensor and lighting wires supplied?
The list includes a three-wire pressure harness and a 3-foot power/lighting harness along with the sensor.
