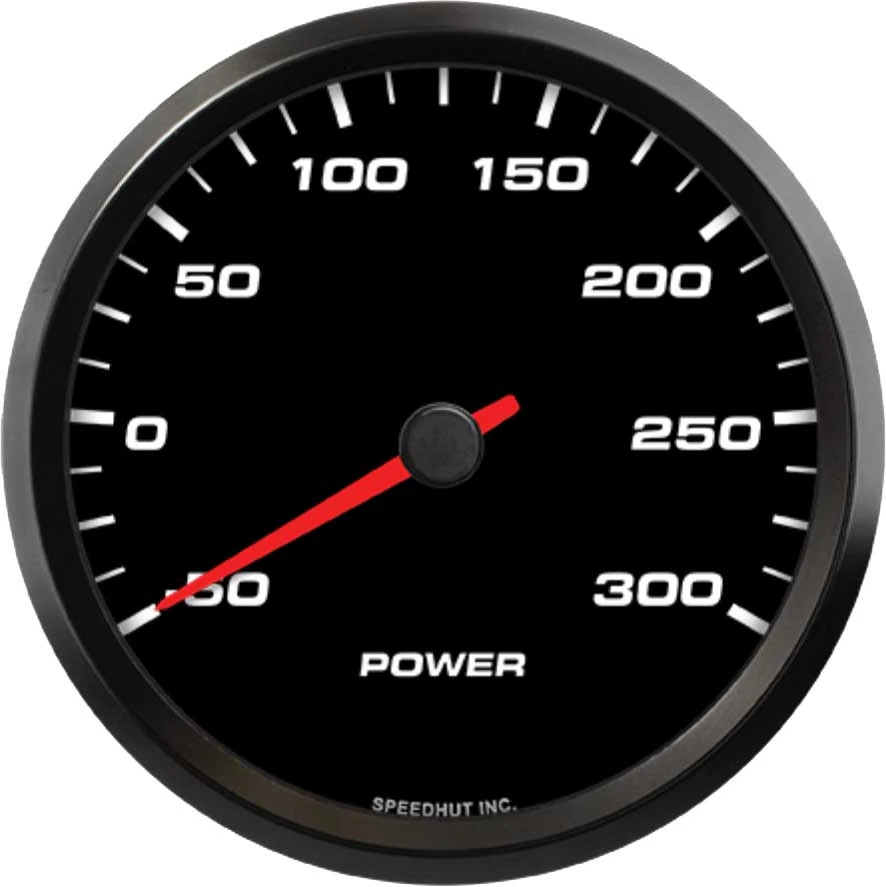

Speedhut 4-1/2" EV AEM -50 – 300 Power Gauge (FAE45-PW1-EV)
KEY FEATURES AND BENEFITS:
Real-time monitoring: Tracks power consumption and regenerative energy from -50 kW to 300 kW.
CAN-Bus communication: Integrates directly via a 500K baud rate connection for accurate digital data retrieval.
Easy OBDII connection: Interfaces through your vehicle’s 16-pin Data Link Connector without the need for additional sensors.
High-quality construction: Solid aluminum bezel with a 4 1/2 inch gauge face provides both durability and visibility.
Precise performance: Internal microprocessor and high-torque stepper motor ensure smooth, accurate pointer movement.
Gauge Type: Power
Signal Type: CAN-Bus
Range: -50 kW to 300 kW
Size: 4 1/2 inch
Hole Size: 4.230" (108mm)
Bezel Material: Solid Aluminum
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
EV CAN Jumper Harness
Verify CAN-Bus Compatibility: Confirm your EV's ECU supports power data output over CAN-Bus.
Locate the OBDII Port: Find the 16-pin Data Link Connector, usually under the dashboard.
Connect the CAN Harness: Plug the EV CAN Harness into the OBDII port.
Connect the Gauge: Attach the other end of the harness to the gauge. Use the EV CAN Jumper Harness if needed.
Wire Power and Lighting: Connect the 3 ft Power & Lighting Harness to a power source and ground. Attach lighting wires as preferred.
Mount the Gauge: Insert the gauge into the 4.230" (108mm) opening and secure with the spin lock ring.
Start Your Vehicle: Turn on your EV to initiate readings.
Observe Readings: The gauge will display real-time power usage and regeneration levels.
BENEFITS OF USING THE SPEEDHUT 4-1/2" EV AEM -50 – 300 POWER GAUGE (FAE45-PW1-EV):
Provides clear and accurate insights into your vehicle’s energy consumption and regenerative capabilities.
Helps optimize driving behavior for improved efficiency and extended range.
CAN-Bus integration removes the need for extra sensors, simplifying installation and improving reliability.
Large display and durable design ensure ease of use and long-lasting performance.
Direct CAN-Bus data retrieval for real-time power monitoring.
OBDII connector compatibility simplifies installation and integration.
Clear, high-visibility 4 1/2 inch gauge face.
Robust aluminum bezel for durability and a refined appearance.
Quick and secure mounting via spin lock ring.
Digital stepper motor and microprocessor for precise needle control.
Visual display of both power consumption and regeneration data.
Includes dedicated wiring harnesses for power, lighting, and CAN-Bus connection.
Product identification
- Brand: Speedhut
- Model / MPN: FAE45-PW1-EV
