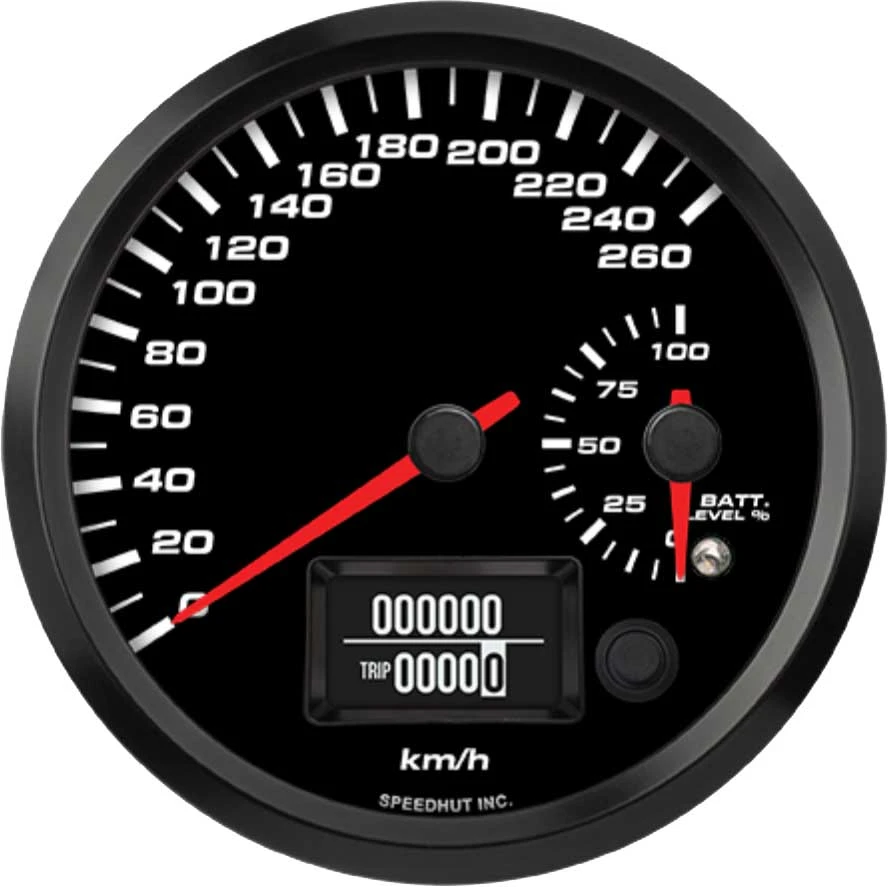

Speedhut 4-1/2" EV AEM 260km/h Speedometer/ Batt Level (FAE45-DS4-EV)
The Speedhut 4-1/2" EV AEM 260km/h Speedometer/ Batt Level (FAE45-DS4-EV) offers electric vehicle drivers a precise and intuitive way to monitor both speed and battery State of Charge (SOC). With a top speed display of 260 km/h and SOC indicated clearly from 0 to 100%, this dual-function gauge is built for high-performance EV applications. CAN-bus communication at 500K baud ensures direct, real-time data transmission from your EV’s system. It also features a built-in low battery warning light that activates when SOC falls below 15%, giving ample notice for recharging. The standard 4-1/2 inch size makes installation simple while providing a clean dashboard integration.
KEY FEATURES AND BENEFITS:
Dual Functionality: Displays both speed (up to 260 km/h) and battery State of Charge (0-100%).
Real-Time CAN-Bus Data: Uses a 500K baud rate CAN-bus connection for accurate, live feedback from the vehicle's ECU.
Low Battery Warning: Integrated warning light activates when battery drops below 15%.
Metric Display: Speed is shown in kilometers per hour (km/h), ideal for international use.
Standard Mounting Size: Fits into 4-1/2 inch openings for convenient dashboard installation.
Inclusive Wiring: Supplied with all required harnesses to streamline installation.
Gauge Type: Speedometer / Battery Level (State of Charge)
Signal Type: CAN-Bus (500K baud rate)
Speedometer Range: 0 – 260 km/h
Battery Level Range: 0 – 100%
Size: 4 1/2 inch
Mounting Hole Size: 4.230 inches (108mm)
Unit of Measure: Metric
Optional Indicators: 12 Volt Activated Turn Signals, 12 Volt Activated High Beam Indicator
Low Battery Warning: Integrated light activates below 15% battery level
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
EV CAN Jumper Harness
Mount the Gauge: Locate a 4.230" (108mm) opening on your dashboard and secure the gauge using the spin-lock ring or mounting hardware.
Connect the Power and Lighting Harness: Attach the 3 ft harness to the terminals on the gauge's back, connecting to the vehicle’s power and ground. Link the lighting wire as needed.
Connect the CAN-Bus Harnesses: Plug the EV CAN Jumper Harness and EV CAN Harness into the gauge’s CAN-Bus port.
Interface with the EV System: Connect the opposite end of the EV CAN Harness to your EV’s CAN-bus network, following your system's wiring diagram.
Verify Functionality: Power on your vehicle. Confirm speed and SOC readings are accurate and the low battery light activates below 15%.
BENEFITS OF USING THE SPEEDHUT 4-1/2" EV AEM 260KM/H SPEEDOMETER/ BATT LEVEL (FAE45-DS4-EV):
Combines critical EV driving data—speed and SOC—into one clear display.
Offers real-time, reliable data by communicating directly with the CAN-bus system.
Improves safety with an alert for low battery conditions.
Simplifies dashboard layout with optional turn signal and high beam indicators.
Reduces installation complexity with all required harnesses included.
Enhances the EV driving experience with intuitive, always-visible data presentation.
Displays speed up to 260 km/h and battery SOC from 0 to 100%.
Communicates with vehicle's ECU via 500K baud CAN-Bus for accuracy.
Low battery warning indicator activates below 15% SOC.
Standard 4 1/2 inch gauge face for high visibility.
Requires 4.230" (108mm) mounting hole.
Metric units used for speed measurement.
Supports optional 12V turn signal and high beam inputs.
Includes 3 ft power/lighting harness and dedicated EV CAN harnesses.
Product identification
- Brand: Speedhut
- Model / MPN: FAE45-DS4-EV
