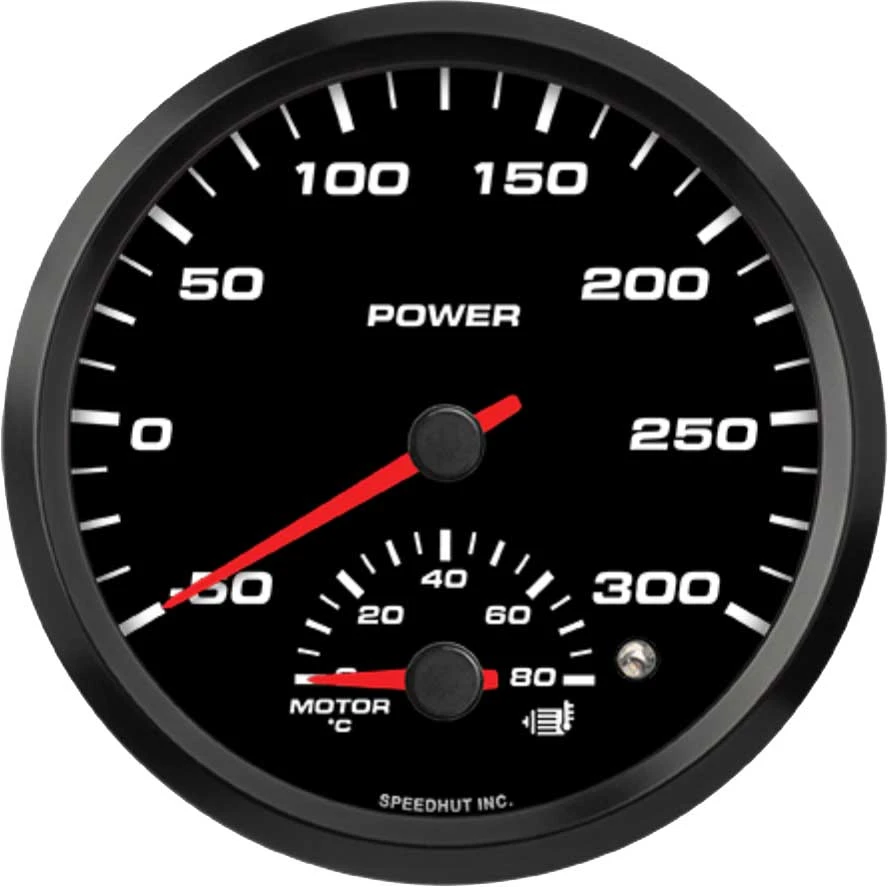

Speedhut 4-1/2" EV -50-300 Power/0-80C Motor Temp Gauge (FAE45-DG5-EV)
The Speedhut 4-1/2" EV -50-300 Power/0-80C Motor Temp Gauge (FAE45-DG5-EV) is a state-of-the-art instrument designed specifically for electric vehicles. This dual-function gauge provides real-time monitoring of two critical parameters: the electric motor's current draw (in Amps) and the battery temperature (in Celsius). Featuring seamless integration with your vehicle's CAN-Bus system (operating at a 500K baud rate), this gauge delivers precise and up-to-the-second data, allowing for informed management of your EV's power and battery health. For added safety, the gauge incorporates a built-in warning light that illuminates when the battery temperature exceeds 40°C, alerting you to potential overheating issues. With its straightforward installation process and clear display, this Speedhut gauge is an indispensable tool for any EV owner looking to optimize performance and ensure the longevity of their vehicle's vital components.
KEY FEATURES AND BENEFITS:
Dual Monitoring Capability: Simultaneously displays both the electric motor's current consumption/regeneration (-200 to 1200 Amps) and the battery temperature (0-50°C), providing a comprehensive overview of your EV's electrical system.
CAN-Bus Integration: Designed to connect directly to your vehicle's CAN-Bus network (500K baud rate), simplifying installation and ensuring accurate data acquisition from the vehicle's control systems.
Battery Overheat Warning: Features an integrated warning light that activates when the battery temperature rises above 40°C, providing a crucial visual alert to prevent potential damage and ensure safe operation.
Real-Time Data: Delivers immediate and precise readings, allowing you to monitor your EV's performance and battery status in real-time for optimal efficiency and awareness.
Easy Installation: Engineered for a relatively simple installation process, especially when utilizing the CAN-Bus connectivity, reducing the need for extensive wiring.
Enhanced EV Management: Provides the vital data needed for efficient electric vehicle power management and proactive battery care, contributing to the overall performance and lifespan of your EV.
Gauge Type: Dual (Ampere and Temperature)
Signal Type: CAN-Bus (500K baud rate)
Amp Range: -200 to 1200 Amps
Temperature Range: 0-50°C
Size: 4 1/2 inch
Hole Size: 4.230 inches (108mm)
Units: Metric (Celsius for Temperature)
Battery Temp Warning: Activates above 40°C
Included: 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks, EV CAN Harness, EV CAN Jumper Harness
Mount the Gauge: Securely install the 4-1/2" Speedhut EV Dual Gauge into a 4.230" (108mm) diameter opening in your vehicle's dashboard or instrument panel.
Connect the Power and Lighting Harness: Attach the provided 3 ft Power & Lighting Harness to the gauge, ensuring proper connections for power supply and LED illumination.
Connect the CAN-Bus Harness: Connect the EV CAN Harness to the designated CAN-Bus port in your electric vehicle. Ensure the baud rate of your vehicle's CAN-Bus system is 500K for proper communication.
Utilize the Jumper Harness (if needed): The EV CAN Jumper Harness can be used to facilitate connection within the CAN-Bus network if required by your vehicle's specific setup.
Monitor Readings: Once connected, the gauge will display real-time readings for both the Amp draw and the Battery Temperature. Observe these values to understand your EV's power consumption and battery status.
Heed the Warning Light: Pay attention to the Battery Temp warning light. If it illuminates, it indicates that the battery temperature has exceeded 40°C, suggesting a potential issue that may require attention.
BENEFITS OF USING THE SPEEDHUT 4-1/2" EV -50-300 POWER/0-80C MOTOR TEMP GAUGE (FAE45-DG5-EV):
Real-Time Data: Provides critical real-time data on your EV's power consumption and battery temperature, enabling you to optimize driving habits for efficiency and range.
Overheat Warning: Offers an early warning system for potential battery overheating, helping to prevent damage and prolong the life of your expensive battery pack.
Streamlined Monitoring: Simplifies monitoring of essential EV parameters with a single, easy-to-read gauge, reducing clutter and improving driver awareness.
Easy Integration: Seamlessly integrates with compatible EV systems via CAN-Bus, ensuring accurate and reliable data without the need for additional sensors in many cases.
Safer Operation: Contributes to safer EV operation by alerting you to potentially harmful battery temperatures.
Simultaneous display: Electric current flow (charge and discharge) and battery core temperature.
Direct data acquisition: Via CAN-Bus protocol at a 500K baud rate for streamlined operation.
Warning System: Integrated visual alert system for high battery temperature conditions (above 40°C).
Industry-standard size: 4-1/2 inch (114.3mm) gauge size for versatile mounting options.
Clear temperature display: Metric temperature readings for easy understanding.
Wiring harnesses: Included wiring harnesses designed specifically for EV CAN-Bus integration and gauge power/lighting.
Product identification
- Brand: Speedhut
- Model / MPN: FAE45-DG5-EV
