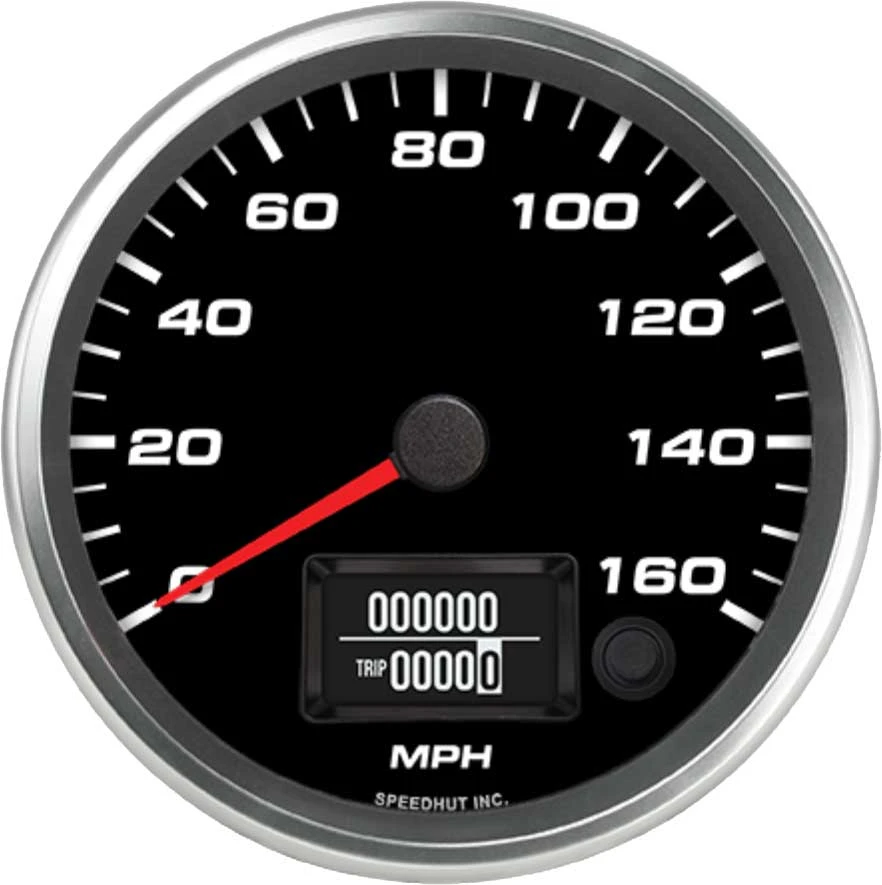

Speedhut 4-1/2" 160 mph GPS Speedometer (R45-S3-REV)
KEY FEATURES AND BENEFITS:
Accurate Speed Readings: Internal microprocessor ensures precise speed measurement.
Smooth Pointer Movement: High-torque stepper motor delivers consistent and reliable needle performance.
Universal Compatibility: Works with any electric vehicle speed sensor.
Easy Calibration: Simple setup to match gear ratios and tire sizes.
Customizable: Adjustable to accommodate different vehicle configurations.
Gauge Type: Speedometer
Speedometer Signal Type: Electric Programmable
Size: 4-1/2 inch
Hole Size: 4.20 inch (107mm)
Standard or Metric: Standard
Capacity: N/A (unit measures speed, not volume)
Included: 8 ft Programmable Speedometer Wire Harness (LED lit), 3 ft Power & Lighting Harness for LED Lit Gauges and Clocks
Step 1: Mount the Speedometer: Install the speedometer using the included slim case and spin-lock ring. Ensure the hole size is 4.20 inches (107mm).
Step 2: Connect Wiring: Attach the 8 ft programmable wire harness to the vehicle’s speed sensor. Connect the 3 ft power and lighting harness to a 12V power source and ground.
Step 3: Calibrate the Speedometer: Enter the programming mode and input the correct pulse per mile (PPM) value according to your vehicle’s gear ratio and tire size.
Step 4: Test the Gauge: Take a test drive to ensure accurate readings. Fine-tune the calibration if necessary.
BENEFITS OF USING SPEEDHUT 4-1/2" 160 MPH PROGRAMMABLE SPEEDOMETER (R45-S12-REV):
Precision Tracking: Calibrated speed readings ideal for performance monitoring.
Vehicle Versatility: Compatible with numerous vehicle setups and modifications.
User Empowerment: Simple configuration process allows for DIY installation and calibration.
Reliable in Harsh Conditions: Sealed casing for enhanced protection against weather.
Professional Aesthetics: High-grade aluminum bezel enhances the dashboard appearance.
Quick Installation: Slim case and spin-lock ring allow for easy mounting.
Durable Construction: Billet aluminum bezel adds strength and style.
Weather-Resistant Design: Engineered to withstand varying environmental conditions.
Made in the USA: Ensures high standards of manufacturing and quality.
Product identification
- Brand: Speedhut
- Model / MPN: R45-S3-REV
